Viking K-1205/EWP Product Manual

Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S
12 Button Apartment Entry Phone with
Built-In Door Strike Relay and Camera
The K-1205 Entry Phone is a two-way, handsfree
telephone with 12 buttons for calling individual
residences in an apartment building. It also has a
built-in color CCTV video camera. The rugged
stainless steel faceplate has a printed directory
housed in a waterproof, scratch-resistant lens.
Each button is beside the tenants name in the
directory so there are no confusing codes to deal
with. Calling a particular tenant is as easy as
pressing a single button. The K-1205 has a built in
speed dialer that can handle up to 12 primary
phone numbers, each with 22 digits. If there is no
answer at the first number, a second number can
be called automatically. Once the tenant answers
their phone, a single touch tone command can
activate the door strike relay. For "no phone line"
applications, the K-1205 is compatible with the C-
3000 no CO (phone line) controller. The high
resolution video camera is mounted on an
adjustable bracket so it can be positioned just right
to view the outside visitor.
The K-1205-EWP shares all of the features of the
K-1205 in addition to Enhanced Weather
Protection (EWP) for outdoor installations where
Features
• Vandal Resistant Features: 14 gauge louvered 316
stainless steel faceplate with permanent laser etched
graphics, heavy duty metal keypad and T-10 Torx
security screws.
• Weather Resistant Features: Marine grade 316
stainless steel faceplate and screws. Internally sealed
keypad. Mylar speaker. Self-draining mic mount.
Faceplate, keypad, mic and speaker gaskets.
• K-1205-EWP is designed to meet IP66 Ingress
Protection Rating (see DOD# 859 for more info)
• Built-in high resolution color video camera with wide
viewing angle, tilt/swivel adjustments and wide oper-
ating temperature of -30°F to 150°F
• Operates on 12 to 24 volts AC/DC
• 12 speed dial buttons (22 digits each)
• 12 alternate number positions (22 digits each)
• One button operation (no call button)
• Hang up on CPC, busy, silence, time-out or dial tone
• Touch tone restriction from microphone
• Integral relays for camera control and door strike
• Works with C-1000B for increased security
• Works with C-3000 for "No CO" (phone line) operation
• 50 keyless entry codes and postal lock input
PRODUCT MANUAL
the unit is exposed
condensation. EWP products feature foam rubber
gaskets and boots, sealed connections, gel-filled
butt connectors, as well as urethane or thermal
plastic potted circuit boards with internally sealed,
field-adjustable trim pots and DIP switches for easy
on-site programming.
Applications
• Small apartment buildings
• Professional buildings
• Gated communities
www.vikingelectronics.com
Information: (715) 386-8861
Specifications
Dimensions: 127mm x 254mm x 63.5mm (5" x 10" x 2.5")
Shipping weight: 2.5 kg (5.5 lbs.)
Standard K-1200 Environment: -34° C to 65° C (-30° F
to 150° F) with 5% to 95% non-condensing humidity
K-1200-EWP Environment: -34° C to 65° C (-30° F to
150° F) with up to 100% condensing humidity
Relay Contact Rating:
Door Strike: 5A @ 30VDC/250VAC Maximum
Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC
Connections: (13) gel-filled butt connectors (3M
Scotchlok UR2)
(See page 2 for complete specifications)
K-1205/EWP
Multi-Button Handsfree
Entry Phone with Camera
February 9, 2016

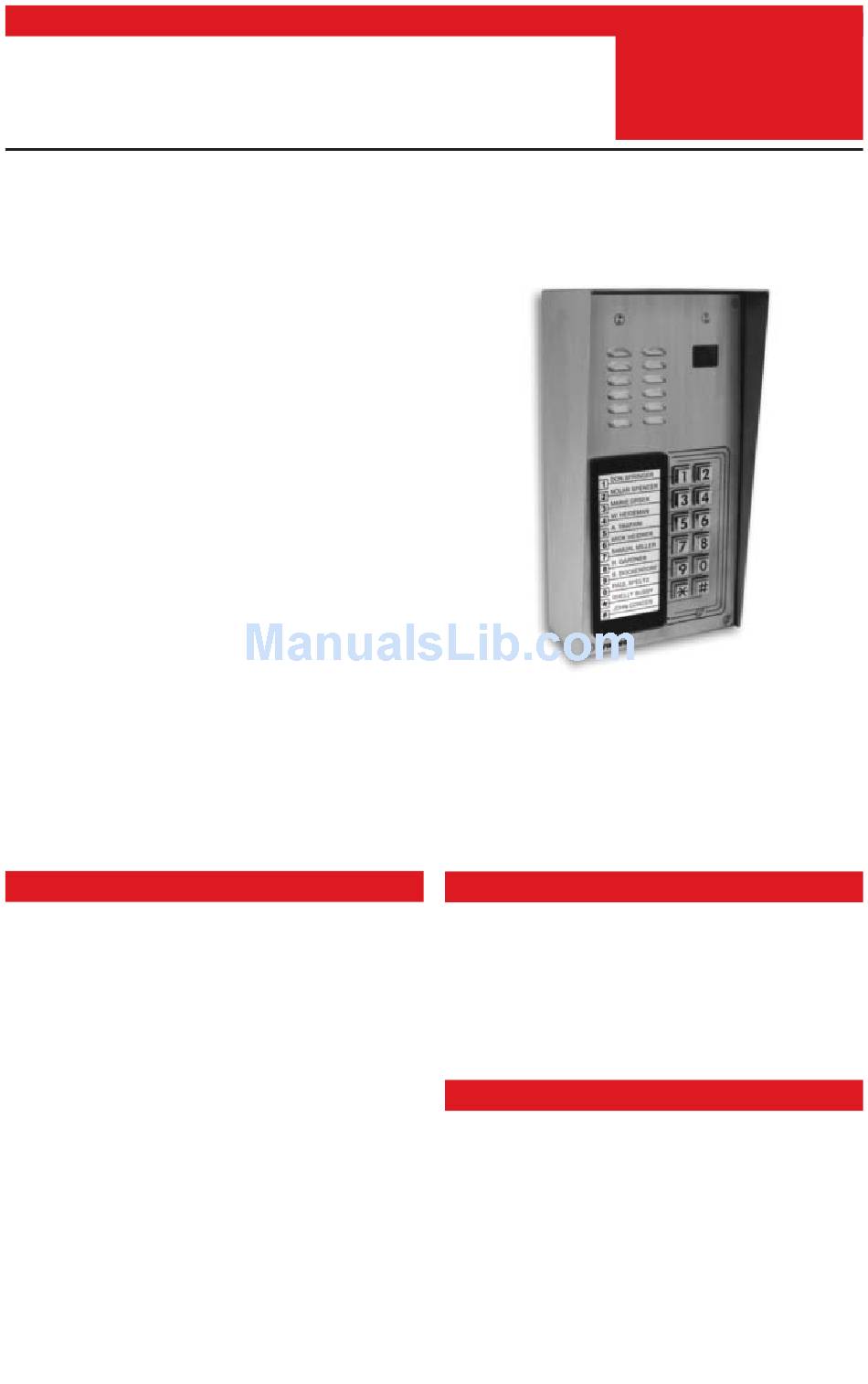

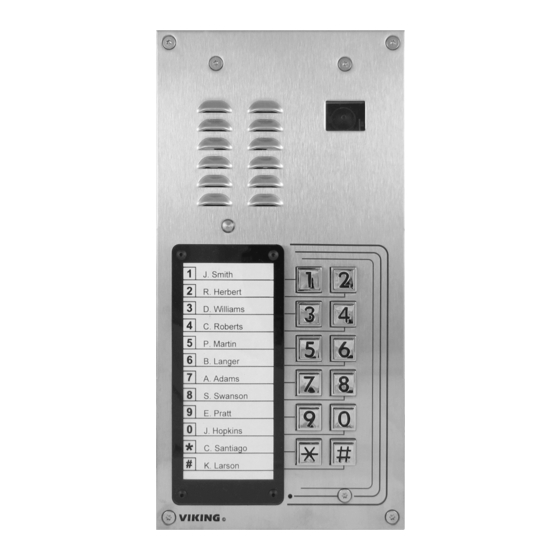

(shown in optional
VE-5x10-SS, not included)
to precipitation or
