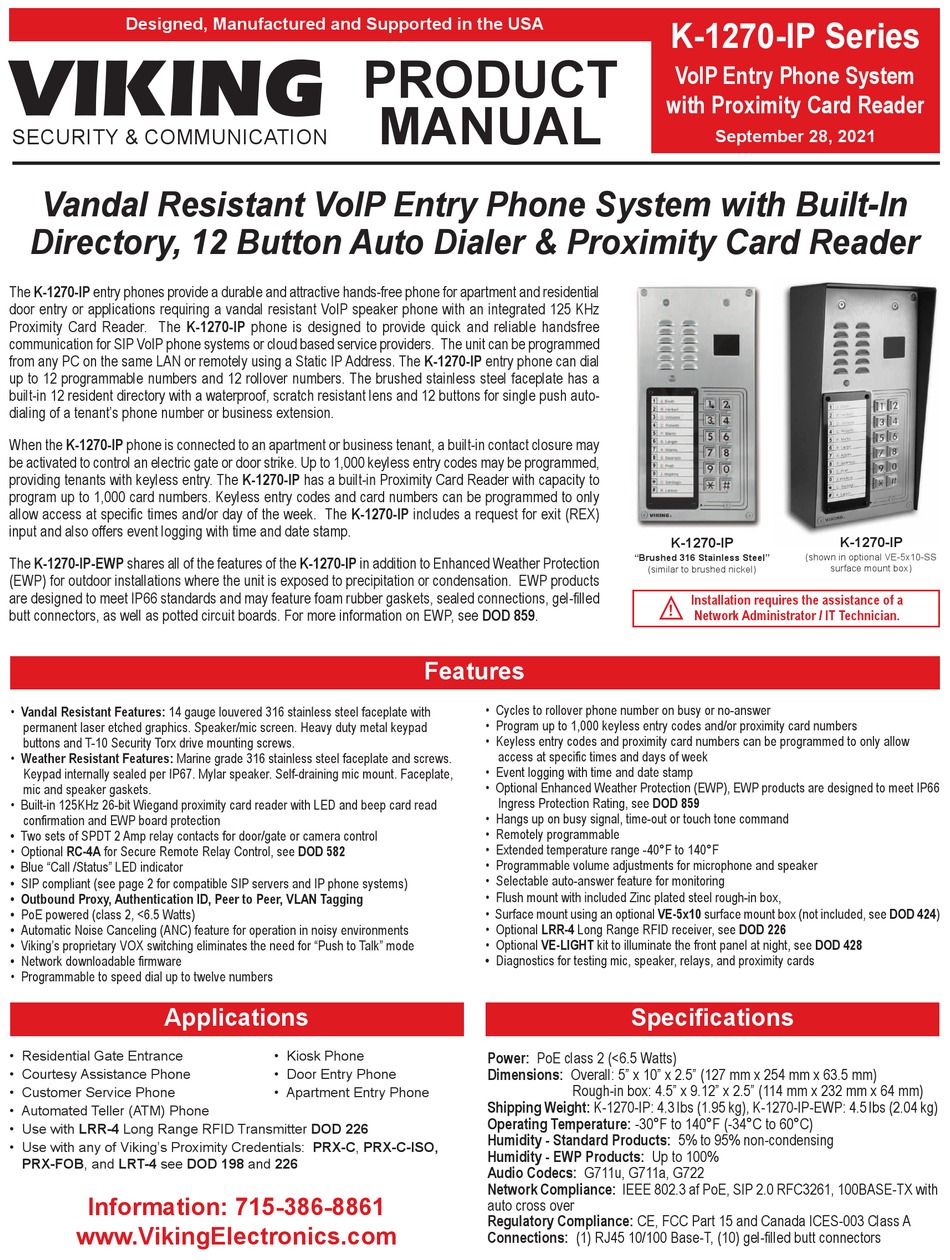

Designed, Manufactured and Supported in the USA
VIKING
SECURITY & COMMUNICATION
Vandal Resistant VoIP Entry Phone System with Built-In
Directory, 12 Button Auto Dialer & Proximity Card R eader
The K-1270-IP entry phones provide a durable and attractive hands-free phone for apartment and residential
door entry or applications requiring a vandal resistant VoIP speaker phone with an integrated 125 KHz
Proximity Card Reader. The K-1270-IP phone is designed to provide quick and reliable handsfree
communication for SIP VoIP phone systems or cloud based service providers. The unit can be programmed
from any PC on the same LAN or remotely using a Static IP Address. The K-1270-IP entry phone can dial
up to 12 programmable numbers and 12 rollover numbers. The brushed stainless steel faceplate has a
built-in 12 resident directory with a waterproof, scratch resistant lens and 12 buttons for single push auto-
dialing of a tenant's phone number or business extension.
When the K-1270-IP phone is connected to an apartment or business tenant, a built-in contact closure may
be activated to control an electric gate or door strike. Up to 1,000 keyless entry codes may be programmed,
providing tenants with keyless entry. The K-1270-IP has a built-in Proximity Card Reader with capacity to
program up to 1,000 card numbers. Keyless entry codes and card numbers can be programmed to only
allow access at specific times and/or day of the week. The K-1270-IP includes a request for exit (REX)
input and also offers event logging with time and date stamp.
The K-1270-IP-EWP shares all of the features of the K-1270-IP in addition to Enhanced Weather Protection
(EWP) for outdoor installations where the unit is exposed to precipitation or condensation. EWP products
are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled
butt connectors, as well as potted circuit boards. For more information on EWP, see DOD 859.
• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with
permanent laser etched graphics. Speaker/mic screen. Heavy duty metal keypad
buttons and T-10 Security Torx drive mounting screws.
• Weather Resistant Features: Marine grade 316 stainless steel faceplate and screws.
Keypad internally sealed per IP67. Mylar speaker. Self-draining mic mount. Faceplate,
mic and speaker gaskets.
• Built-in 125KHz 26-bit Wiegand proximity card reader with LED and beep card read
confirmation and EWP board protection
• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
• Optional RC-4A for Secure Remote Relay Control, see DOD 582
• Blue "Call /Status" LED indicator
• SIP compliant (see page 2 for compatible SIP servers and IP phone systems)
• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
• PoE powered (class 2, <6.5 Watts)
• Automatic Noise Canceling (ANC) feature for operation in noisy environments
• Viking's proprietary VOX switching eliminates the need for "Push to Talk" mode
• Network downloadable firmware
• Programmable to speed dial up to twelve numbers
Applications
• Residential Gate Entrance
• Courtesy Assistance Phone
• Customer Service Phone
• Automated Teller (ATM) Phone
• Use with LRR-4 Long Range RFID Transmitter DOD 226
• Use with any of Viking's Proximity Credentials: PRX-C, PRX-C-ISO,
PRX-FOB, and LRT-4 see DOD 198 and 226
Information: 715-386-8861
www.VikingElectronics.com
PRODUCT
MANUAL
Features
• Kiosk Phone
• Door Entry Phone
• Apartment Entry Phone
"Brushed 316 Stainless Steel"
(similar to brushed nickel)
• Cycles to rollover phone number on busy or no-answer
• Program up to 1,000 keyless entry codes and/or proximity card numbers
• Keyless entry codes and proximity card numbers can be programmed to only allow
access at specific times and days of week
• Event logging with time and date stamp
• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66
Ingress Protection Rating, see DOD 859
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Extended temperature range -40°F to 140°F
• Programmable volume adjustments for microphone and speaker
• Selectable auto-answer feature for monitoring
• Flush mount with included Zinc plated steel rough-in box,
• Surface mount using an optional VE-5x10 surface mount box (not included, see DOD 424)
• Optional LRR-4 Long Range RFID receiver, see DOD 226
• Optional VE-LIGHT kit to illuminate the front panel at night, see DOD 428
• Diagnostics for testing mic, speaker, relays, and proximity cards
Specifications
Power: PoE class 2 (<6.5 Watts)
Dimensions: Overall: 5" x 10" x 2.5" (127 mm x 254 mm x 63.5 mm)
Rough-in box: 4.5" x 9.12" x 2.5" (114 mm x 232 mm x 64 mm)
Shipping Weight: K-1270-IP: 4.3 lbs (1.95 kg), K-1270-IP-EWP: 4.5 lbs (2.04 kg)
Operating Temperature: -30°F to 140°F (-34°C to 60°C)
Humidity - Standard Products: 5% to 95% non-condensing
Humidity - EWP Products: Up to 100%
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with
auto cross over
Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
Connections: (1) RJ45 10/100 Base-T, (10) gel-filled butt connectors
K-1270-IP Series
VoIP Entry Phone System
with Proximity Card Reader
September 28, 2021

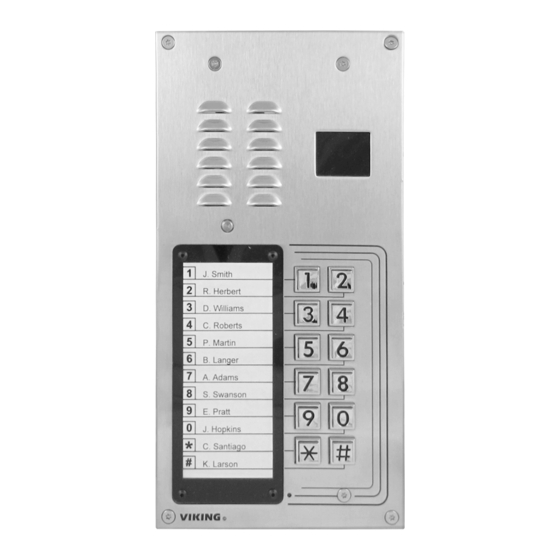

K-1270-IP
K-1270-IP
(shown in optional VE-5x10-SS
surface mount box)
Installation requires the assistance of a
!
Network Administrator / IT Technician.
