Viking K-1270 Series Product Manual

Designed, Manufactured and Supported in the USA
VIKING
S E C U R I T Y & C O M M U N I C A T I O N
12 Button Apartment Entry Phone with Built-In
Door Strike Relay and Proximity Card Reader
The K-1270 Entry Phone is a two-way, handsfree
telephone with 12 buttons for calling individual
residences in an apartment building with an
integrated 125 KHz Proximity Card Reader. The
rugged stainless steel faceplate has a printed
directory housed in a waterproof, scratch-resistant
lens. Each button is beside the tenants name in the
directory so there are no confusing codes to deal
with. Calling a particular tenant is as easy as
pressing a single button. The K-1270 has a built in
speed dialer that can handle up to 12 primary
phone numbers, each with 22 digits. If there is no
answer at the first number, a second number can
be called automatically. Once the tenant answers
their phone, a single touch tone command can
activate the door strike relay. For "no phone line"
applications, the K-1270 is compatible with the
C-3000 no CO (phone line) controller.
The K-1270-EWP shares all of the features of the
K-1270 in addition to Enhanced Weather
Protection (EWP) for outdoor installations where
the unit is exposed
condensation. EWP products feature foam rubber
Features
• Built-in 125KHz 26-bit Wiegand proximity card reader with LED,
beep card read confirmation, and EWP board protection
• Compatible with the following Viking Proximity Cards and Fobs:
PRX-C, PRX-C-ISO and PRX-FOB (DOD# 198)
• Vandal Resistant Features: 14 gauge louvered 316 stainless
steel faceplate with permanent laser etched graphics, heavy duty
metal keypad and T-10 Torx Security mounting screws.
• Weather Resistant Features: Marine grade 316 stainless steel
faceplate and screws. Internally sealed keypad. Mylar speaker.
Self-draining mic mount. Faceplate, keypad, mic and speaker
gaskets.
• Designed to meet IP66 Ingress Protection Rating (see DOD 859)
• Operates on 12 to 24 volts AC/DC
• 12 speed dial buttons (22 digits each)
• 12 alternate number positions (22 digits each)
• One button operation (no call button)
• Hang up on CPC, busy, silence, time-out or dial tone
• Touch tone restriction from microphone
• Integral relays for camera control and door strike
• Works with C-1000B for increased security
• Works with C-3000 for "No CO" (phone line) operation
• 50 keyless entry codes
• See model K-1205 for integral camera
• Postal lock input
• Optional VE-5x10 surface mount box, sold separately (DOD 424)
PRODUCT MANUAL
to precipitation
"Brushed 316 Stainless Steel"
(similar to brushed nickel)
gaskets and boots, sealed connections, gel-filled
butt connectors, as well as urethane or thermal
plastic potted circuit boards with internally sealed,
field-adjustable trim pots and DIP switches for easy
or
on-site programming.
• Small apartment buildings
• Professional buildings
• Gated communities
www.vikingelectronics.com
Information: (715) 386-8861
Power: 12 to 24 Volts AC or DC, 12VDC adapter provided
Proximity Card Reader Power: 5 to 14V DC @ 60mA maximum
Note: To assure operation during a power outage, a UPS
should be used.
Dimensions: 127mm x 254mm x 63.5mm (5" x 10" x 2.5")
Shipping weight: 2.2 kg (4.8 lbs.)
Standard K-1270 Environment: -34° C to 65° C (-30° F
to 150° F) with 5% to 95% non-condensing humidity
K-1270-EWP Environment: -34° C to 65° C (-30° F to
150° F) with up to 100% condensing humidity
Relay Contact Rating:
Door Strike: 5A @ 30VDC/250VAC maximum
Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC
Connections: (16) gel-filled butt connectors (3M
Scotchlok UR2)
K-1270 Series
Entry Phones with Keypads
and Proximity Card Readers

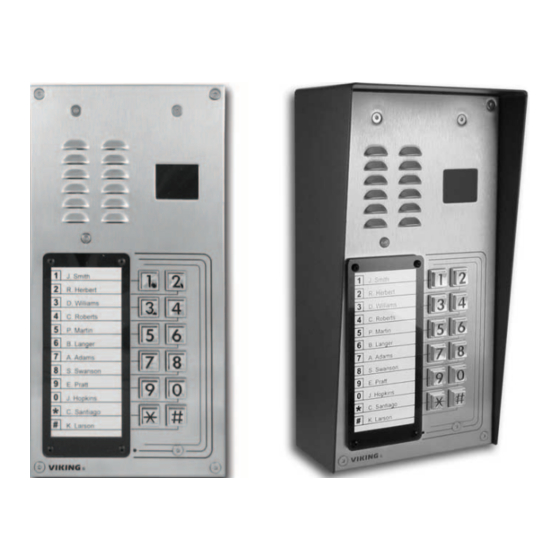

July 5, 2017
(shown in optional
VE-5x10-SS, not included)
Applications
Specifications
