Max CN665D Operating And Maintenance Manual

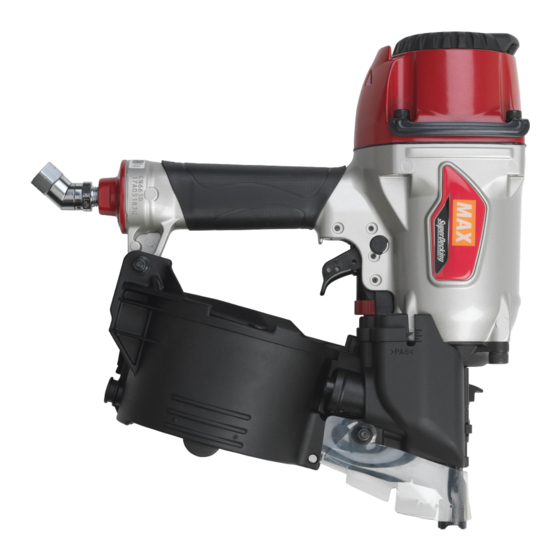

Pneumatic coil nailer
Hide thumbs

Advertisement

Quick Links

Download this manual
CN665D
PNEUMATIC COIL NAILER
DRUCKLUFT-COIL-NAGLER
CLOUEUSES PNEUMATIQUES
A BOBINES
SPARACHIODI AD ARIA COMPRESSA
CON CARICAMENTO A ROTOLO
CLAVADORAS NEUMATICAS PARA
ROLLOS DE CLAVOS
OPERATING and MAINTENANCE MANUAL
MANUEL D'UTILISATION et D'ENTRETIEN
MANUALE DI FUNZIONAMENTO E MANUTENZIONE
MANUAL DE OPERACIONES Y MANTENIMIENTO
WARNING:
ACHTUNG!
AVERTISSEMENT:
ATTENZIONE:
ATENCIÓN:
BETRIEBSANLEITUNG
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND
INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
LESEN SIE VOR INBETRIEBNAHME DES GERÄTES DIE GEBRAUCHS- UND SICHERHEITS-
HINWEISE. BITTE BEWAHREN SIE DIE GEBRAUCHS- UND SICHERHEITSHINWEISE AUF,
DAMIT SIE AUCH SPÄTER EINGESEHEN WERDEN KÖNNEN.
AVANT D'UTILISER CET OUTIL, LIRE CE MANUEL ET LES CONSIGNES DE SECURITE
AFIN DE GARANTIR UN FONCTIONNEMENT SUR.
CONSERVER CE MANUEL EN LIEU SUR AVEC L'OUTIL AFIN DE POUVOIR LE CONSULTER
ULTERIEUREMENT.
PRIMA DI USARE QUESTA MACCHINA, STUDIARE IL MANUALE PER PRENDERE ATTO
DEGLI AVVERTIMENTI E DELLE ISTRUZIONIPER LA SICUREZZA.
TENERE QUESTE ISTRUZIONI INSIEME ALLO STRUMENTO PER CONSULTAZIONI FUTURE
PARA EVITAR GRAVES DAÑOS PERSONALES O EN LA PROPIEDAD.
ANTES DE EMPLEAR LA HERRAMIENTA, LEER CON ATENCIÓN Y COMPRENDER LOS
SIGUIENTES INSTRUCCIONES DE SEGURIDAD.
Original Language English

Advertisement

loading
Need help?

Need help?

Do you have a question about the CN665D and is the answer not in the manual?

Questions and answers

Related Manuals for Max CN665D

Summary of Contents for Max CN665D

  • Page 1 CN665D PNEUMATIC COIL NAILER DRUCKLUFT-COIL-NAGLER CLOUEUSES PNEUMATIQUES A BOBINES SPARACHIODI AD ARIA COMPRESSA CON CARICAMENTO A ROTOLO CLAVADORAS NEUMATICAS PARA ROLLOS DE CLAVOS Original Language English OPERATING and MAINTENANCE MANUAL BETRIEBSANLEITUNG MANUEL D’UTILISATION et D’ENTRETIEN MANUALE DI FUNZIONAMENTO E MANUTENZIONE...
  • Page 2 INDEX INHALTSVERZEICHNIS INDEX INDICE INDICE ENGLISH Page 3 to 13 Page DEUTSCH Page 15 to 25 Page FRANÇAIS Page 27 to 37 Page ITALIANO Page 39 to 49 Page ESPAÑOL Page 51 to 61 Page DEFINITIONS OF SIGNAL WORDS WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 3: Table Of Contents

    ENGLISH CN665D PNEUMATIC COIL NAILER INDEX 1. SAFETY INSTRUCTIONS ……………4 2. SPECIFICATIONS & TECHNICAL DATA……………………7 3. AIR SUPPLY AND CONNECTIONS …8 4. INSTRUCTIONS FOR OPERATION …9 5. MAINTAIN FOR PERFORMANCE …13 6. STORING ……………………………13 7. TROUBLESHOOTING/REPAIRS……13 OPERATING and MAINTENANCE MANUAL...

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS WARNING: TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE BEFORE USING THE TOOL, READ CAREFULLY AND UNDERSTAND THE FOLLOWING “SAFETY INSTRUCTIONS”. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR SERIOUS INJURY. PRECAUTIONS ON USING THE TOOL WEAR SAFETY GLASSES OR GOGGLES Danger to the eyes always exists due to the possibility of dust being blown up by the exhausted air or of a fastener flying up due to the improper handling of the tool.
  • Page 5 INSPECT SCREW TIGHTNESS Loose or improperly installed screws or bolts cause accidents and tool damage when the tool is put into operation. Inspect to confirm that all screws and bolts are tight and properly installed prior to operating the tool. DO NOT TOUCH THE TRIGGER UNLESS YOU INTEND TO DRIVE A FASTENER Whenever the air supply is connected to the tool, never touch the trigger unless you intend to drive a fastener into the work.
  • Page 6 • Keep the tool in a dry place out of reach of children when not in use. • Do not use the tool without Safety Warning label. • Do not modify the tool from original design or function without approval by MAX CO., LTD.

  • Page 7: Specifications

    Grip i Exhaust Cover o Trigger Lock Dial !0 Swivel Joint 2. TOOL SPECIFICATIONS 3. FASTENER SPECIFICATIONS PRODUCT NO. CN665D PRODUCT NO. CN665D HEIGHT 12-5/8˝ (321 mm) NAIL LENGTH 1-1/2˝ to 2-1/2˝ (38 to 65 mm) .092˝ to .131˝ (φ2.3 to φ3.3 mm) WIDTH 5˝...

  • Page 8: Air Supply And Connections

    Air compressor Air filter Oiler HOSES: Hose has a min. ID of 1/4˝ (6 mm) and max. length of no more than 17´ (5 Air hose meters). The supply hose should contain a fitting that will provide “quick disconnecting” from the male plug on the tool.

  • Page 9: Instructions For Operation

    4. INSTRUCTIONS FOR OPERATION Read section titled “SAFETY INSTRUCTIONS”. BEFORE OPERATION q Wear Safety Glasses or Goggles. w Do not connect the air supply. e Inspect screw tightness. r Check operation of the contact arm & trigger if moving smoothly. t Connect the air supply.
  • Page 10 e Nail loading: Nail Place a coil of nails over the post in the magazine. Uncoil enough nails to reach the feed pawl, and place the second nail between the teeth on the feed pawl. The nail heads fit in slot on nose. Feed pawl r Swing cover closed.
  • Page 11 SEQUENTIAL TRIP The Sequential Trip requires the operator to hold the tool against the work before pulling the trigger. This makes accurate fastener placement easier, for instance on framing, toe nailing and crating applications. The Sequential Trip allows exact fastener location without the possibility of driving a second fastener on recoil, as described under “Contact Trip”.
  • Page 12 DRIVING DEPTH ADJUSTMENT DIAL WARNING: ALWAYS disconnect air supply before adjustment dial. Adjustment dial q With air pressure set, drive nails into a representative material sample to determine if adjustment is necessary. w If adjustment is required, disconnect air supply. Deeper Shallow e Refer to the mark on the contact arm for direction to turn the adjustment dial.

  • Page 13: Maintain For Performance

    All quality tools will eventually require servicing or replacement of parts because of wear from the normal use. 7. TROUBLE SHOOTING/REPAIRS The troubleshooting and/or repairs shall be carried out only by the MAX CO., LTD. authorised distributors or by other specialists. Supplement to the operating instruction According to the European Norm EN 792-13 the regulation is valid from 01.01.2001 that all fastener...
  • Page 14 • El contenido de este manual puede ser cambiado sin noticia previa para mejoramiento. 〔 〕 6-6 NIHONBASHI-HAKOZAKI-CHO, CHUO-KU, TOKYO, JAPAN Tel: (03) 3669-8131 Telefax: (03) 3669-7104 www.maxusacorp.com (USA Site) 4101090 wis.max-ltd.co.jp/int/ (GLOBAL Site) 171102-00/01 PRINTED IN JAPAN GEDRUCKT IN JAPAN IMPRIMÉ AU JAPON STAMPATO IN GIAPPONE IMPRESO EN JAPÓN...
