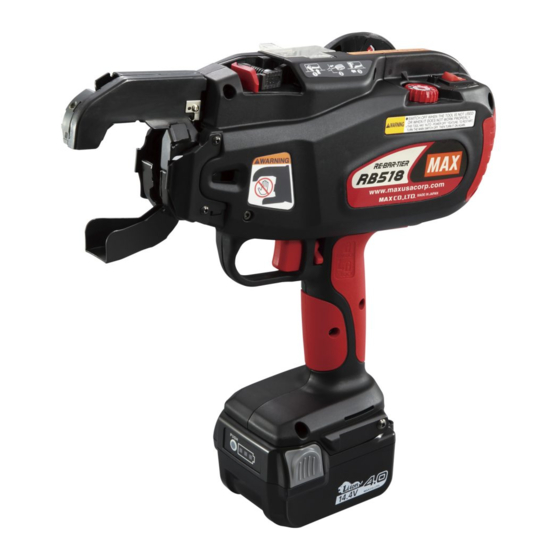

- Page 1 RB518 RB398 RB218 (CE) (CE) (CE) RE-BAR TYING TOOL RB518 RB398 RB218 OPERATING AND MAINTENANCE MANUAL BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. WARNING...
- Page 2 3. SPECIFICATIONS AND TECHNICAL DATA 1. NAME OF PARTS Torque and wrap dial (RB518) Reel stopper Torque dial (RB398) Window Feed dial (RB218) Release lever Release stopper Main switch Production number Reel holder Tie-Wire Trigger lock Curl guide Trigger Grip...
- Page 3 Approx. 2,600 ties CHARGE (4 Wraps/tie)Approx. 2,200 ties MODEL RB218 TIE WIRE TW898 TW898-EG DIAMETER 0.8mm 0.8mm TIES PER COIL Approx. 170-210 ties Approx. 155-190 ties TIES PER CHARGE Approx. 3,000 ties BATTERY CHARGER: Use only an authorized Battery charger, MAX JC925.
- Page 4 6. APPLICABLE BAR SIZES Minimum Maximum 16mm × 16mm (#5 × #5) 22mm × 25mm (#7 × #8) RB518 10mm × 10mm (#3 × #3) 16mm × 19mm (#5 × #6) RB398 Mesh × Mesh 10mm × 10mm (#3 × #3)
