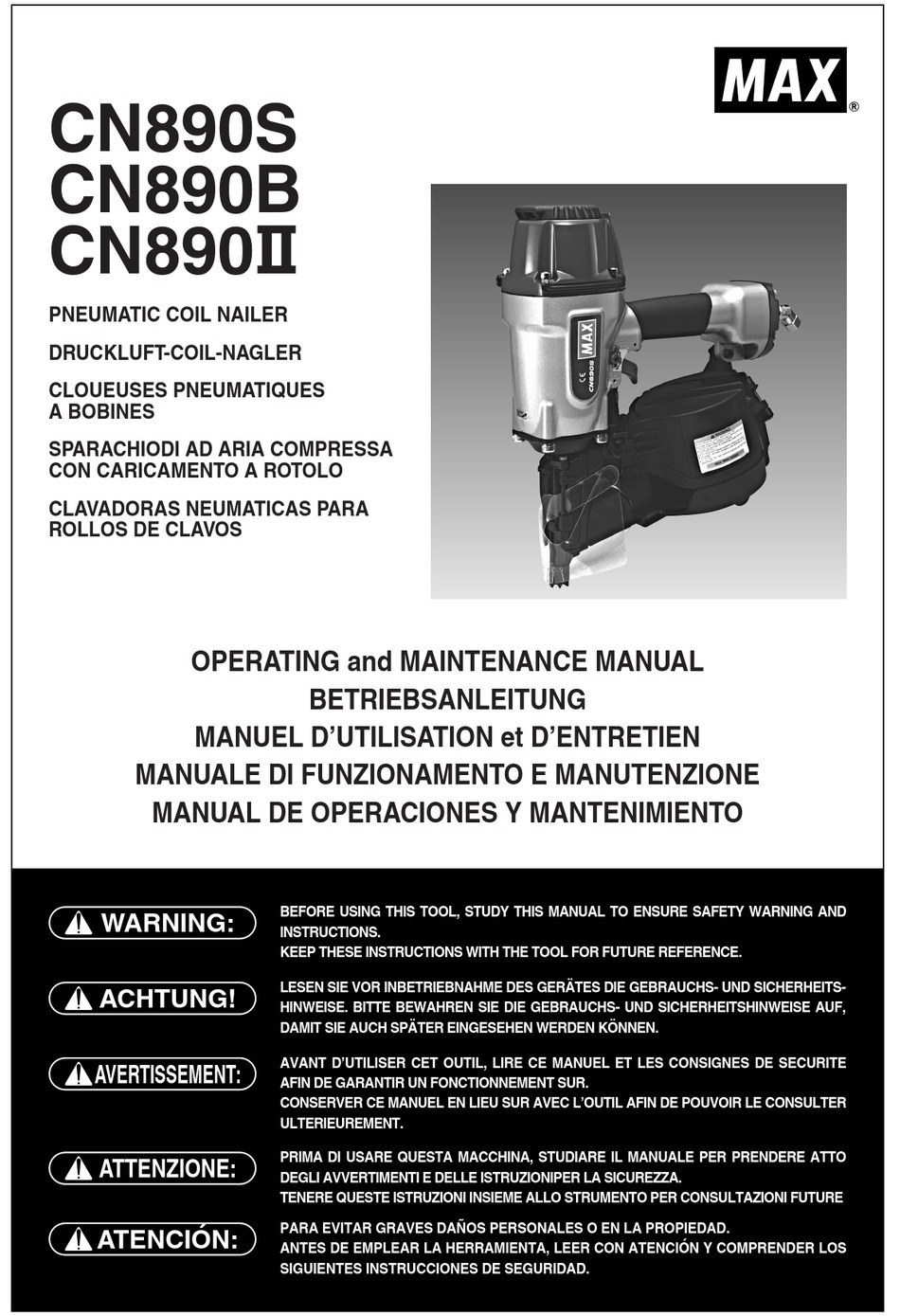

CN890S
CN890B
CN890
PNEUMATIC COIL NAILER
DRUCKLUFT-COIL-NAGLER
CLOUEUSES PNEUMATIQUES
A BOBINES
SPARACHIODI AD ARIA COMPRESSA
CON CARICAMENTO A ROTOLO
CLAVADORAS NEUMATICAS PARA
ROLLOS DE CLAVOS
OPERATING and MAINTENANCE MANUAL
MANUEL D'UTILISATION et D'ENTRETIEN
MANUALE DI FUNZIONAMENTO E MANUTENZIONE
MANUAL DE OPERACIONES Y MANTENIMIENTO
WARNING:
ACHTUNG!
AVERTISSEMENT:
ATTENZIONE:
ATENCIÓN:
Ⅱ
BETRIEBSANLEITUNG
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND
INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
LESEN SIE VOR INBETRIEBNAHME DES GERÄTES DIE GEBRAUCHS- UND SICHERHEITS-
HINWEISE. BITTE BEWAHREN SIE DIE GEBRAUCHS- UND SICHERHEITSHINWEISE AUF,
DAMIT SIE AUCH SPÄTER EINGESEHEN WERDEN KÖNNEN.
AVANT D'UTILISER CET OUTIL, LIRE CE MANUEL ET LES CONSIGNES DE SECURITE
AFIN DE GARANTIR UN FONCTIONNEMENT SUR.
CONSERVER CE MANUEL EN LIEU SUR AVEC L'OUTIL AFIN DE POUVOIR LE CONSULTER
ULTERIEUREMENT.
PRIMA DI USARE QUESTA MACCHINA, STUDIARE IL MANUALE PER PRENDERE ATTO
DEGLI AVVERTIMENTI E DELLE ISTRUZIONIPER LA SICUREZZA.
TENERE QUESTE ISTRUZIONI INSIEME ALLO STRUMENTO PER CONSULTAZIONI FUTURE
PARA EVITAR GRAVES DAÑOS PERSONALES O EN LA PROPIEDAD.
ANTES DE EMPLEAR LA HERRAMIENTA, LEER CON ATENCIÓN Y COMPRENDER LOS
SIGUIENTES INSTRUCCIONES DE SEGURIDAD.
Advertisement
Related Manuals for Max CN890B
Summary of Contents for Max CN890B
- Page 1 CN890S CN890B CN890 Ⅱ PNEUMATIC COIL NAILER DRUCKLUFT-COIL-NAGLER CLOUEUSES PNEUMATIQUES A BOBINES SPARACHIODI AD ARIA COMPRESSA CON CARICAMENTO A ROTOLO CLAVADORAS NEUMATICAS PARA ROLLOS DE CLAVOS OPERATING and MAINTENANCE MANUAL BETRIEBSANLEITUNG MANUEL D’UTILISATION et D’ENTRETIEN MANUALE DI FUNZIONAMENTO E MANUTENZIONE...
- Page 2 INDEX INHALTSVERZEICHNIS INDEX INDICE INDICE ENGLISH Page 3 to 14 Page DEUTSCH Page 15 to 26 Page FRANÇAIS Page 27 to 38 Page ITALIANO Page 39 to 50 Page ESPAÑOL Page 51 to 62 Page DEFINITIONS OF SIGNAL WORDS WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
-
Page 3: Table Of Contents
ENGLISH CN890S/CN890B/CN890 Ⅱ PNEUMATIC COIL NAILER INDEX 1. SAFETY INSTRUCTIONS ……………4 2. SPECIFICATIONS & TECHNICAL DATA……………………7 3. AIR SUPPLY AND CONNECTIONS …9 4. INSTRUCTIONS FOR OPERATION …10 5. MAINTAIN FOR PERFORMANCE …14 6. STORING ……………………………14 7. TROUBLESHOOTING/REPAIRS……14 OPERATING and MAINTENANCE MANUAL... -
Page 4: Safety Instructions
Ⅱ bar.) CN890B is designed to operate within an air pressure range of 85 to 100 p.s.i. (6 to 7 bar.) The pressure should be adjusted to the type of the work being fastened. The tool shall never be CN890B operated when the operating pressure exceeds 120 p.s.i. - Page 5 INSPECT SCREW TIGHTNESS Loose or improperly installed screws or bolts cause accidents and tool damage when the tool is put into operation. Inspect to confirm that all screws and bolts are tight and properly installed prior to operating the tool. DO NOT TOUCH THE TRIGGER UNLESS YOU INTEND TO DRIVE A FASTENER Whenever the air supply is connected to the tool, never touch the trigger unless you intend to drive a fastener into the work.
- Page 6 • Keep the tool in a dry place out of reach of children when not in use. • Do not use the tool without Safety Warning label. • Do not modify the tool from original design or function without approval by MAX CO., LTD.
-
Page 7: Specifications & Technical Data
RECOMMENDED OPERATING PRESSURE: CN890S and CN890 : 70 to 100 p.s.i. (5 to 7 bar), CN890B: 85 to 100 p.s.i. (6 to 7 bar). Select the operating air pressure within Ⅱ this range for best fastener performance. DO NOT EXCEED 120 p.s.i. (8 bar). - Page 8 4. TECHNICAL DATA q NOISE PRODUCT NO. CN890S CN890B CN890 Ⅱ A-weighted single-event ------ LWA, 1s, d 93.68 dB 100.77 dB 100.77 dB sound power level A-weighted single-event ------ LpA, 1s, d emission sound pressure 84.88 dB 92.22 dB 92.22 dB level at work station These values are determined and documented in accordance to EN12549 : 1999.
-
Page 9: Air Supply And Connections
Ⅱ CN890Ⅱ CN890B is designed to operate within an air pressure range of 85 to 100 p.s.i. (6 to 7 bar.) The pressure should be adjusted to the type of the work being fastened. The tool should never be operated when the operating pressure exceeds 120 p.s.i. (8 bar.) -
Page 10: Instructions For Operation
4. INSTRUCTIONS FOR OPERATION Read section titled “SAFETY INSTRUCTIONS”. BEFORE OPERATION q Wear Safety Glasses or Goggles. w Do not connect the air supply. e Inspect screw tightness. r Check operation of the contact arm & trigger if moving smoothly. t Connect the air supply. - Page 11 e Nail loading: Place a coil of nails over the post in the magazine. Uncoil enough nails to reach the feed pawl, and place the second nail between the teeth on the feed pawl. The nail Nail heads fit in slot on nose. Feed pawl r Swing cover closed.
- Page 12 SINGLE FIRE OPERATION (ANTI-DOUBLE FIRE MECHANISM) For single fire operation, depress the contact arm against the work surface and pull the trigger. Tool can not fire a second nail until the trigger is released and tool can cycle. PROCEDURE q Depress the contact arm. w Pull the trigger.
- Page 13 DRIVING DEPTH ADJUSTMENT DIAL WARNING: ALWAYS disconnect air supply before adjustment dial. Adjustment dial q With air pressure set, drive nails into a representative material sample to determine if adjustment is necessary. w If adjustment is required, disconnect air supply. Deeper Shallow e Refer to the mark on the contact arm for direction to turn the adjustment dial.
-
Page 14: Maintain For Performance
All quality tools will eventually require servicing or replacement of parts because of wear from the normal use. 7. TROUBLE SHOOTING/REPAIRS The troubleshooting and/or repairs shall be carried out only by the MAX CO., LTD. authorised distributors or by other specialists. Supplement to the operating instruction According to the European Norm EN 792-13 the regulation is valid from 01.01.2001 that all fastener... - Page 15 • El contenido de este manual puede ser cambiado sin noticia previa para mejoramiento. 〔 〕 6-6 NIHONBASHI-HAKOZAKI-CHO, CHUO-KU, TOKYO, JAPAN Tel: (03) 3669-8131 Telefax: (03) 3669-7104 http://www.maxusacorp.com (USA Site) http://www.max-ltd.co.jp/int/ (GLOBAL Site) PRINTED IN JAPAN GEDRUCKT IN JAPAN IMPRIMÉ AU JAPON STAMPATO IN GIAPPONE IMPRESO EN JAPÓN...
