POWERLOCK BOX

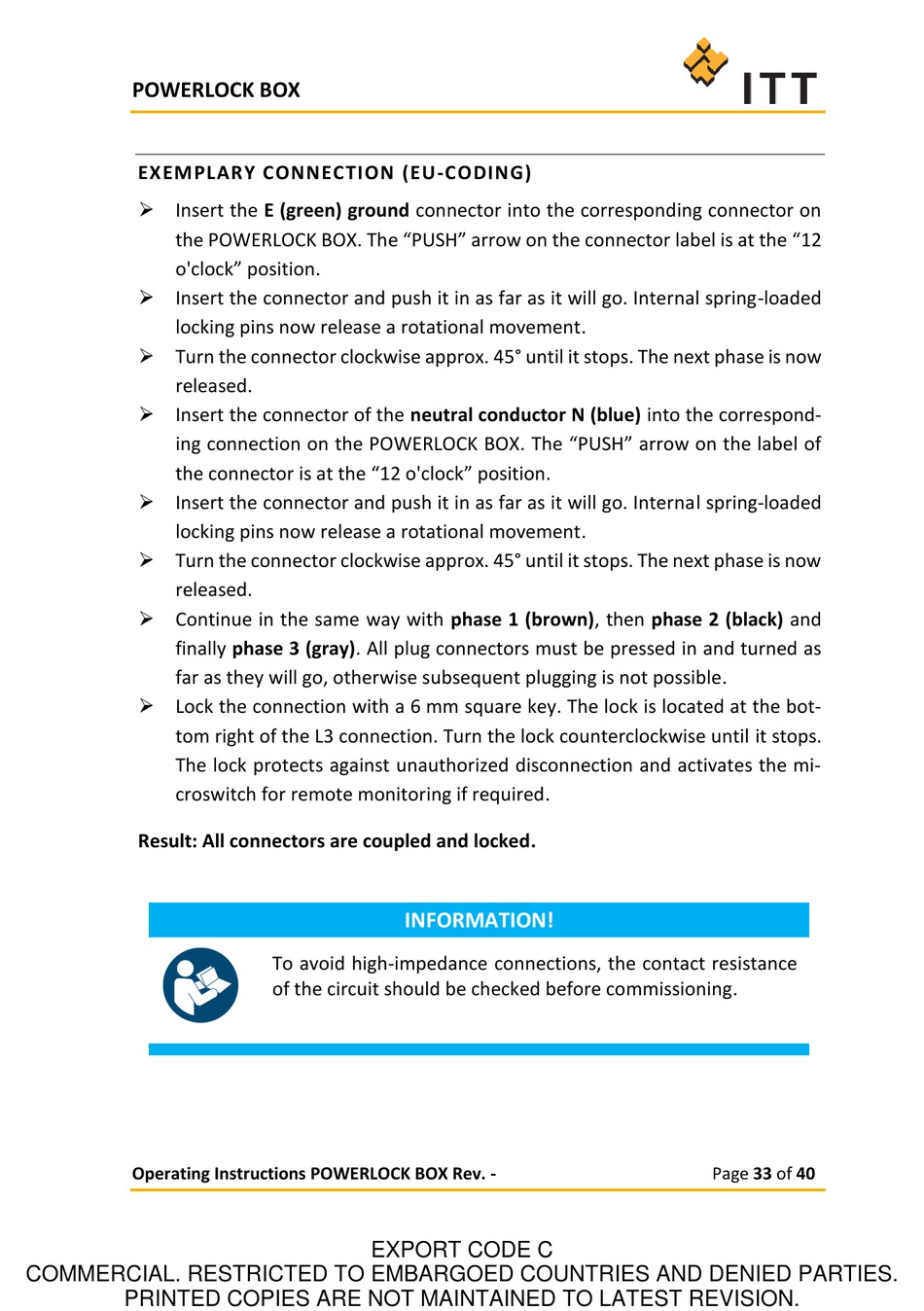

EXEMPLARY CONNECTION (EU-CODING)

 Insert the E (green) ground connector into the corresponding connector on
the POWERLOCK BOX. The "PUSH" arrow on the connector label is at the "12
o'clock" position.
 Insert the connector and push it in as far as it will go. Internal spring-loaded
locking pins now release a rotational movement.
 Turn the connector clockwise approx. 45° until it stops. The next phase is now
released.
 Insert the connector of the neutral conductor N (blue) into the correspond-
ing connection on the POWERLOCK BOX. The "PUSH" arrow on the label of
the connector is at the "12 o'clock" position.
 Insert the connector and push it in as far as it will go. Internal spring-loaded
locking pins now release a rotational movement.
 Turn the connector clockwise approx. 45° until it stops. The next phase is now
released.
 Continue in the same way with phase 1 (brown), then phase 2 (black) and
finally phase 3 (gray). All plug connectors must be pressed in and turned as
far as they will go, otherwise subsequent plugging is not possible.
 Lock the connection with a 6 mm square key. The lock is located at the bot-
tom right of the L3 connection. Turn the lock counterclockwise until it stops.
The lock protects against unauthorized disconnection and activates the mi-
croswitch for remote monitoring if required.
Result: All connectors are coupled and locked.
Operating Instructions POWERLOCK BOX Rev. -
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.
INFORMATION!
To avoid high-impedance connections, the contact resistance
of the circuit should be checked before commissioning.
