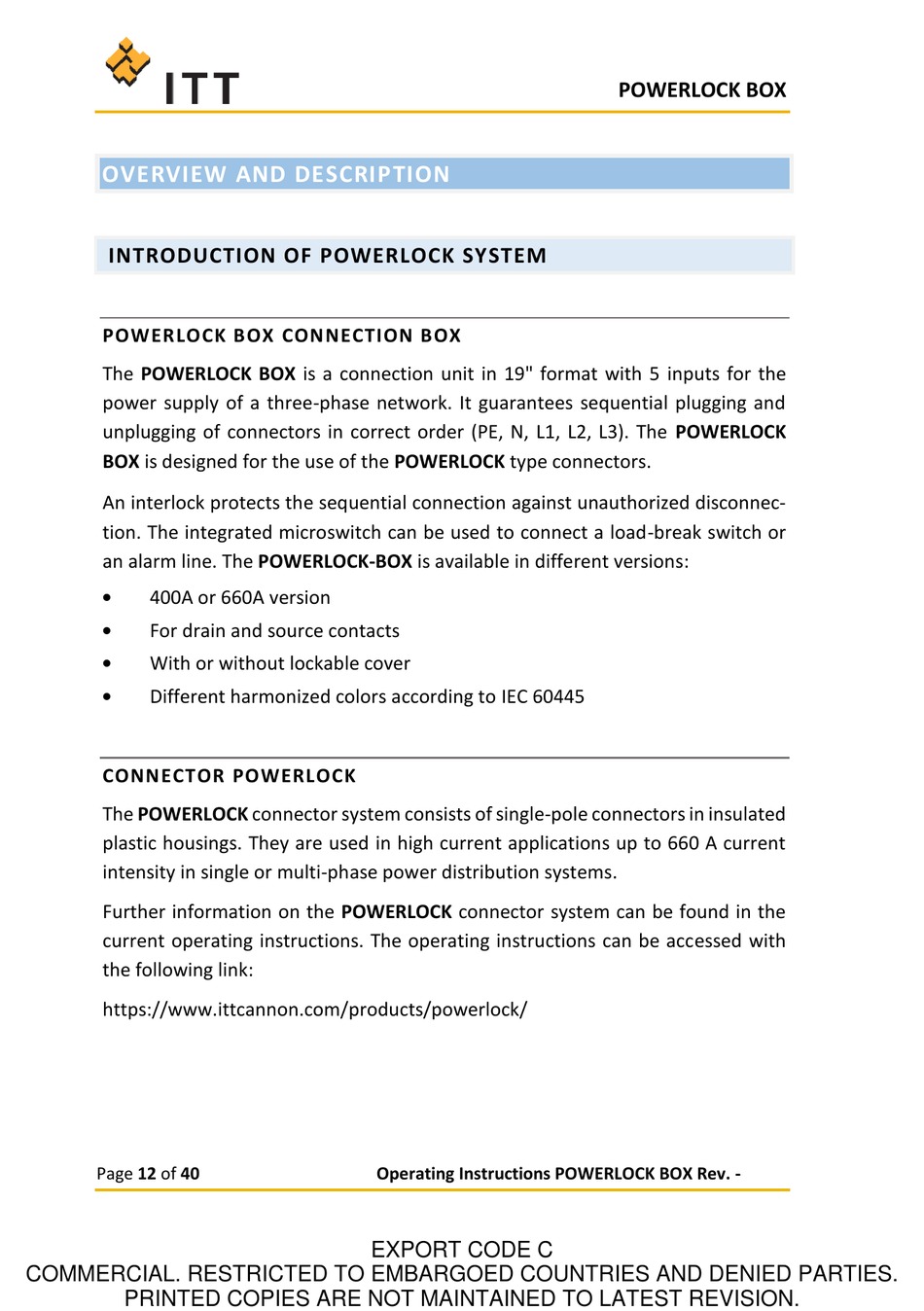

OVERVIEW AND DESCRIPTION

INTRODUCTION OF POWERLOCK SYSTEM

POWERLOCK BOX CONNECTION BOX

The POWERLOCK BOX is a connection unit in 19" format with 5 inputs for the
power supply of a three-phase network. It guarantees sequential plugging and
unplugging of connectors in correct order (PE, N, L1, L2, L3). The POWERLOCK
BOX is designed for the use of the POWERLOCK type connectors.
An interlock protects the sequential connection against unauthorized disconnec-
tion. The integrated microswitch can be used to connect a load-break switch or
an alarm line. The POWERLOCK-BOX is available in different versions:
400A or 660A version
For drain and source contacts
With or without lockable cover
Different harmonized colors according to IEC 60445

CONNECTOR POWERLOCK

The POWERLOCK connector system consists of single-pole connectors in insulated
plastic housings. They are used in high current applications up to 660 A current
intensity in single or multi-phase power distribution systems.
Further information on the POWERLOCK connector system can be found in the
current operating instructions. The operating instructions can be accessed with
the following link:
https://www.ittcannon.com/products/powerlock/
