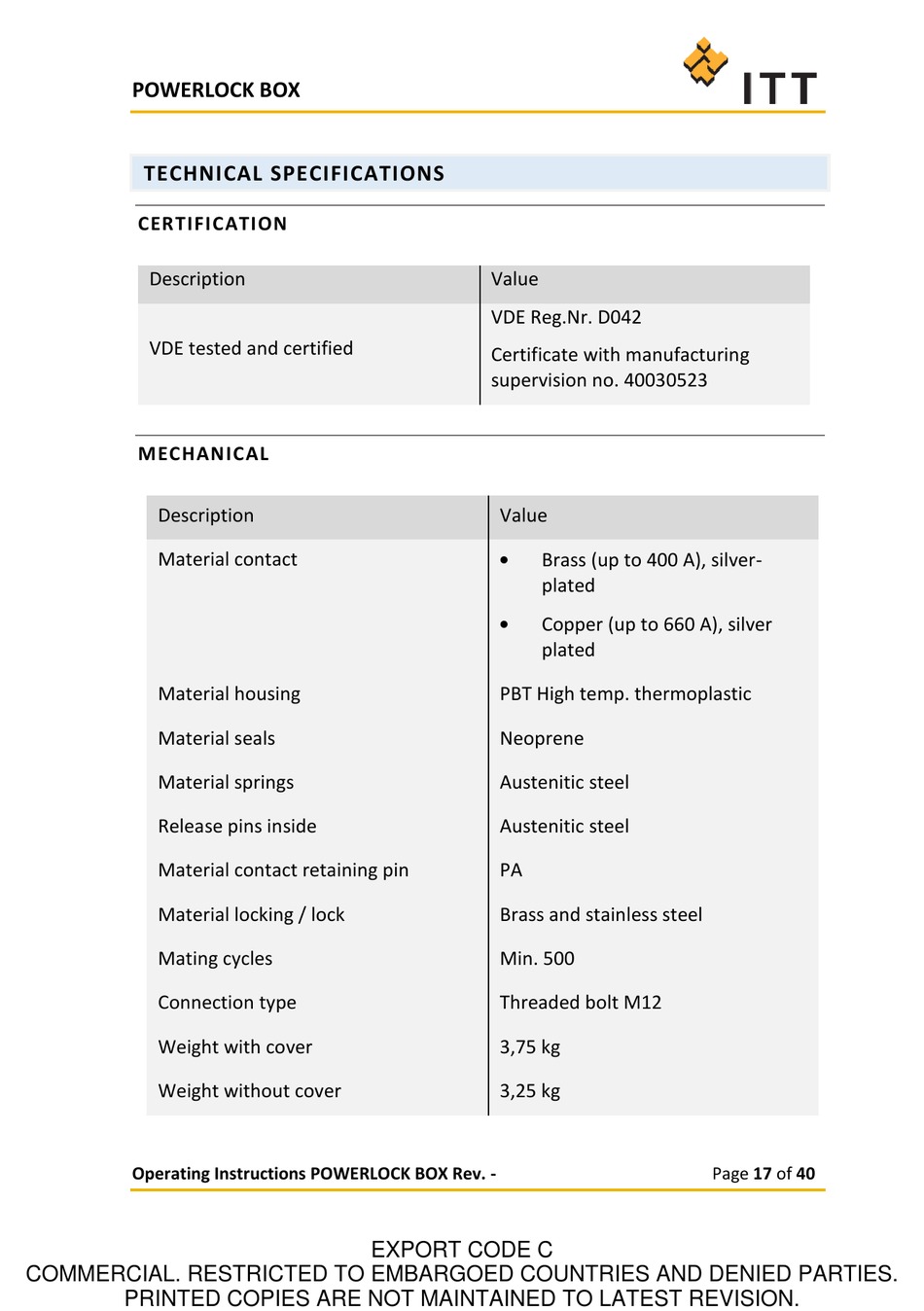

Technical Specifications; Certification; Mechanical - ITT POWERLOCK BOX Translation Of The Original Operating Instructions

POWERLOCK BOX

TECHNICAL SPECIFICATIONS

CERTIFICATION

Description
VDE tested and certified

MECHANICAL

Description
Material contact
Material housing
Material seals
Material springs
Release pins inside
Material contact retaining pin
Material locking / lock
Mating cycles
Connection type
Weight with cover
Weight without cover
Operating Instructions POWERLOCK BOX Rev. -
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.
Value
VDE Reg.Nr. D042
Certificate with manufacturing
supervision no. 40030523
Value

Brass (up to 400 A), silver-
plated

Copper (up to 660 A), silver
plated
PBT High temp. thermoplastic
Neoprene
Austenitic steel
Austenitic steel
PA
Brass and stainless steel
Min. 500
Threaded bolt M12
3,75 kg
3,25 kg
EXPORT CODE C
Page 17 of 40
