PART NUMBER BREAKDOWN

Product
Contact Type
Description
PS
Power Source
PBX
PD
Power Drain
Part number example: PBX-PD-SL-US-400 is a 400 amp unit with drain contacts and lid,
colour coded for the USA
COLOUR CODING
Region
Europe
United States
Australia

UN-PACKING

Ensure the unit is up the correct way before un-packing. The carton and its packing are
recyclable and should be disposed of according to national or local authority guidelines.
POWERLOCK BOX
OPERATION AND MAINTAINENCE GUIDE
Box Type
SL
Sealed Lid
SLF
Sealed lid
With flange
NL
No Lid
NLF
No lid
With flange
Earth
Neutral
Region Colour Code
EU –
European
US
– United States
AU
– Australia
L1
L2
BBAI 1328 Issue E
BAS10642
05/02/2013
Maximum Current
Rating
400
660
L3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERLOCK BOX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ITT POWERLOCK BOX

Summary of Contents for ITT POWERLOCK BOX

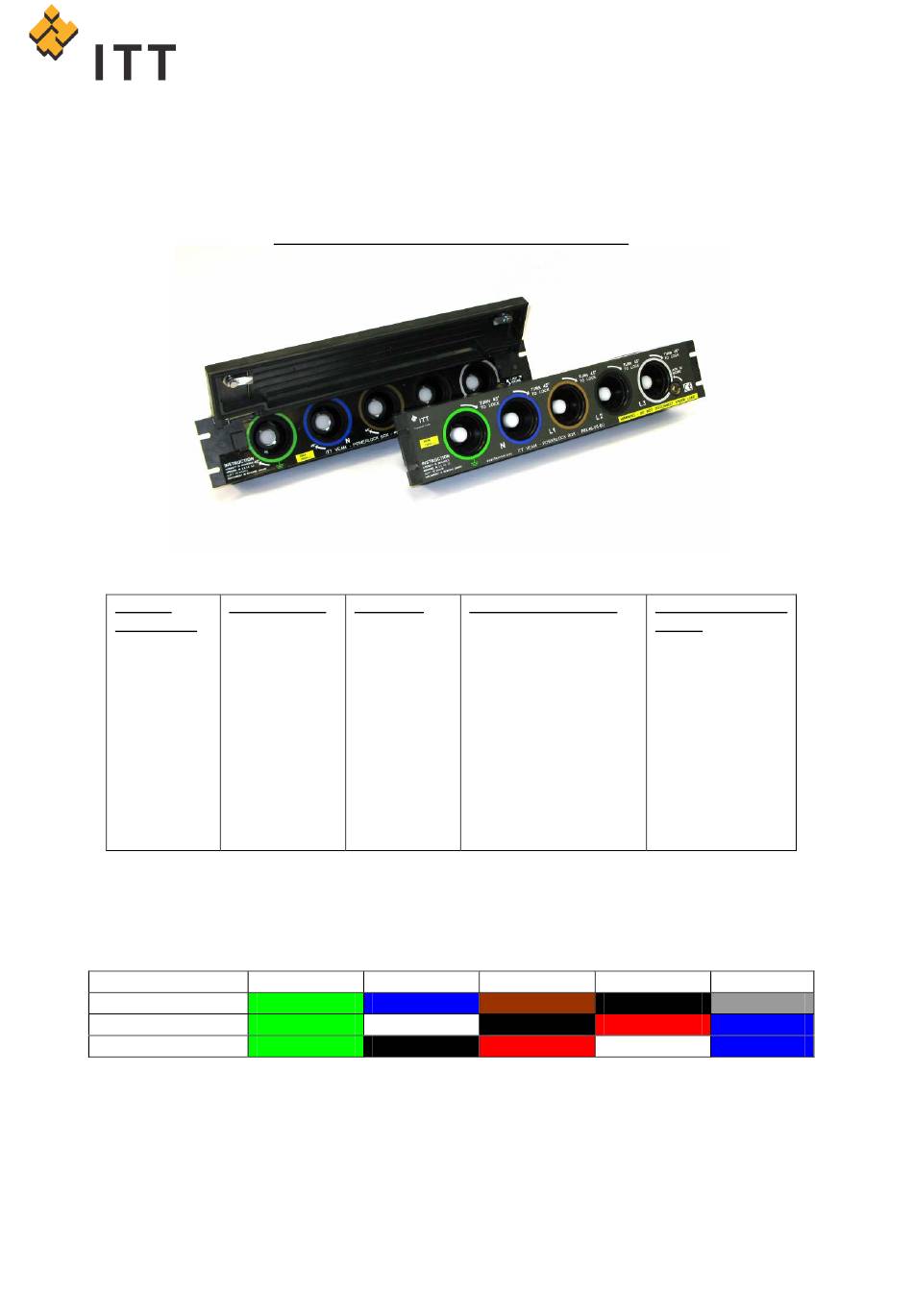

  • Page 1 BBAI 1328 Issue E BAS10642 05/02/2013 POWERLOCK BOX OPERATION AND MAINTAINENCE GUIDE PART NUMBER BREAKDOWN Product Contact Type Box Type Region Colour Code Maximum Current Description Rating EU – European Power Source Sealed Lid – United States Sealed lid Power Drain With flange –...
