POWERLOCK BOX

CONNECTION FOR REMOTE MONITORING

TRIDENT CONNECTOR ASSEMBLY

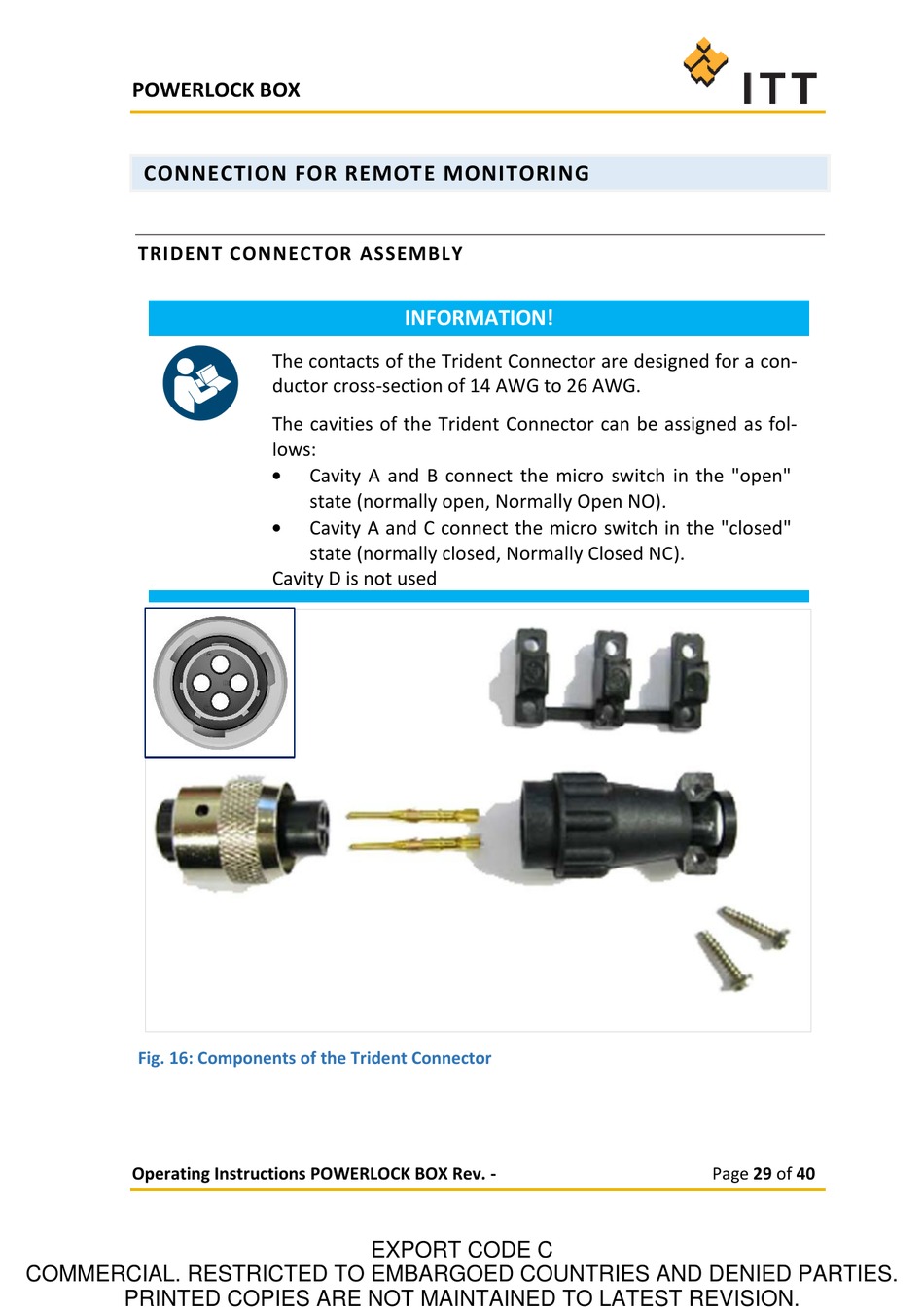

Fig. 16: Components of the Trident Connector

Operating Instructions POWERLOCK BOX Rev. -
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.
INFORMATION!
The contacts of the Trident Connector are designed for a con-
ductor cross-section of 14 AWG to 26 AWG.
The cavities of the Trident Connector can be assigned as fol-
lows:

Cavity A and B connect the micro switch in the "open"
state (normally open, Normally Open NO).

Cavity A and C connect the micro switch in the "closed"
state (normally closed, Normally Closed NC).
Cavity D is not used
