MICROSWITCH FOR REMOTE MONITORING

For remote monitoring, the POWERLOCK BOX is equipped with a three-pin con-
nector (ITT CANNON Trident Connector) on the back of the housing. The three-
pin connector is connected to a microswitch inside the POWERLOCK BOX.
This microswitch is only active when all connected POWERLOCK connectors are
correctly engaged and locked. It can be used for the connection of a switch-dis-
connector or an alarm line.

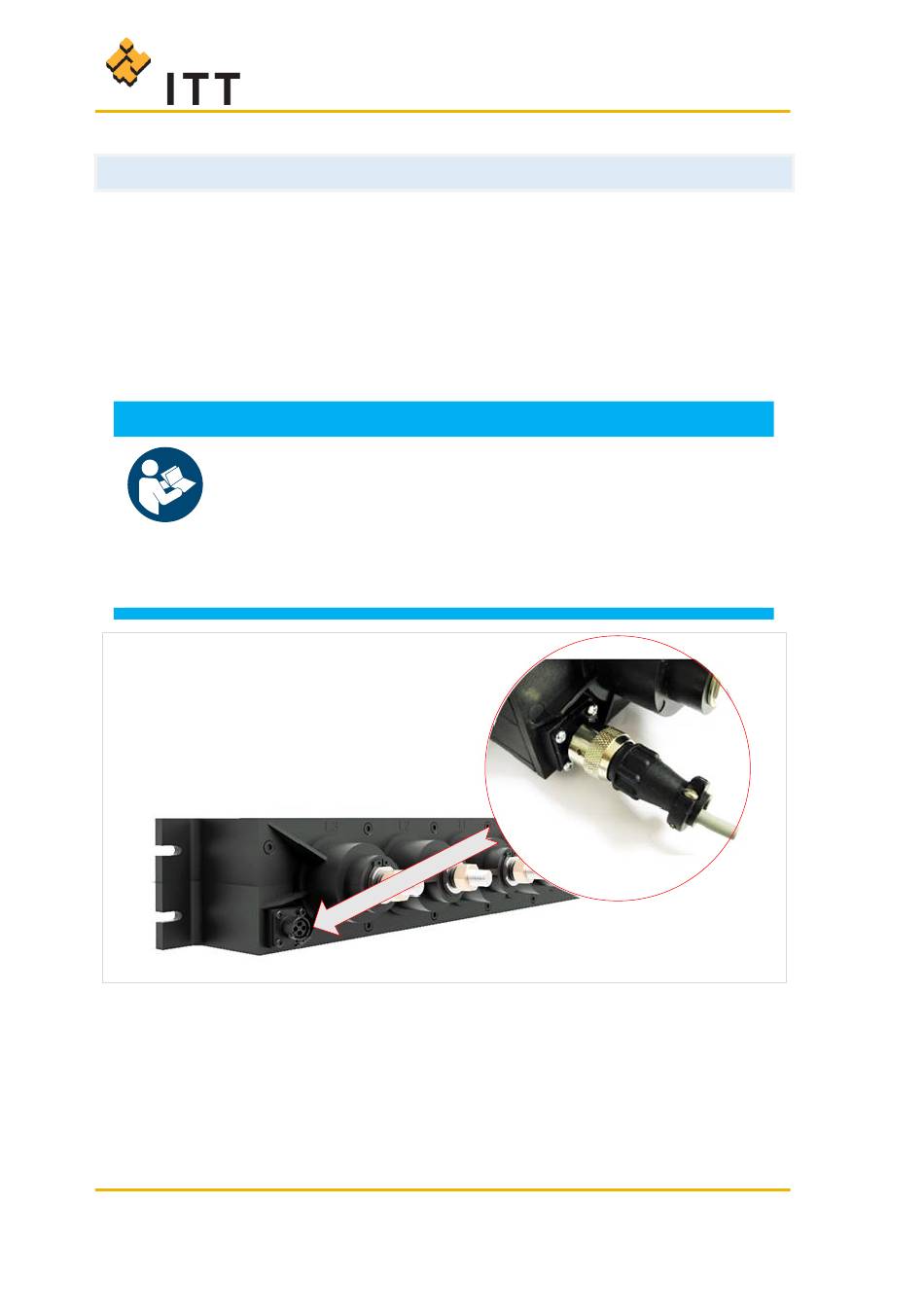

Fig. 12: Connector for remote monitoring (mounting position)

Page 22 of 40
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.
INFORMATION!
The connection of the three-pole plug must be configured ac-
cording to the requirements on site or the desired function
(current flows when "open" or "closed").
Further information on this can be found in the chapter "Com-
missioning and operation" under the corresponding section.
