Degelman PRO-TILL 30 Quick Start Manual

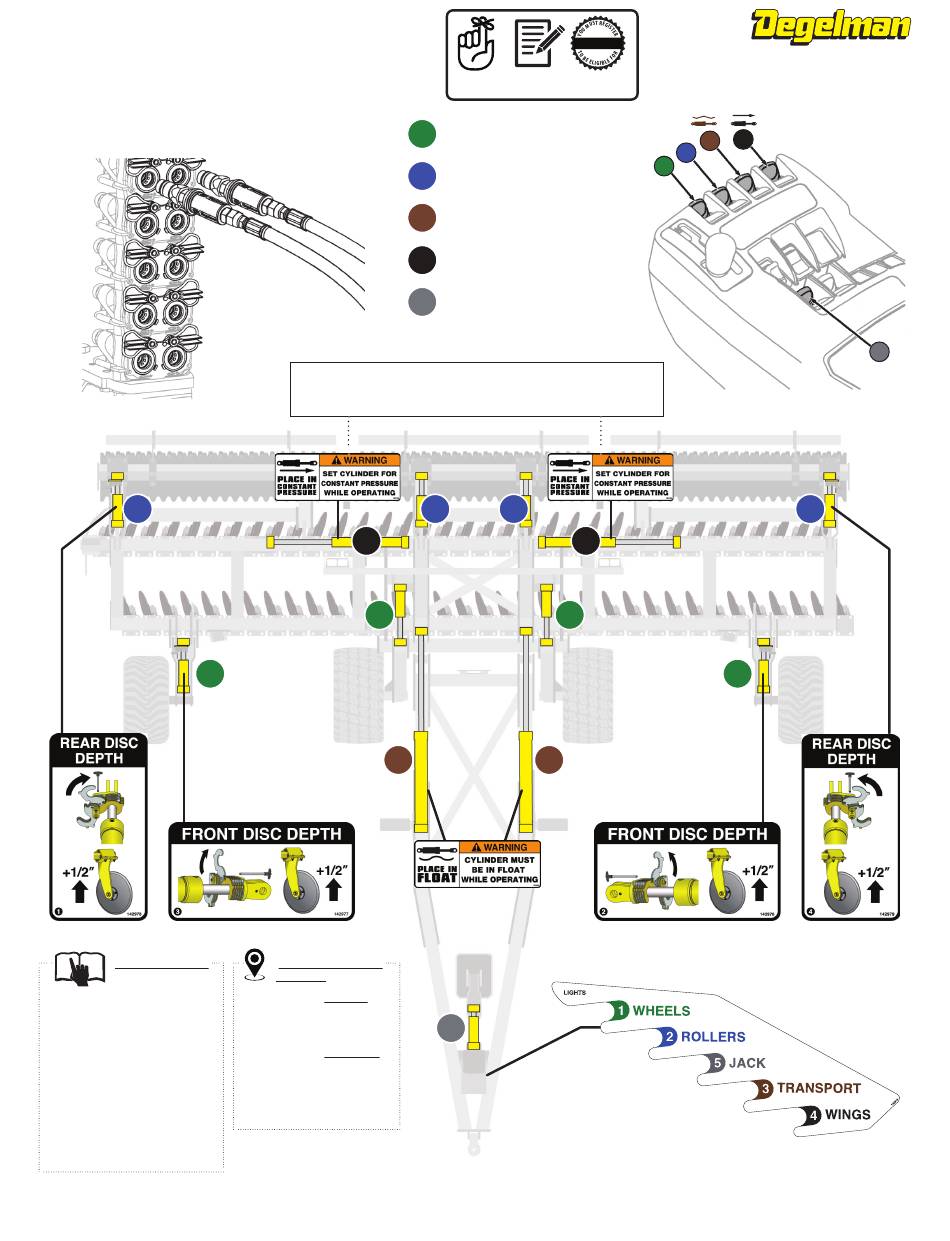

QUICK-START GUIDE
PRO-TILL 30/36
for
* Refer to operators manual for complete safety and operation info.
A

Connect Hydraulics

2
1

Maintenance

(Check Machine Daily)
• Hydraulic Connections/Hoses
• Working points & pins
• Hubs, Spindles, & Tire Pressure:
- End Wheels: 41 PSI (283 kPa)
- Center (confirm tire type):
389 AGRIFLEX: 40 PSI (275 kPa)
382 FLOTRUCK: 58 PSI (400 kPa)
• Check for missing, worn or
damaged parts.
* Refer to operators manual for
complete safety and operation info.
* Refer to operators manual for complete safety and operation info.
*
1
2
3
4
5
IMPORTANT: The Wing Cylinder Circuit includes a Down Pressure
Valve. Operator must engage wing circuit hydraulics constantly
in the extended direction to ensure constant down pressure.
4
1
3
GPS Reference
(Set overlap to 6" per side)
(with 20" discs) 2" Depth
Pro-Till 30 352" (8.95m)
Pro-Till 36
431" (10.95m)
(with 20" discs) MAX Depth
Pro-Till 30 355" (9.0m)
Pro-Till 36
434" (11.0m)
(Consider setting the GPS to include
a 6" implement offset to the right)
WARRANTY
REMEMBER! You must complete Product
Registration to be eligible for Warranty.
WHEELS
ROLLERS
TRANSPORT
WINGS
JACK
2 2
4
1
3
5
CONSTANT
PRESSURE
FLOAT
4
3
2
1
2
1
143411 v1.1
5
(if available)
