Degelman PRO-TILL 41 Quick Start Manual

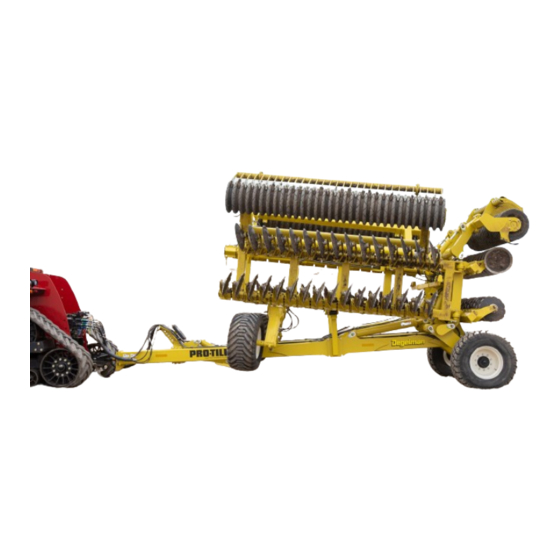

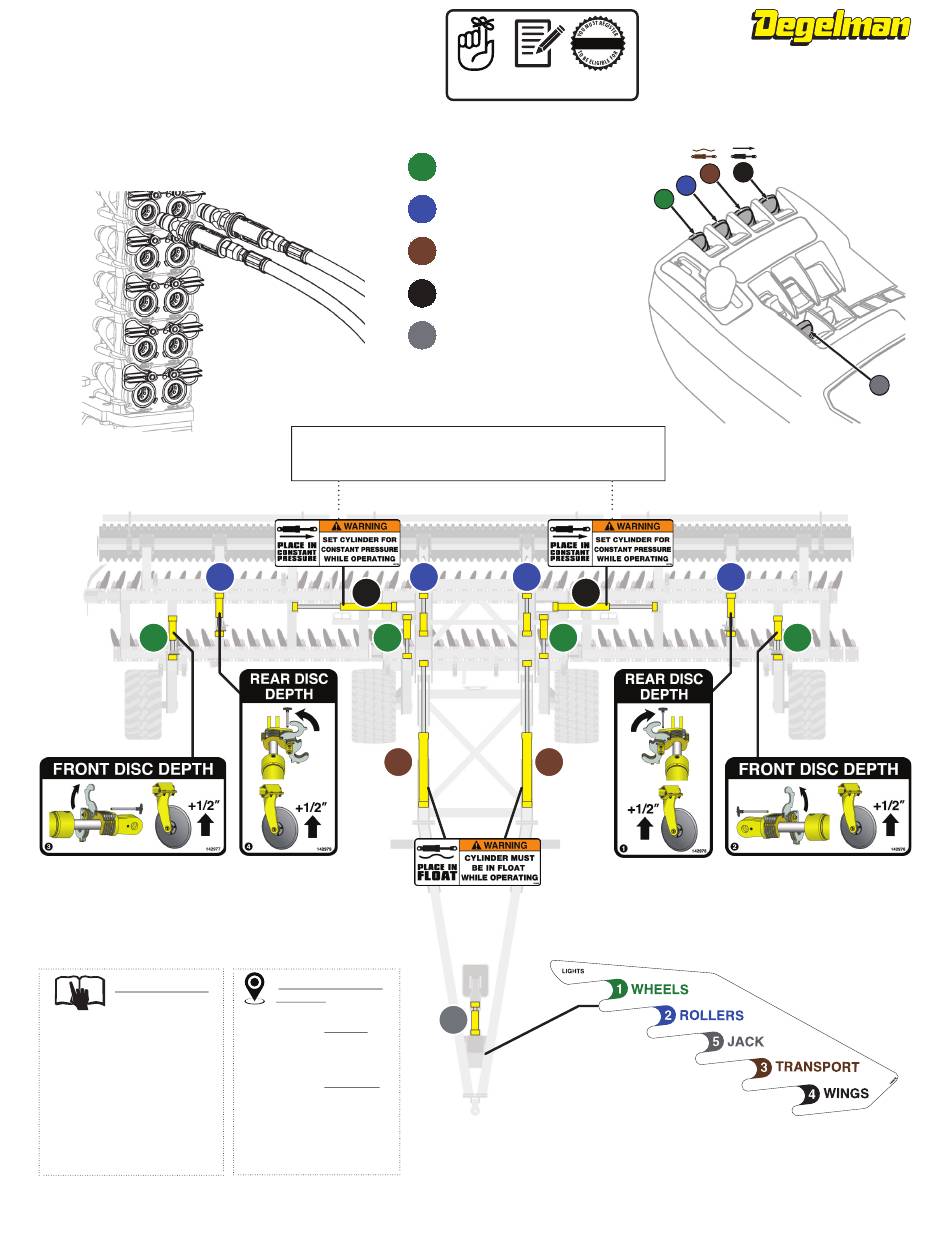

QUICK-START GUIDE
PRO-TILL 41/45
for
* Refer to operators manual for complete safety and operation info.
A
Connect Hydraulics
2
1
Maintenance
(Check Machine Daily)
• Hydraulic Connections/Hoses
• Working points & pins
• Hubs, Spindles, & Tire Pressure:
- Center: 58 PSI (400 kPa)
- End Wheels: 58 PSI (400 kPa)
• Check for missing, worn or
damaged parts.
* Refer to operators manual for
complete safety and operation info.
* Refer to operators manual for complete safety and operation info.
All manuals and user guides at all-guides.com
*
1
2
3
4
5
IMPORTANT: The Wing Cylinder Circuit includes a Down Pressure
Valve. Operator must engage wing circuit hydraulics constantly
in the extended direction to ensure constant down pressure.
2
4
1
3
GPS Reference
(Set overlap to 6" per side)
(with 20" discs) 2" Depth
Pro-Till 41 491" (12.47m)
Pro-Till 45 532" (13.51m)
(with 20" discs) MAX Depth
Pro-Till 41 493" (12.52m)
Pro-Till 45 534" (13.56m)
(Consider setting the GPS to include
a 6" implement offset to the right)
WARRANTY
REMEMBER! You must complete Product
Registration to be eligible for Warranty.
WHEELS
ROLLERS
TRANSPORT
WINGS
JACK
2
4
1
3
5
CONSTANT
PRESSURE
FLOAT
4
3
2
1
2
1
143412 v1.0
5
(if available)
