Degelman PRO-TILL 25 Operator's & Parts Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
D E G E L M A N
I N D U S T R I E S
B O X
8 3 0 - 2 7 2
I N D U S T R I A L
R E G I N A ,
S K ,
C A N A D A ,
F A X 3 0 6 . 5 4 3 . 2 1 4 0
P H 3 0 6 . 5 4 3 . 4 4 4 7
1 . 8 0 0 . 6 6 7 . 3 5 4 5
D E G E L M A N . C O M
L P
D R I V E ,
S 4 P
3 B 1
OPERATOR & PARTS
MANUAL
143588 v1.0
PRO-TILL 25/25HD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-TILL 25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Degelman PRO-TILL 25

Summary of Contents for Degelman PRO-TILL 25

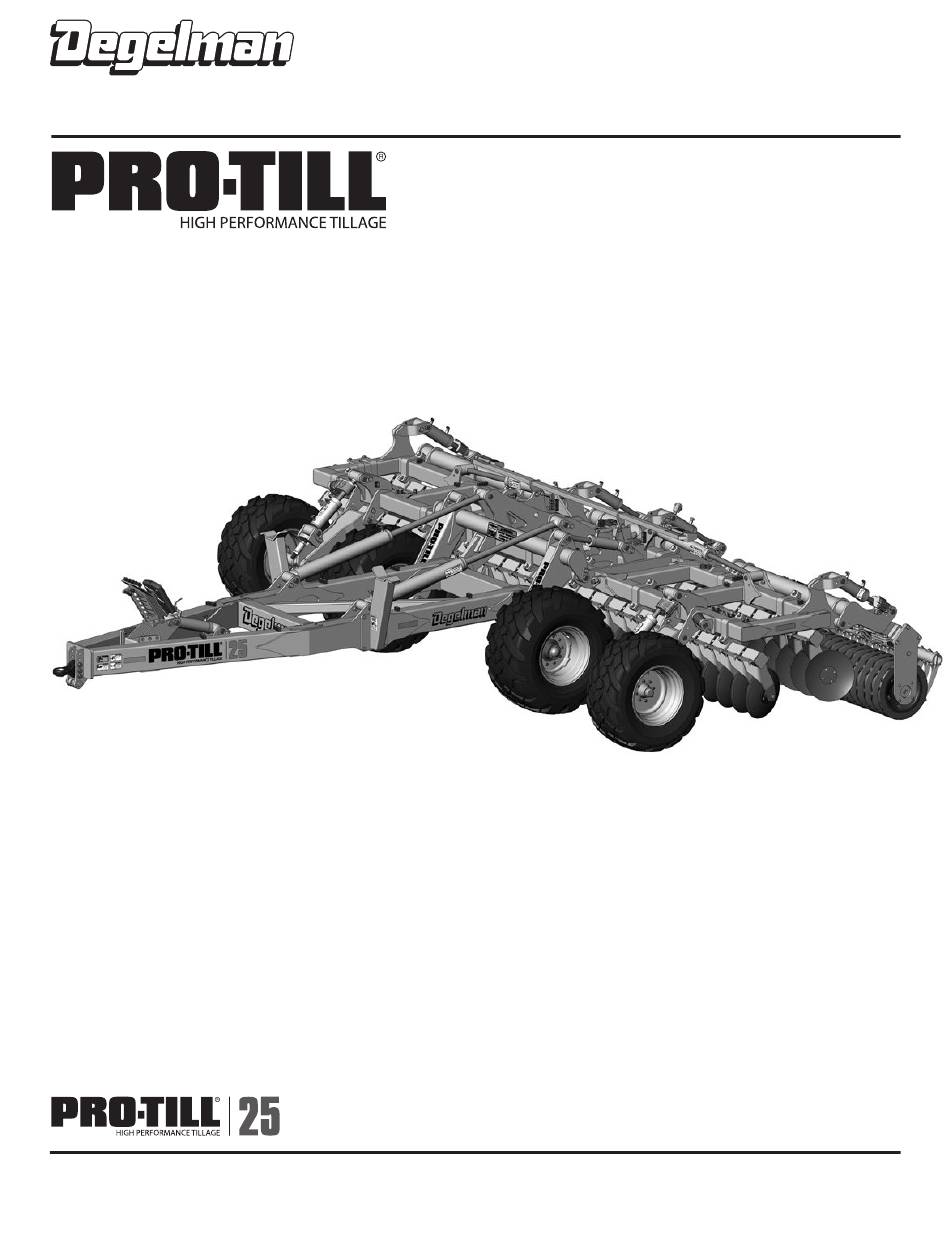

  • Page 1 OPERATOR & PARTS MANUAL 143588 v1.0 PRO-TILL 25/25HD D E G E L M A N I N D U S T R I E S B O X 8 3 0 - 2 7 2 I N D U S T R I A L...
  • Page 3 QUICK-START GUIDE WARRANTY PRO-TILL 25/30/36 REMEMBER! You must complete Product * Refer to operators manual for complete safety and operation info. Registration to be eligible for Warranty. CONSTANT PRESSURE FLOAT WHEELS Connect Hydraulics ROLLERS TRANSPORT WINGS JACK IMPORTANT: The Wing Cylinder Circuit includes a Down Pressure (if available) Valve.
  • Page 4 MAX Transport Speed: Set the scraper 40 km/h (25 MPH) clearance Set Gap: (roller specifi c, 1/4” to 3/8” (LSTX) see manual). or 3/4” to 1” (LSTXE) Properly tighten. from roller surface. PRO-TILL 25/30/36 © 2025 Degelman Industries LP...

  • Page 5: Table Of Contents

    * Reference Sheet Quick-Start Guide OPERATORS SECTION - TABLE OF CONTENTS IMPORTANT Safety Notice Introduction Safety Hook-Up Transport Transport to Field Position Field to Transport Position Operation Pre-Operation Checklist Operation Guidelines / Suggestions Setting Disc Depth Scraper Settings Adjustments: Rephasing Cylinders Troubleshooting Service &...

  • Page 6: Important Safety Reminder

    IMPORTANT SAFETY REMINDER DANGER NEVER PARK, UNHOOK, or RAISED SERVICE Pro-Till with REAR WINGS DANGER If the front hitch becomes disconnected in this position the front hitch will raise suddenly and the back of the machine will drop! CHANGING DISCS AND SERVICING The best position to safely change or service the discs on the Pro-Till is when it is secured in the winged...

  • Page 7: Introduction

    Degelman PRO-TILL is the fastest and most versatile piece of tillage equipment you will ever own. Use this manual as your first source of information about this machine.

  • Page 8: Safety

    CAUTION: Indicates a potentially hazardous situation CAUTION that, if not avoided, MAY result in minor or moderate injury if proper practices are not taken, or, serves as a reminder to follow appropriate safety practices. 143588 - PRO-TILL 25 (06-March-2025)

  • Page 9: General Safety

    GENERAL SAFETY YOU are responsible for the safe operation and 1. Read and understand the Operator’s maintenance of your Degelman PRO-TILL. Manual and all safety signs before YOU must ensure that you and anyone else who operating, maintaining or adjusting.

  • Page 10: Hook-Up

    8. Install a safety chain between the tractor and the hitch. 9. Connect lights (electrical socket plug) to tractor. 10. Raise the hydraulic hitch jack. 11. When unhooking from the tractor, reverse the above procedure. 143588 - PRO-TILL 25 (06-March-2025)

  • Page 11: Transport

    389 AGRIFLEX+: 560/60 R22.5: 58 PSI (400 kPa) Standard Field Operation Inflation Rates: 389 AGRIFLEX+: 560/60 R22.5: 40 PSI (275 kPa) IMPORTANT Under NO RIDERS CIRCUMSTANCES should there ever be riders while the Pro-Till is in transport. 143588 - PRO-TILL 25 (06-March-2025)

  • Page 12: Transport To Field Position

    This will ensure constant down pressure is applied to the wings and the machine can still contour over uneven terrain effectively. (Refer to your tractor's manual for proper procedures.) 143588 - PRO-TILL 25 (06-March-2025)

  • Page 13: Field To Transport Position

    E. With the wings in the proper position, retract Lift rear sections using the Transport the Transport Cylinders (#3) fully lowering the Cylinders (3), then fold the wings forward wings onto the wing transport carriers. using the Wing Cylinders (4). 143588 - PRO-TILL 25 (06-March-2025)

  • Page 14: Operation

    If excessive disc wear is evident, replacement may be 1. Check all hardware. Tighten as required. required. Refer to maintenance section. 2. Check all hydraulic system connections. Tighten if any are leaking. 143588 - PRO-TILL 25 (06-March-2025)

  • Page 15: Operation Guidelines / Suggestions

    The operator can adjust the cutting depth by raising/lowering the front or rear sets of discs by following the guidelines in the “Setting Disc Depth” section. 143588 - PRO-TILL 25 (06-March-2025)

  • Page 16: Setting Disc Depth

    1/2” you want to Raise it. NOTE: As the discs wear with usage, the disc depth 7. Repeat above procedure until proper depth is settings will also need to be adjusted accordingly. achieved. -10- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 17 - Loosen the two deflector adjustment bolts - Fully raise the deflector plate to the top of the adjustment slot. - Then retighten the bolts. Optional: The Dirt Deflector Assembly may be removed & stored. -11- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 18 3/4" to 1” for LSTXE Rollers • Then, properly tighten. Scraper Bolt Set the scraper tip to roller surface gap distance to: 3/4” to 1” (LSTXE rollers) -12- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 19: Scraper Settings

    Loosen Clamps to Adjust Side to Side the future. Double Sided Scraper Blades Note: When blades are being reversed, the complete section must be changed at the same time or adjustment will not work properly. -13- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 20: Adjustments: Rephasing Cylinders

    Once the air has been up in the circuit. pushed out of the system the reservoir can become low. This can introduce air into the system again. -14- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 21: Troubleshooting

    Troubleshooting - Pro-Till 25 Plugging disc rows in wet conditions: Rear discs or roller not engaging in very hard soil: - Ensure roller is turning & scrapers are set properly. - Adjust pitch so front discs are higher by adding two - Raise machine working depth.
  • Page 22 Troubleshooting - Pro-Till 25 Leaving a ridge or a groove between passes: End of wing discs cutting deeper or shallower than center: - Adjust deflector up to reduce ridge. - Fully extend wheel & roller depth cylinders & hold for - Adjust deflector down to fill groove.

  • Page 23: Service & Maintenance

    Only disconnect when • Bolt tightness unit is on level ground in the proper transport or field position. • Wheel bearings IMPORTANT: Safely secure Pro-Till in winged forward transport position when changing or servicing discs. -17- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 24 5. Ensure hoses are properly clamped and secured in 915 (1240) 1310 (1780) position after routing is complete to provide a cleaner 1250 (1695) 1785 (2420) installation and prevent possible damage or hazards. 1600 (2175) 2290 (3110) v1.1 -18- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 25: Hydraulic Fitting Installation

    fl at on the face of the port. washer is seated fl at on the face of the port. 3. Tighten to proper torque from the table shown above. 3. Tighten to proper torque from the table shown above. -19- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 26 8. Use hydraulic cylinder jack. 10. Pump grease into hub through grease fitting until 9. Oil any exposed chrome shafts on the hydraulic lubricant can be seen from dust seal. cylinders to prevent rusting. -20- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 27 5. Apply Loctite anti-seize before installing cylinder end cap. 6. Torque cylinder end cap to 440 lb.ft (600 N.m). 7. Tighten Set Screw on end cap to 6 lb.ft (8 N.m). -21- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 28 8. When both bushings are installed to the Install proper depth, install the new seals. Seal 9. Re-assemble all other 5/16" necessary components. IMPORTANT: DO NOT use oil or grease on pins or bushing surfaces when re-installing. -22- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 29 142978 - Decal, Rear Disc Depth #1 142979 - Decal, Rear Disc Depth #4 142008 - Decal, Degelman - 6” 143198 - Decal, Degelman - 8-1/4” 143862 - Decal, Pro-Till 25 - 4” 143863 - Decal, Pro-Till 25 - 7” -23- 143588 - PRO-TILL 25...

  • Page 30: Pro-Till Section Overview

    Pro-Till Overview Exploded Pro-Till 25 Overview RH End Wheel Hyd Jack Dirt Wheel Assembly Deflector Rockshaft Wing Front Frame Hitch RH Wing Center Wing Disc Gangs Hitch Pole LSTX/LSTXE Roller Options Frame Roller Frame Rollers & Frame 9/12 Bar Scraper...

  • Page 31: Hitch Pole Frame Components

    118541 - Flat washer, 1/4 SAE (2) 118483 - Lock Nut, 1/4 - Unitorq (2) Front Hitch Components Standard on Pro-Till 25 124029 - Front Hitch, CAT4 (1) 117429 - Bolt, 1 x 7-5/8 UNC GR8 (3) c/w 124045 - Ball, 2” (1)
  • Page 32 575194 - Pin Head (4) 575260 - Jack Base Assembly (1) 117426 - Bolt, 7/8 x 2-3/4 GR8 (4) 118774 - Flat washer, 7/8 - F436 (8) 117416 - Lock Nut, 7/8 Unitorq (4) -26- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 33: Wheel & Rockshaft Components

    4 Hole - #SE49 (1) 118723 - Stud, Wheel 131838 - Dust Cap - #DC27 (1) (Replacement Part) 118641 - Bolt, 5/16 x 1/2 (4) 10 BOLT PATTERN 118712 - Nut, Wide Base 3/4 UNF GR8 (10) -27- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 34: Center Frame Components

    Bushing, 2-1/2 Cylinder Pin) or lubricant on pin or bushing OD x 2-1/2 (20) surfaces when installing the 133135 - Wiper Seal, (Center Roller maintenance free pins into Cylinder Pin) 2-1/2 OD (20) composite bushings. -28- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 35: End Wheel Components

    End Wheel Components End Wheel Components for Pro-Till 25 (RH Shown) (RH Wing End Wheel Assembly shown) 131892 - Wheel Assembly, 389 Agriflex+ (2) Tire Pressure: comes with... 40 PSI (275 kPa) 131893 - Tire 500/60R-22.5 (1) 131863 - Rim, 22.5 x 16 8H (1)

  • Page 36: Wing Frame Components

    117414 - Lock Nut, 3/4 Unitorque (5) Plate (1) Deflector Plate Mounts with: 117414 - Lock Nut, 3/4 Unitorque (2) 118635 - Flat Washer, 3/4 x 2-1/4 (2) 117438 - Bolt, CRG 3/4 x 2-1/2 GR8 (2) -30- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 37: Disc Gang Assembly & Components

    PT25 - Disc Gang Components Pro-Till 25 Disc Gang Overview Gang Assembly Mounting (14) 572891 - V-Clamp (1) 575684 - Gang Section 575667 - Gang Section Assembly (1) Assembly (1) 118134 - Bolt, 1 c/w 575668 - Gang Mounting Frame (1)
  • Page 38 A: 6-3/4" gang section should be set to 1-1/2". This should be B: 2-1/2" the standard distance between all gang sections. 1-1/2" STEP 2 -32- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 39: Disc Arm Components & Disc Options

    121082 - O-Ring, Nitrile M6x 88 (1) Nitrile M5.3x87.5 (1) Discs/Hubs - Required Numbers Per Machine IMPORTANT: Safely secure Pro-Till 25 requires: 58 Discs/Hubs Pro-Till in winged forward transport position when changing or servicing discs. Typical Factory Settings of End Discs 20"...
  • Page 40 (Note: Customers may wish to adjust the 22” Double-V 26” Double-V 22” Straight 22” Notched end disc sizes and locations for customer Notched Notched preferred performance in certain soil or 143562 143563 143566 143577 field conditions.) -34- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 41: Roller Mounting Frame Components

    LH/RH roller frame being 3-3/4" 3-3/4" Center positioned. Between Frames (typ) Between Frames (typ) Mounting Frame to Roller Frame Installation for DOUBLE CAGE ROLLERS 14-7/16" 14-7/16" 5-3/8" 5-3/8" -35- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 42 Cylinder (1) Section for fittings) installing) 575598 - RH Roller Frame Mounting (Note orientation Assembly - 25' (1) of pins when installing) 575597 - LH Roller Frame Mounting Assembly - 25' (1) -36- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 43: Roller & Scraper Components

    Cage & LSTX Rollers Only 118767 - Bolt, 7/8 x 3 GR8 (8) 575760 - Bearing 573385 - Ridge Wiper Kit (2) Support Plate (2) LSTXE 2.5M RH & Center Roller Only Installed on LH side of roller. -37- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 44 131912 - Rubber Ring LSTXE (2.5m-15) 131847 - Standard Rubber Ring LSTX 131913 - Plastic Ring - LSTXE 131911 - End 131846 - End (2.5m-16) (2.5m-15) Rubber Ring LSTXE (2) Rubber Ring LSTX (2) -38- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 45 LSTX: 572955 - Scraper Blade, 1/4 (Qty) LSTX Wear with Wear LSTX: Scraper Blade Edge down Surface down Replacement Options 118186 - Bolt, 1/2 x 1-1/4 GR8 (Qty) Qty per Scraper Mount Assembly LSTX, 2.5m (Qty - 19) -39- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 46 80 lb . ft (108 N . m) 30 lb . ft (41 N . m),do not over-torque the setscrew. 118775 - Flat Washer, 3/4 F436 (12) 118048 - Bolt, 3/4 x 2-1/2 GR8 (6) -40- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 47: Hydraulic Routing & Cylinders

    Detail A - RH Outer Wheel Cylinder General Overview Detail B - RH Wheel Cylinder Hydraulic Lock Kit (LH Opposite) (Shown incorrect now (Shown incorrect now located on Opposite Side) located on Opposite Side) -41- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 48 123075 - Cylinder, 123065 - Cylinder, Monarch, 4-1/4 Monarch, 3-3/4 x 8 x 2 (2) x 8 x 2 (2) (Seal Kit: 123046) (Seal Kit: 123051) Detail A - LH Roller Cylinder General Overview -42- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 49 126454 - Hose, 3/8 x 192 (1) 126822 - Hose, 3/8 x 187 (1) 126820 - Hose, 3/8 x 99 123053 - Cylinder, Monarch, 6 x 40 x 2-1/2 (2) (Seal Kit: 123163) Detail A - Transport Cylinders General Overview -43- 143588 - PRO-TILL 25 (10-March-2025)
  • Page 50 Detail A - Transport Cylinders General Overview 118928 - Bolt, 5/16 x 2-1/4 (2) 118530 - Lock Washer, 5/16 (2) 118538 -Flat Washer, 5/16 (2) 141524 - Relief Valve, 2000 PSI - 3/4 ORB (1) 2 2 13 -44- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 51 IMPORTANT: Close the ball valve to prevent accidental Ball operation of this Valve circuit. Ensure ball Closed valve handle remains Position 7 7 2 2 in closed position. 122668 - Orifice, 3/4-16 UNF (1) -45- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 52: Hydraulic Schematic

    10 123205 - Cylinder, 4 x 28 x 2 (Seal Kit 123049) 11 123065 - Cylinder, 3-3/4 x 8 x 2 (Seal Kit 123051) 12 123075 - Cylinder, 4-1/4 x 8 x 2 (Seal Kit 123046) WHEEL/DEPTH CIRCUIT ROLLER/DEPTH CIRCUIT -46- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 53 Hydraulic Schematic WING CIRCUIT TRANSPORT CIRCUIT JACK CIRCUIT -47- 143588 - PRO-TILL 25 (06-March-2025)
  • Page 54 133135 - Wiper Seal, 2-1/2 OD (4) 133135 - Wiper Seal, 2-1/2 OD (4) 117225 - Bushing, 2-1/2 OD x 2-1/2 (4) 117225 - Bushing, 2-1/2 OD x 2-1/2 (4) (Seal Kit: 123049) (Seal Kit: 123049) -48- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 55: Light Routing

    Light Routing - Standard Wire Routing Overview 575495 - Pro-Till 25, Wire Harness 129125 - Dual Lamp (1) 129126 - Dual Lamp (1) -49- 143588 - PRO-TILL 25 (06-March-2025)

  • Page 56: Warranty

    Re-torque of fastening hardware, Hydraulic fluid purities, drive train alignments, and clutch operation) 3. If parts not made or supplied by Degelman have been used in the connection with the unit, if, in the sole judgement of Degelman such use affects its performance, safety, stability or reliability.

  • Page 57: Warranty Information

    It is the retail customer’s responsibility to deliver the product to the authorized Degelman dealer, from whom he purchased it, for service or replacement of defective parts, which are covered by warranty. Repairs to be submitted for warranty consideration must be made within forty-five days of failure.

This manual is also suitable for:

Pro-till 25hdPro-till 30Pro-till 36
