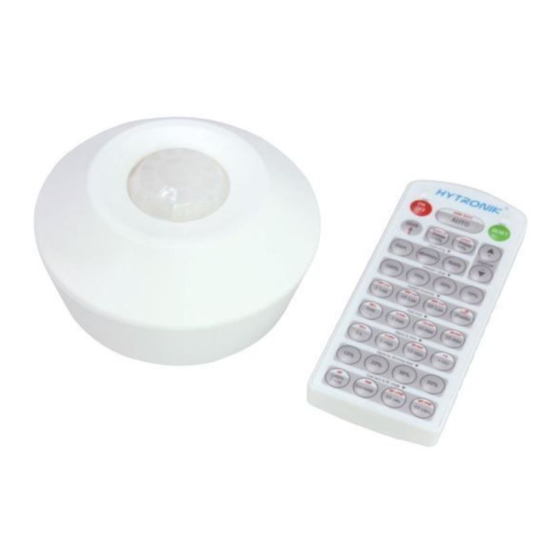

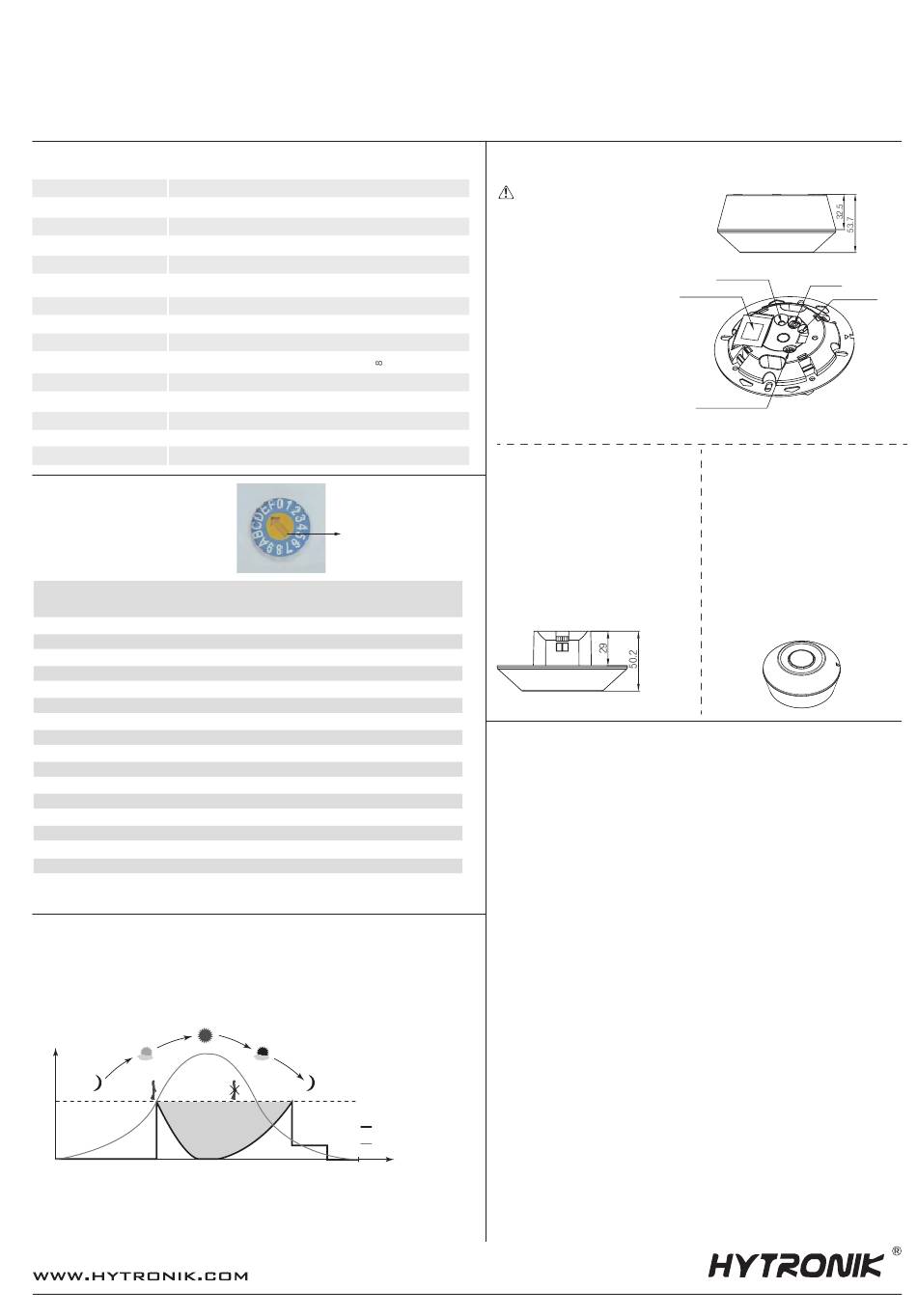

SURFACE MOUNT HIGH BAY DALI SENSOR HMW14
1. Technical Specifications
Product type High bay microwave DALI sensor (Daylight harvest)
Operating voltage 120~277VAC 50/60Hz
Rated load Maximum 20pcs devices, maximum 40mA
Power consumption < 1W
o
Detection angle 360
Detection area (DxH) 12 x 12m (Maximum)
Mounting height 15M(Maximum)
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / +
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 50 ~ 500Lux, Disable
Warmming up time 20s
o
Operating temperature -20 C ~ +50
IP rating IP42

3. Rotary Switch Settings

A rotary switch is built inside the sensor for
scene selection / fast programming. Total
16 channels available:
Detection Hold
Channel
range time
0 100% 5s
1 100% 1min
2 100% 5min
3 100% 5min
4 100% 5min
5 100% 5min
6 100% 10min
7 100% 10min
8 100% 10min
9 100% 10min
A 100% 20min
B 100% 20min
C 100% 30min
D 100% 30min
E 100% 30min
F 100% 5s
Note: settings can also be changed by remote control HRC-11. The last action controls.

4. Functions

4.1 Daylight Harvest (Daylight Regulating)

Daylight sensor measures the available surrounding natural light, calculates how much electrical light is
needed to reach the total lux expected. The demand is given to the LED driver by DALI signal, so as to
deliver the needed amount of electric light.
Light level
Energy Saving Zone
0

4.2 Synchronization Function

By connecting the "SYNC" terminals in parallel (see wiring diagram), no matter which sensor detects
motion, all HMW14 in the group will turn on the lights when surrounding natural light is below the daylight
threshold. The sensor module is shared and the detection area could be widely enlarged in this way.
Installation and Instruction Manual
o
C
Rotary switch preset (Please
see the location in 2. Installation)
Stand-by Stand-by Daylight
time dimming level threshold
10s 10% Disable
5min 10% 50Lux
10min 10% 50Lux
+∞ 10% 75Lux
+∞ 10% 100Lux
+∞ 30% 200Lux
30min 10% 50Lux
+∞ 10% 75Lux
+∞ 10% 100Lux
+∞ 30% 200Lux
1h 10% 100Lux
+∞ 30% 200Lux
+∞ 10% 100Lux
+∞ 30% 200Lux
+∞ 50% 400Lux
10s 10% 100Lux
Hold time
Normal Electric Light
Daylight controlled light
Stand-by time
Natural light
24
Time (hrs)

2. Installation

Warnings:
1. Installation must be carried out by a
qualified engineer in accordance with
local regulations.
2. Disconnect supply before installing.
3. Install to a solid surface - vibrations may
cause mis-triggering.
4. Ensure environmental conditions are
suitable for electronic equipment
Direct junction "J" box mounting
a. Separate control board (A) from facia (B)
& Surface box (C). C is not required.
b. Make electrical connections to control board
(A). See detailed wiring diagram on next page.
c. Secure control board (A) to junction box.
d. Set-up sensor modes as per sections 3 & 4
of this manual.
e. Clip facial plate (B) to control board (A).

4.3 Lux Off Function

The light dims to minimum level even switches off completelly if ambient daylight is sufficient
(natural light level exceeds target lux level), no matter it is during hold-time or stand-by time,
with or without motion.
Note: if the stand-by time is preset at "+∞", the light never turns off even when natural light is
sufficient.

4.4 Manual Override

With the help of push-switch, this sensor maybe over-ridden by the end-users to switch on/off
the lights manually, or adjust the light brightness during motion hold-time. This makes the
product more user-friendly and offers more options to fit for extra-ordinary demands.
* Short push (<1s): on/off function;
ON → OFF: the light turns off immediately and cannot be lighten for a certain time (equals to
hold time preset) even there is movement is detected. After this period, the sensor goes back
to auto sensor mode.
OFF → ON: the light turns on 100% and goes to auto sensor mode, even when ambient
Lux level exceeds the daylight threshold.
* Long push (>1s): adjust the target lux level by turning the light up or down. Both the
adjustment on remote control and push switch can overwrite each other,
the last adjustment remains in memory.

4.5 Semi-auto Function (Absence Detection)

The motion sensor is employed, but only activated on the manual press of the push switch,
The light remains on during presence and dims down in absence, eventually switching off
automatically after the stand-by time has expired.
Note: in this mode, the push terminal used for the 'manual on' switch input.
End-user can choose either function 4.4 or 4.5 for application. Default function is 4.4.
C - Surface box
B - Facia Cover
Infrared receiver
Photocell
HF Sensor module
LED indicator
Rotary switch preset
A - Control Board
Surface mount assembly
a. Separate control board (A) from facia (B) &
Surface box (C).
b. Securely mount surface box (C) to a flat and
solid surface.
c. Make electrical connections to control board
(A). See detailed wiring diagram on next page.
d. Set-up sensor modes as per sections 3 & 4 of
this manual.
e. Secure control board (A) to surface box (C).
f. Clip facial plate (B) to control board (A).
HMW14-20170309-A1
