Summary of Contents for Barco AMM240ED

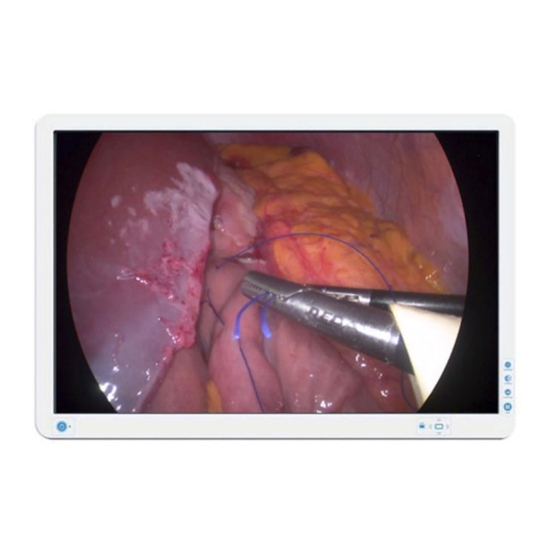

- Page 1 AMM240ED User Guide ENABLING BRIGHT OUTCOMES...
- Page 2 Barco, Inc. 3059 Premiere Parkway, Suite 400, Duluth, GA 30097, USA www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
-
Page 3: Table Of Contents
5 Cleaning your display ..................................21 Cleaning instructions..................................22 6 Troubleshooting ......................................23 Troubleshooting list..................................24 7 Important information..................................25 Safety information...................................26 Cybersecurity ....................................28 Environmental information.................................28 EU Declaration of Conformity for Medical Applications.....................30 Regulatory compliance information ............................30 EMC notice ......................................31 Explanation of symbols................................33 Warranty.......................................36 R5912858 /05 AMM240ED... - Page 4 Legal disclaimer....................................37 7.10 Technical specifications................................38 7.11 Connectors ......................................40 R5912858 /05 AMM240ED...
-
Page 5: Welcome
Welcome! Introduction Thank you for choosing this AMM240ED! For future reference, record the serial number of your display below. The serial number is located on the back of the display. Serial number R5912858 /05 AMM240ED... -
Page 6: Conventions
1.2 What's in the box Overview Make sure the following items are present when you unpack the box: • AMM240ED LCD display (the equipment that displays information, graphic data, image and video on the LED screen) • English user guide •... -
Page 7: Product Overview
Up: Move to the previous item. • Down: Move to the next item. • Select: Select an item. • Brightness: Quick key for brightness adjustment. • Contrast: Quick key for contrast adjustment. • Scale mode: Quick key for scale mode adjustment. R5912858 /05 AMM240ED... - Page 8 4. HD15/RGBS IN 5. RS232C 6. USB 7. DVI-I OUT 8. DVI-I IN 9. HD/SD SDI2 IN (OPTIONAL) 10. Y/C IN AC-Adaptor dimensions Image 1–4 A metal cover is attached to the HD/SD SDI2 connector depending on the model. R5912858 /05 AMM240ED...
-
Page 9: Installation
DDC (Display Data Channel) protocol. The DDC protocol is a communication protocol through which the monitor automatically informs the host system about its capabilities, for example, supported resolutions and corresponding timing. The monitor supports the DDC1 and DDC2B standard. R5912858 /05 AMM240ED... -
Page 10: Workspace
For 240 V applications use only the UL Listed detachable power cord with NEMA configuration 6-15P type (tandem blades) plug cap. If the monitor does not function properly, refer to the troubleshooting section to diagnose the problem. R5912858 /05 AMM240ED... -
Page 11: Daily Operation
Daily operation R5912858 /05 AMM240ED... -
Page 12: Recommendations For Daily Operation
In order to exit the OSD menu (regardless of where you are), choose the “Exit” icon and press the menu button. • Press the input button to enter the input menu. Push the Up or Down arrow to highlight the correct input and press enter to select the input. R5912858 /05 AMM240ED... - Page 13 Adjust Scale Mode, Color Space, Freeze Frame, Zoom / Pan, PIP, POP, PBP Advanced: Adjust OSD Position Control, Screen Control, DPMS, Auto Source Select, Smart Select, Restore Factory, Key Lock, Overscan Information: User Customer Entry, Serial Number, Runtime, Input Format, Exit R5912858 /05 AMM240ED...
- Page 14 Daily operation R5912858 /05 AMM240ED...
-
Page 15: Advanced Operation
Advanced operation R5912858 /05 AMM240ED... -
Page 16: Chromatic
SDI1 HD-15 (Optional) / RGBs DVI-I SDI1 SDI2 (Optional)* Component / RGBs HD-15 Available for Y/C and HD/SD SDI1 only When a HD/SD SDI module (optional) is connected, the HD/SD SDI2 is applicated to the PIP/POP/PBP function. R5912858 /05 AMM240ED... -
Page 17: Advanced
When a HD/SD SDI optional module is connected, HD/SD SDI2 is applicable to the source for POP mode. 10. When a HD/SD SDI optional module is connected, HD/SD SDI2 is applicable to the source for PBP mode. R5912858 /05 AMM240ED... - Page 18 10 seconds. In this mode, the screen goes off and the power LED blinks for 1 second On and 1 second Off. The screen is displayed after the vertical and horizontal sync signals are restored. The AMM240ED power management system provides 4 phases of power saving modes by detecting the horizontal sync signal as shown in the table below.
- Page 19 1920 x 1200@60Hz 74.099 59.999 154.125 Video Signals Component/RGBs SDI2 Format DVI-I HD-15 SDI1 (optional) Y/Pb/Pr/ RGB+ CS RGB+SOG NTSC-M NTSC-443 PAL- BDGHI PAL-M PAL-N PAL-60 480/59.94i 480/59.94p 576/50i 576/50p 720/50p 720/59.94p 720/60p 1080/ 23.98p 1080/24p 1080/25p 1080/ 29.97p R5912858 /05 AMM240ED...
-
Page 20: Information
Custom Entry: Change the User or Monitor’s Name / Custom Entry Row 1, Custom Entry Row 2 • SN: Display the Serial Number • Runtime: Display the Total Runtime • Input Format: Display the Current input Resolution and Vertical Frequency R5912858 /05 AMM240ED... -
Page 21: Cleaning Your Display
Cleaning your display R5912858 /05 AMM240ED... -
Page 22: Cleaning Instructions
CAUTION: Do not apply excessive pressure on the LCD. CAUTION: To clean the display, do not spray liquid cleaners directly to the screen. Stand away from the monitor, spray the cleaning solution onto a soft cloth and clean gently. R5912858 /05 AMM240ED... -
Page 23: Troubleshooting
Troubleshooting R5912858 /05 AMM240ED... -
Page 24: Troubleshooting List
Display is missing, center shift, or Using the Screen Control Menu, too small or too large in display size adjust the Phase, Frequency, Horizontal, and Vertical settings in order to correct the display image. R5912858 /05 AMM240ED... -
Page 25: Important Information
Important information R5912858 /05 AMM240ED... -
Page 26: Safety Information
This equipment has been tested and found to comply with the limits for medical devices in IEC 60601-1- 2:2014. • Equipment with SIP/SOP connectors should either comply with IEC 60601-1 harmonized national standard or the combination should be evaluated. Do not touch the patient with signal input or output connectors. R5912858 /05 AMM240ED... - Page 27 6. The unit is designed for operation in a horizontal position. Never operate the unit in a vertical position. 7. Keep the unit away from equipment with strong magnets (i.e. a large loudspeaker). 8. The products have lower breaking capacity type. Do not install at the building power system prospective short-circuit current exceeding 35 A. R5912858 /05 AMM240ED...
-
Page 28: Cybersecurity
9. Disconnecting the power cord from the AC-Adaptor is the proper means of isolation from the supply mains. 10. To connect to an international power supply, use a an attachment plug appropriate for the power outlet. 11. The AMM240ED must be installed and operated according to the EMC information provided in this manual. - Page 29 Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.
-
Page 30: Eu Declaration Of Conformity For Medical Applications
The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). FCC class B This equipment has been tested and found to comply with the limit for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 31: Emc Notice
Electromagnetic emissions The AMM240ED is intended for use in the electromagnetic environment specified below. The customer or the user of the AMM240ED should assure that it is used in such an environment. Electromagnetic environment –... - Page 32 Consult the dealer or an experienced technician for help. Electromagnetic immunity The AMM240ED is intended for use in the electromagnetic environment specified below. The customer or the user of the AMM240ED should assure that it is used in such an environment.
-
Page 33: Explanation Of Symbols
802.11 b/g/n, 217 Hz RFID 2450, LTE Band 7 5240 5100 – 5800 W LAN Pulse 802.11 a/n modulation 5500 217 Hz 5785 7.7 Explanation of symbols Overview You may find the following symbols (nonrestrictive list): R5912858 /05 AMM240ED... - Page 34 Indicates the entity importing the medical device into the locale. Indicates this is a Medical Device. Indicates the device serial number. Indicates the device part number or catalogue number. Indicates the Unique Device Identifier. Warning: dangerous voltage Caution R5912858 /05 AMM240ED...
- Page 35 Indicates the maximum number of boxes to be stacked on each other. Recyclable Authorized representative in Europe For indoor use only China RoHS symbol. The number indicates EFUP (Environmental Friendly Use Period) from the date of manufacturing IP22 Tested to comply with IP (Ingression Protection) Rating R5912858 /05 AMM240ED...
-
Page 36: Warranty
In Warranty BARCO or its ASC will repair or replace if defective in material or workmanship without cost, for a period of eighteen (18) months, (LCD panels and touchscreens for a period of twelve (12) months) after the date of shipment. - Page 37 Product End of Life (EOL) In the event of an RMA of an EOL product(s), BARCO will hold or store major components of its products for a period of five (5) years, after the EOL of its products. BARCO shall continue to perform the service of its products as long as BARCO holds or stores said components of the products, with reasonable charge.
- Page 38 Product Security Incident Response As a global technology leader, Barco is committed to deliver secure solutions and services to our customers, while protecting Barco’s intellectual property. When product security concerns are received, the product security incident response process will be triggered immediately.
- Page 39 DC extension cable: 5 ft, 15 ft, 75 ft length Base stand: Adjustable height, swivel and tilt A metal cover is attached to the HD/SD SDI2 connector depending on the model. For more details on how to use this optional module, contact the Service Center. R5912858 /05 AMM240ED...
- Page 40 DDC Data Ground (for +5 T.M.D.S. Clock Hot Plug Detect T.M.D.S. Clock- Video Input 24 Pin DVI-I Out Connector DDWG or Equivalent Connector Description Description Description T.M.D.S. Data2- T.M.D.S. Data1- T.M.D.S. Data0- T.M.D.S. Data2 T.M.D.S. Data1 T.M.D.S. Data0 R5912858 /05 AMM240ED...
- Page 41 Video Input HD/SD SDI1 Out Connector Description Description SDI Out Video Input HD 15/RGBS In Connector Description Description Description GND-RED GREEN GND-GREEN DDC SDA BLUE GND-BLUE HSYNC(CS) VSYNC DDC SCL Signal Input RS232C Signal Connector Description Description R5912858 /05 AMM240ED...
- Page 42 Important information Signal Input USB Signal Connector Description Description Vcc (5 V) Video Input HD/SD SDI2 In (optional) Video Connector Description Description SDI Input Video Input Y/C In Video Connector Description Description Chroma_In Luma_In R5912858 /05 AMM240ED...
- Page 44 Barco, Inc. Barco NV 3059 Premiere Parkway, Suite 400 President Kennedypark 35 Duluth, GA 30097 8500 Kortrijk Belgium R5912858 /05 | 2021-05-19 www.barco.com...
