Installation and
Operation Manual
TANDOOR
Speciality Ovens
Gas-Fired Round, Square and
Barrel Models
TANDOOR 31" WS-GFT-31
TANDOOR 35" WS-GFT-35

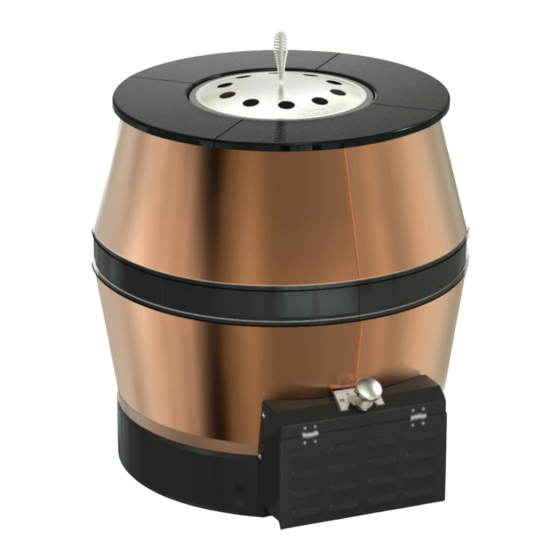

BARREL TANDOOR WS-GFT-35-CUS
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Toll Free 800.988.8103
Tel 360.650.1111
Fax 360.650.1166
DOC NO M0053.12
REVISED JULY 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TANDOOR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Wood Stone TANDOOR Series

  • Page 1 TANDOOR Speciality Ovens Gas-Fired Round, Square and Barrel Models TANDOOR 31" WS-GFT-31 TANDOOR 35" WS-GFT-35 BARREL TANDOOR WS-GFT-35-CUS WOOD STONE CORPORATION Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com DOC NO M0053.12...
  • Page 2: Table Of Contents

    A MAJOR CAUSE OF OVEN RELATED FIRES IS A FAILURE TO MAINTAIN REQUIRED CLEARANCES TO COMBUSTIBLE MATERIAL. IT IS OF UTMOST IMPORTANCE THAT THIS OVEN BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS. WOOD STONE CORPORATION info@woodstone-corp.com M0053.12 JULY 2019 800.988.8103 TOLL FREE E-MAIL woodstone-corp.com...
  • Page 3: Tandoor

    TANDOOR Tandoor Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE TANDOOR GAS-FIRED TANDOOR OVEN WS-GFT-31 (ROUND, SQUARE) WS-GFT-35 (ROUND, SQUARE) AND WS-GFT-35-CUS (BARREL) MODELS ADDITIONAL COPIES AVAILABLE UPON REQUEST Round model Barrel model Square model (shown with optional...
  • Page 4: Cautions & Warnings

    CAUTIONS & WARNINGS Tandoor Installation and Operation Manual INSTALLATION AND OPERATING INSTRUCTIONS FOR THE WOOD STONE GFT-31-(RND, SQR)-(NG, LP, HLP), GFT-35-(RND, SQR)-(NG, LP, HLP) AND GFT-35-CUS-(NG, LP, HLP) TANDOOR OVENS RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at woodstone-corp�com�...
  • Page 5 300mm Opening Opening ANY REPRODUCTION OR USE IN PART OR AS A WHOLE GAS INLET: 1/2" NPT 40,000 BTU, NG WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 40,000 BTU, LP PROHIBITED \\woodstone.net\dfs\CAD\0 Pn\WS Top Level\WS-GFT-31_General_Arrangement-1.dft 21" 530mm UTILITY SPECIFICATIONS...
  • Page 6 160mm 330mm ANY REPRODUCTION OR USE IN PART OR AS A WHOLE GAS INLET: 1/2" NPT Opening 40,000 BTU, NG WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 40,000 BTU, LP PROHIBITED \\woodstone.net\dfs\CAD\0 Pn\WS Top Level\WS-GFT-35_General_Arrangement-1.dft 24 3/4" 630mm UTILITY SPECIFICATIONS...
  • Page 7: Gft-35

    ANY REPRODUCTION OR USE IN PART OR AS A WHOLE 1/2 psi (14 inches W�C�) WITHOUT NOTICE. WITHOUT NOTICE. GAS INLET: 3/4" NPT WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS GAS INLET: 3/4" NPT 40,000 BTU, NG 40,000 BTU, NG THE INFORMATION CONTAINED IN THIS DRAWING IS THE...
  • Page 8: Clearances & Venting

    VENTING The Wood Stone gas-fired Tandoor must be installed under an appropriate NFPA 96 approved Type 1 exhaust hood� Refer to local and/or national codes for hood specification requirements� The hood must be designed for the removal of the combustion products of gas, as well as the cooking vapors related to the intended use of the oven�...
  • Page 9: Lower Flashing Install (Barrel)

    LOWER FLASHING INSTALL (BARREL) Tandoor Installation and Operation Manual DO NOT LOWER STRIP FLASHING UNTIL TANDOOR IS LOCATED IN ITS FINAL INSTALLED POSITION DO NOT REMOVE PROTECTIVE TAPE FROM BOTTOM OF TANDOOR UNTIL STRIP FLASHING IS LOWERED Leveling the Tandoor Position Tandoor in its final installed position�...
  • Page 10: Gas Specifications

    Wood Stone recommends that the rotisserie be equipped with a manual, individual shutoff valve, located between the oven and the main gas supply, and that this shutoff valve (supplied by others) be left readily accessible� Wood Stone also recommends that inspection and maintenance of the burners and gas piping connections of this appliance be performed at regularly scheduled intervals and only by professional gas appliance service agencies�...
  • Page 11 14" W�C� (1/2 psi) (3�45 kPa)� THIS APPLIANCE IS NOT FOR USE WITH SOLID FUEL WOOD STONE CORPORATION info@woodstone-corp.com M0053.12 JULY 2019 800.988.8103...
  • Page 12: Lighting Instructions

    LIGHTING INSTRUCTIONS Tandoor Installation and Operation Manual Plan view Rear view Temperature Control Knob Spark Control Knob Igniter Button Pilot PILOT Temperature Remove Control Knob Deflector Plate Grease/ before lighting. Debris Pan Gas Control Knob Spark Igniter Button (Red) PILOT LIGHTING PROCEDURE Tip: It is helpful to have a second person available to look into chamber to verify pilot has lit�...
  • Page 13: Operation

    Once the chamber is at the desired temperature, typically 620 °F–650 °F, remove the Lid completely for the cooking day� Temperature can be determined using the optional Fluke Hand Held IR Thermometer (see the Tools and Accessories section of the Wood Stone website)� Cooking Temperature Set the Temperature Control Knob to the cooking temperature range: 1.3–1.5�...
  • Page 14: Cleaning & Maintenance

    To remove debris from the chamber walls, first brush the walls with the optional In-Line Floor Brush (see the Tools and Accessories section of the Wood Stone website)� Use a moist towel (water only) to swirl around the chamber� Any debris which falls to the bottom of the chamber can be removed as described above�...
  • Page 15: Limited Warranty

    LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
  • Page 16 WOOD STONE CORPORATION Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com An ongoing program of product improvement may require us to change specifications without notice. M0053.12 JULY 2019...
