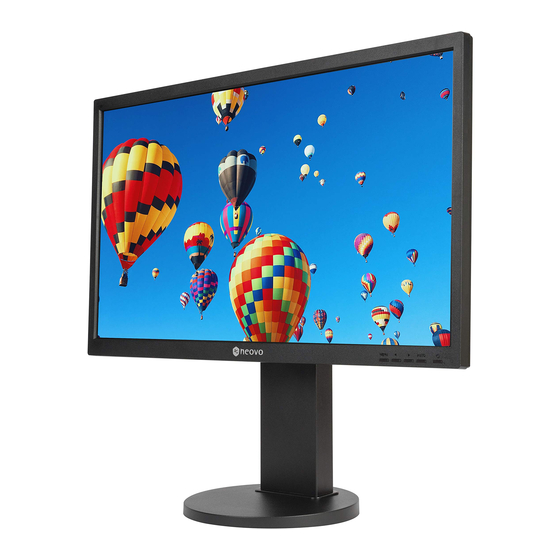

- Page 1 EH-24 LED-Backlit Display User Manual www.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) ..............3 WEEE ................................3 PRECAUTIONS Notice ................................4 Cautions When Setting Up ........................... 4 Cautions When Using ........................... 5 Cleaning and Maintenance ........................... 6 Notice for the LCD Display ........................... 6 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents .......................... -
Page 3: Safety Information
Safety Information SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Precautions
Precautions PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 5: Cautions When Using
Users who have already mounted the display on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience. -
Page 6: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance Do not attempt to service the LCD display yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Display In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 7: Chapter 1: Product Description
When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Display Quick Start Guide Base EH-24 Quick Start Guide EH-24 LCD Monitor MENU AUTO EH-24_Quick Guide_V010 www.agneovo.com Power cord VGA cable... -
Page 8: Installation
PRODUCT DESCRIPTION 1.2 Installation 1.2.1 Installing the Base 1. Place the LCD display with the screen side down on a cushioned surface. 2. Attach the base to the stand arm. a. Rotate the stand arm 90˚ counterclockwise. b. Align and attach the base to the stand arm. Then fasten the screw to secure the base. -
Page 9: Adjusting The Viewing Angle And Height
PRODUCT DESCRIPTION 1.2.2 Adjusting the Viewing Angle and Height For optimal viewing, it is recommended to look at the full face of the screen, then adjust the screen of the LCD display angle and height according to your preference. Hold the stand so that the screen does not topple when you make the adjustment. You are able to adjust the screen angle and height as below: Tilt angle: Pivot angle:... -
Page 10: Wall Mounting
PRODUCT DESCRIPTION 1.2.3 Wall Mounting To wall mount the LCD display, do the following steps: 1. Remove the base. a. Place the LCD display with the screen side down on a cushioned surface. b. Turn the screw counter-clockwise to remove the screw and detach the base from the stand arm. 2. - Page 11 Note: Take measures to prevent the LCD display from falling down and lessen possible injury and damage to the display in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard.
-
Page 12: Overview
PRODUCT DESCRIPTION 1.3 Overview 1.3.1 Front View MENU AUTO Display screen Control buttons Press the button to perform its function. For more information about each button, refer to pages 13-14. -
Page 13: Control Buttons
PRODUCT DESCRIPTION 1.3.2 Control Buttons MENU AUTO MENU AUTO LED Indicator Button Description Menu Button On Screen Display (OSD) (MENU) • Press to call out the OSD menu. During OSD menu • Use to confirm the selection or enter a submenu. Left / Right Button Volume Bar (t/u) - Page 14 PRODUCT DESCRIPTION Button Description Auto Button Auto Adjustment (available in VGA input only) (AUTO) Press to perform auto adjustment. This function automatically tunes the LCD display to its optimal setting, including horizontal position, vertical position, clock, and phase. When auto adjustment is initiated, the below message is displayed on the screen. Auto Adjust When the message disappears, this indicates the auto adjustment is completed.
-
Page 15: Rear View
PRODUCT DESCRIPTION 1.3.3 Rear View HDMI AUDIO IN AC Power Input Use to connect the power cord. DP (DisplayPort) connector Use to connect an DisplayPort cable for digital input signal. HDMI connector Use to connect an HDMI cable for digital input signal. VGA connector Use to connect a VGA cable for analogue input signal. -
Page 16: Chapter 2: Making Connections
Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD display is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 17: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • DisplayPort HDMI Connect one end of a DisplayPort cable to the DisplayPort connector of the LCD display and the other end to the DisplayPort connector of the computer. -
Page 18: Connecting Audio Devices
MAKING CONNECTIONS 2.3 Connecting Audio Devices • Audio Input Connect one end of an audio cable to the audio port of the LCD display and the other end to the audio port of the computer. AUDIO IN Audio Out • Audio Output Connect a headphone to the headphone jack of the LCD display. -
Page 19: Chapter 3: On Screen Display Menu
Chapter 3: On Screen Display Menu CHAPTER 3: ON SCREEN DISPLAY MENU 3.1 Using the OSD Menu 1. Press the MENU button to call out the OSD window. Contrast Brightness Submenu During HDMI/DisplayPort input, Picture Setting is disabled and Color Temp. grey out. -
Page 20: Osd Menu Tree
ON SCREEN DISPLAY MENU 3.2 OSD Menu Tree Main Menu Submenu Reference Colour Contrast Refer to page 22. Brightness Color Temp. 9300 6500 5500 USER Auto Adjust Color Adjust Picture H. Position Refer to page 23. V. Position Clock Phase Language English Refer to page 24. - Page 21 ON SCREEN DISPLAY MENU Main Menu Submenu Reference Other Mode Refer to page 25. Vivid Movie Audio Volume Signal Source HDMI Aspect Ratio 16:9 AUTO Active Contrast Over Drive Anti Blue Light ANTI-BURN-IN Reset Reset Refer to page 26. Note: Availability of some menu items depend on the input source signal. If the menu is not available, it is disabled and greyed out.
-
Page 22: Chapter 4: Adjusting The Lcd Display
Chapter 4: Adjusting the LCD Display CHAPTER 4: ADJUSTING THE LCD DISPLAY 4.1 Colour Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Colour menu. Contrast Contrast Brightness... -
Page 23: Picture Setting
ADJUSTING THE LCD DISPLAY 4.2 Picture Setting Note: This menu is only available if the input source is VGA. 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Picture menu. H. -
Page 24: Osd Setting
ADJUSTING THE LCD DISPLAY 4.3 OSD Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the OSD menu. Language English Language English OSD H. -
Page 25: Other Setting
ADJUSTING THE LCD DISPLAY 4.4 Other Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Other menu. Mode VIVID Movie Mode VIVID Movie... -
Page 26: Reset Setting
ADJUSTING THE LCD DISPLAY 4.5 Reset Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Reset menu. Reset Reset 1920x1080 60Hz 1920x1080 60Hz 3. -
Page 27: Chapter 5: Appendix
Chapter 5: Appendix CHAPTER 5: APPENDIX 5.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The resolution or the refresh rate of √ Change the resolution or the the graphics card of the computer refresh rate of the graphics Out of range is set too high. -
Page 28: Troubleshooting
APPENDIX 5.2 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD display is turned ON. • Check if the power cord is properly connected to the LCD display. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •... -
Page 29: Transporting The Lcd Display
APPENDIX 5.3 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging box. 1. Remove the base. a. Place the LCD display with the screen side down on a cushioned surface. b. - Page 30 APPENDIX 7. Close and tape the box. Note: • It is recommended to use the original packaging box. • When repacking, carefully place the LCD display in its box and protect the glass panel from touching any object.
-
Page 31: Chapter 6: Specifications
Chapter 6: Specifications CHAPTER 6: SPECIFICATIONS 6.1 Display Specifications EH-24 Panel Panel Type LED-Backlit TFT LCD (IPS Technology) Panel Size 23.8” Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.275 mm Brightness 270 cd/m Contrast Ratio 20,000,000:1 (DCR) Viewing Angle (H/V) 178°/178°... -
Page 32: Display Dimensions
SPECIFICATIONS 6.2 Display Dimensions 227.5 100.0 227.5 555.0(Outline dimension) 46.0 528.4(Outline dimension) 13.3 13.3 20.7 M4x10L 204.0 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2020 AG Neovo. All rights reserved. EH2400_UM_V010...
