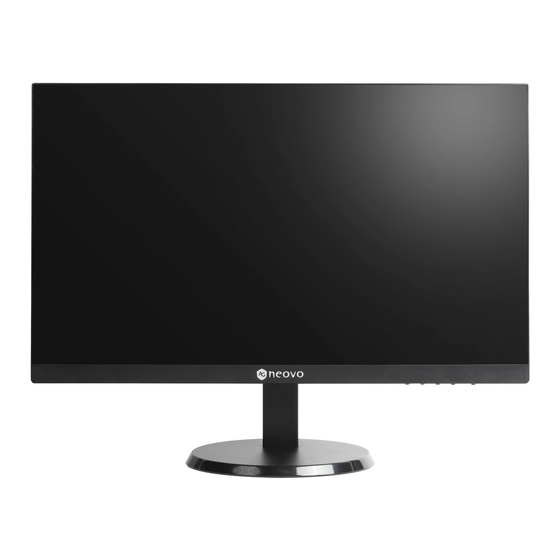

- Page 1 LW-22G & LW-24G LED-Backlit Monitor User Manual www.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION WEEE ................................3 PRECAUTIONS Notice ................................4 Cautions When Setting Up ........................... 4 Cautions When Using ........................... 5 Cleaning and Maintenance ........................... 6 Notice for the LCD Monitor ........................... 6 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents ..........................7 1.2 Installation .............................. -
Page 3: Safety Information
Safety Information SAFETY INFORMATION WEEE Information for users applicable in European Union countries The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. -
Page 4: Precautions
Precautions PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 5: Cautions When Using
Users who have already mounted the monitor on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling monitor experience. -
Page 6: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance Do not attempt to service the LCD monitor yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Monitor In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD monitor may decrease with time. -
Page 7: Chapter 1: Product Description
When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Monitor Base Mount Quick Start Guide Quick Start Guide LW-22G & LW-24G LED-Backlit Monitor LW-22G/LW-24G_Quick Guide_V010 displays.agneovo.com LW-22G LW-24G Stand... -
Page 8: Installation
1. Place the LCD monitor with the screen side down on a cushioned surface. 2. Attach the stand to the LCD monitor. a. Install the base mount to its compartment on the monitor. b. Attach the stand to the base mount. LW-22G LW-24G 1.2.2 Adjusting the Tilt For comfort viewing, tilt the LCD monitor up to an angle of 20°. -
Page 9: Wall Mounting
Note: Take measures to prevent the LCD monitor from falling down and lessen possible injury and damage to the monitor in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard. -
Page 10: Overview
PRODUCT DESCRIPTION 1.3 Overview 1.3.1 Front View Monitor screen Control buttons Press the button to perform its function. For more information about each button, refer to pages 11-12. -
Page 11: Control Buttons
PRODUCT DESCRIPTION 1.3.2 Control Buttons LED Indicator LED Indicator LW-22G LW-24G Button Description Menu Button On Screen Display (OSD) (MENU) • Press to call out the OSD menu. During OSD menu • Use to confirm the selection or enter a submenu. - Page 12 PRODUCT DESCRIPTION Button Description Auto Button Auto Adjustment (available in VGA input only) (AUTO) Press to perform auto adjustment. This function automatically tunes the LCD monitor to its optimal setting, including horizontal position, vertical position, clock, and phase. When auto adjustment is initiated, the below message is displayed on the screen. Auto Adjust When the message disappears, this indicates the auto adjustment is completed.
-
Page 13: Rear View
PRODUCT DESCRIPTION 1.3.3 Rear View LW-24G LW-22G AUDIO HDMI AC power input. HDMI Connect HDMI signals input. Connect VGA signals input. AUDIO IN Connect audio signals input (3.5 mm Stereo Audio Jack). -
Page 14: Chapter 2: Making Connections
Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD monitor is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 15: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • HDMI HDMI Connect one end of an HDMI cable to the HDMI connector of the LCD monitor and the other end to the HDMI connector of the computer. -
Page 16: Connecting Audio Devices
MAKING CONNECTIONS 2.3 Connecting Audio Devices • Audio Input Connect one end of an audio cable to the audio port of the LCD monitor and the other end to the audio port of the computer. AUDIO Audio Out... -
Page 17: Chapter 3: On Screen Display Menu
Chapter 3: On Screen Display Menu CHAPTER 3: ON SCREEN DISPLAY MENU 3.1 Using the OSD Menu 1. Press the MENU button to call out the OSD window. Contrast Brightness Submenu During HDMI input, Picture Setting is Color Temp. disabled and grey out. Auto Adjust Menu option... -
Page 18: Osd Menu Tree
ON SCREEN DISPLAY MENU 3.2 OSD Menu Tree Main Menu Submenu Reference Colour Contrast Refer to page 20. Brightness Color Temp. 9300 6500 5500 USER Auto Adjust Color Adjust Picture H. Position Refer to page 21. V. Position Clock Phase Language English Refer to page 22. - Page 19 ON SCREEN DISPLAY MENU Main Menu Submenu Reference Other Mode Refer to page 23. Vivid Movie Audio Volume Signal Source HDMI Aspect Ratio 16:9 AUTO Active Contrast Anti Blue Light ANTI-BURN-IN Reset Reset Refer to page 24. Note: Availability of some menu items depend on the input source signal. If the menu is not available, it is disabled and greyed out.
-
Page 20: Chapter 4: Adjusting The Lcd Monitor
Chapter 4: Adjusting the LCD Monitor CHAPTER 4: ADJUSTING THE LCD MONITOR 4.1 Colour Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Colour menu. Contrast Contrast Brightness... -
Page 21: Picture Setting
ADJUSTING THE LCD MONITOR 4.2 Picture Setting Note: This menu is only available if the input source is VGA. 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Picture menu. H. -
Page 22: Osd Setting
ADJUSTING THE LCD MONITOR 4.3 OSD Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the OSD menu. Language English Language English OSD H. -
Page 23: Other Setting
ADJUSTING THE LCD MONITOR 4.4 Other Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Other menu. Mode VIVID Movie Mode VIVID Movie... -
Page 24: Reset Setting
ADJUSTING THE LCD MONITOR 4.5 Reset Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Reset menu. Reset Reset 1920x1080 60Hz 1920x1080 60Hz 3. -
Page 25: Chapter 5: Appendix
Chapter 5: Appendix CHAPTER 5: APPENDIX 5.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The resolution or the refresh rate of √ Change the resolution or the the graphics card of the computer refresh rate of the graphics Out of range is set too high. -
Page 26: Troubleshooting
APPENDIX 5.2 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD monitor is turned ON. • Check if the power cord is properly connected to the LCD monitor. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •... -
Page 27: Transporting The Lcd Monitor
Press the latch(es) to detach the stand from the base mount. Then remove the stand. c. Press the latch to detach the base mount. Then remove the base mount from its compartment on the monitor. LW-22G LW-24G 2. Put the LCD monitor inside its original plastic. Then place the LCD monitor into the lower foam cushion. - Page 28 APPENDIX LW-22G LW-24G Note: • It is recommended to use the original packaging box. • When repacking, carefully place the LCD monitor in its box and protect the glass panel from touching any object.
-
Page 29: Chapter 6: Specifications
Chapter 6: Specifications CHAPTER 6: SPECIFICATIONS 6.1 Monitor Specifications LW-22G LW-24G Panel Panel Type LED-Backlit TFT LCD (VA Technology) LED-Backlit TFT LCD (VA Technology) Panel Size 21.5" 23.8" Max. Resolution FHD 1920 x 1080 FHD 1920 x 1080 Pixel Pitch 0.248 mm... -
Page 30: Monitor Dimensions
2 2 0 .0 1 6 .3 4 8 .6 1 9 7 .8 1 9 7 .8 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2020 AG Neovo. All rights reserved. LW4G00/LW2G00_UM_V011...
