Summary of Contents for AG Neovo L Series
-
Page 2: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY -------------------------------------------------- 2 SAFETY PRECAUTIONS -------------------------------------- 2-4 SPECIAL NOTES ON LCD MONITOR --------------------- 4 BEFORE YOU OPERATE THE MONITOR --------------------- 5 FEATURES -------------------------------------------------------- 5 CHECKING THE CONTENTS OF THE PACKAGE ----- 5 INSTALLATION INSTRUCTIONS --------------------------- 5 CONTROLS AND CONNECTORS -------------------------- 6 ADJUSTING THE VIEWING ANGLE ----------------------- 7 OPERATING INSTRUCTIONS ------------------------------------- 7... -
Page 3: For Your Safety
FOR YOUR SAFETY Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. SAFETY PRECAUTIONS FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) This device complies with Part 15 of the FCC rules.Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. - Page 4 PRECAUTIONS Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance.
-
Page 5: Special Notes On Lcd Monitor
WEEE DECLARATION Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.The separate collection and recycling of your waste equipment at the time of disposal... -
Page 6: Before You Operate The Monitor

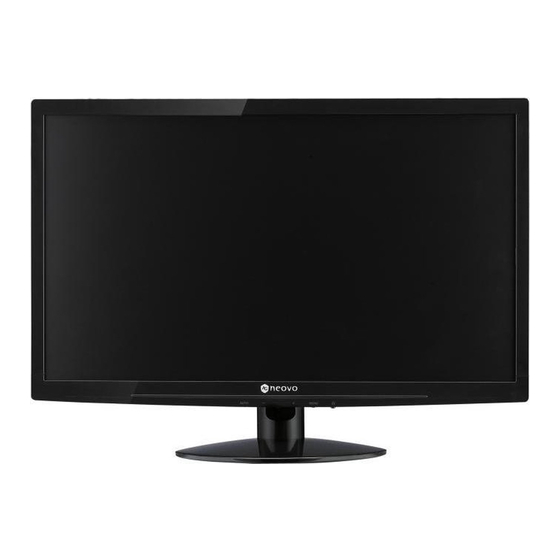

BEFORE YOU OPERATE THE MONITOR FEATURES • 54.69cm(21.53 inches) TFT Color LCD Monitor • 60.97cm(24 inches) TFT Color LCD Monitor • 68.6cm（27 inches）TFT Color LCD Monitor • Crisp, Clear Display for Windows • Recommended Resolutions: 1920x1080@60Hz. • Ergonomic Design • Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items:... -
Page 7: Controls And Connectors
Figure 1 Installing and Removing the Base Power Source: 1. Make sure that the power cord is the correct type required in your area. 2. This LCD monitor has an External universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.) 3. -
Page 8: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE • For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. • Hold the stand so you do not topple the monitor when you change the monitor’s angle. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. •... -
Page 10: Front Panel Control
FRONT PANEL CONTROL • Power Button: Press this button to turn the monitor ON or OFF, and display the monitor’s state. • Power Indicator: Blue — Power On mode. Orange — Standby mode. • MENU / ENTER: Activate OSD menu when OSD is OFF or activate/de-activate adjustment function when OSD is ON or Exit OSD menu when in Volume Adjust OSD status. -
Page 11: How To Adjust A Setting
HOW TO ADJUST A SETTING Press the MENU-button to activate the OSD window. Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press- or + again to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it. -
Page 12: Adjusting The Picture
ADJUSTING THE PICTURE The descriptions for function control LEDS Main Main Sub Menu Menu Description Menu Item Item Menu Icon Brightness Backlight Adjustment Contrast Contrast from Digital-register Standard Standard Mode Text Text Mode Internet Internet Mode Luminance Game Game Mode Movie Movie Mode Sports Sports Mode... - Page 13 Main Main Sub Menu Menu Description Menu Item Item Menu Icon Recall Warm Color Temperature Warm from EEPROM Recall Normal Color Temperature Normal from EEPROM Recall Cool Color Temperature Cool from EEPROM Color Temp. Recall SRGB Color Temperature sRGB from EEPROM User-B Blue Gain from Digital-register User User-G Green Gain Digital-register...
- Page 14 Main Main Sub Menu Menu Description Menu Item Item Menu Icon Frame Size Adjust Frame Size Brightness Adjust Frame Brightness Contrast Adjust Frame Contrast Picture Adjust the horizontal position of H.Position Boost Frame Adjust the vertical position of V.Position Frame Bright Frame on or off Disable or Enable Bright Frame Adjust the horizontal position of H.Position...
-
Page 15: Plug And Play
PLUG AND PLAY Plug & Play DDC1/2B Feature This monitor is equipped with VESA DDC1/2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 16: Technical Support(Faq)
TECHNICAL SUPPORT (FAQ) Problem & Question Possible Solution Power LED is not on *Check if the Power Switch is in the ON position *Power Cord should be connected No Plug & Play *Check if the PC system is Plug & Play compatible *Check if the Video Card is Plug &... -
Page 17: Error Message & Possible Solution
ERROR MESSAGE & POSSIBLE SOLUTION CABLE NOT CONNECTED : Check that the signal-cable is properly connected , If the connector is loose, tighten the connector’s screws. Check the signal -cable connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode ,set the computer to display mode given in the following table.(page18) -
Page 18: Appendix
APPENDIX SPECIFICATIONS Driving 21.5” TFT Color 24” TFT Color 27” TFT Color LCD, system LCD, With LED LCD, With LED With LED Backlight Backlight Backlight LCD Panel Size 54.69cm 60.97cm 68.6 cm Pixel pitch 0. 248mm( H )x 0. 27675mm( H )x 0.3114mm(H)x 0.248mm( V ) 0.27675mm( V ) -
Page 19: Factory Preset Timing Table
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION Frequency(KHz) Frequency (Hz) 640×480 @60Hz 31.469 59.940 640×480 @67Hz 35.000 66.667 640×480 @72Hz 37.861 72.809 640×480 @75Hz 37.500 75.000 Dos-mode 720×400 @70Hz 31.469 70.087 800×600 @56Hz 35.156 56.250 800×600 @60Hz 37.879 60.317 SVGA 800×600 @72Hz 48.077 72.188... - Page 20 15 - Pin Color Display Signal Cable PIN NO. DESCRIPTION PIN NO. DESCRIPTION +5V/Sense(+5V) Green Monitor Gnd Blue Logic Gnd Logic Gnd DDC serial data Detect cable H sync Red Gnd V sync Green Gnd DDC serial Clk. Blue Gnd 24 - Pin Color Display Signal Cable PIN NO.
- Page 21 HDMI Signal Cable SIGNAL NAME SIGNAL NAME SIGNAL NAME TMDS Data 0 TMDS Data 2+ Shield TMDS Data TMDS Data 0 Shield DDC/CEC TMDS Clock + TMDS Data 2 Ground TMDS Clock TMDS Data 1+ +5V Power Shield TMDS Data Hot Plug Detect TMDS Clock 1Shield...
