AG Neovo E-17 User Manual

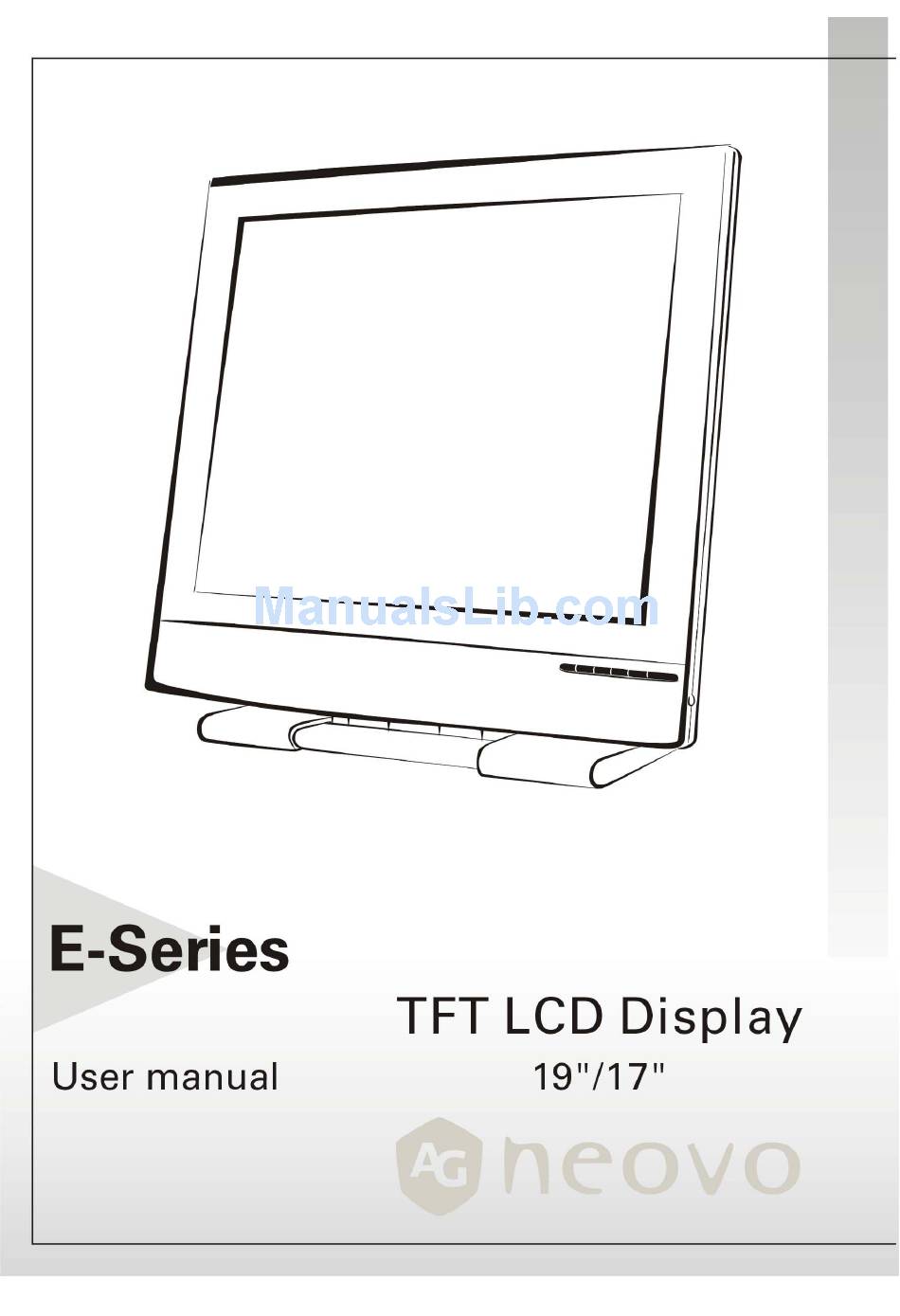

17/19" tft lcd display
Hide thumbs Also See for E-17:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-17 and is the answer not in the manual?

Questions and answers

Related Manuals for AG Neovo E-17

Summary of Contents for AG Neovo E-17

  • Page 2: Table Of Contents

    Table of Contents Notes Before Use ....................2 Installation......................2 Connecting to Power ................... 2 Maintenance......................2 Delivering Your LCD display ................2 Adjusting Your LCD display Viewing Angle ............3 Base Lock......................3 Wall Mount......................4 Getting Started......................5 Unpacking Your LCD Display................

  • Page 3: Notes Before Use

    Notes Before Use Installation • Do not cover or block the vent at the back of the LCD display. • Keep LCD display away from direct sunlight or heat source, e.g., electrical heater or radiator. Avoid dust, mechanical vibration or shock. Connecting to Power •...

  • Page 4: Adjusting Your Lcd Display Viewing Angle

    Adjusting Your LCD display Viewing Angle You can adjust your LCD display between 5°~25° by holding the top of the panel with both hands and pushing back and forth to adjust the viewing angle to the desired angle. Base Lock If you want to bend up the base to 90 degrees for transportation, please push the 2 metal pillars on the bottom of base and fold to 90 degrees as shown in the illustration below.

  • Page 5: Wall Mount

    Wall Mount If you want to mount your LCD display on the wall, please follow the steps described below using the wall mount kit or arm.. First, remove rear cover Insert a coin or flat screwdriver into the rear cover slot and pull out the rear cover. Second, unlock base assembly Unlock two screws Remove base assembly...

  • Page 6: Getting Started

    Getting Started Unpacking Your LCD Display After you have unpacked your LCD display, make sure that the following items are included in the package. • LCD display • Adaptor (Must use one of the following adaptors: Linearity LAD6019AB4, or Li Shin LSE0217B1250) •...

  • Page 7: Control Buttons

    Control Buttons Front View ON/OFF Button Push once to turn your LCD display ON and push again to turn it OFF. Power LED The power LED will turn to green under normal operation and orange when in standby mode. Auto Adjustment The auto adjustment function will automatically tune your LCD display to the optimal performance, including screen size, color, brightness and contrast.

  • Page 8: Installation

    Installation Connecting LCD Display to PC (Analog)— Remove all the packages from the panel. Place your LCD display in a suitable place. Make sure that there is enough space for adjustment, especially the rear of the panel. Turn off your PC and connect the D-sub 15-pin VGA cable included in the package to the VGA port on your PC.

  • Page 9: Adjusting Your Lcd Display

    Adjusting Your LCD Display In the OSD menu, you will find all kinds of features to help you adjust your LCD display to the optimal performance. Important! Though manual adjustment of the LCD display is available, we strongly recommend that you use the panel’s auto adjustment function.

  • Page 10: Osd Transparency

    OSD Transparency • Select Transparency OSD in the OSD Adjust menu to adjust the transparency of OSD window. • Push button to adjust value between 0 and 100. Phase & Clock • Select Clock and Phase in the Display Adjust menu to modify the distortion of video signal.
  • Page 11 Recall • Select Recall to reset all features to default settings. • Push button to Recall. Language • Select Language in the OSD Adjust menu to choose a desired language for the OSD. • Push button to select; options are displayed at the bottom of the OSD window.

  • Page 12: Warning Messages And Troubleshooting

    Warning Messages and Troubleshooting Warning Messages When a warning message appears on the screen, check the following items to locate the problem affecting your LCD display. NO SIGNAL INPUT When no input signal is detected from any input ports. • Check if your PC or video source is ON.

  • Page 13: Troubleshooting Guide

    Troubleshooting Guide Symptoms Check • • No display Check if the power of your LCD display is ON. • • Power LED is off Check if the adaptor is correctly connected to your LCD display. • Check if the power cord is correctly connected to the adaptor.

  • Page 14: Specification

    Specification 19” Size 19’’ (480 mm) diagonal Panel Resolution (max.) 1280 x 1024 Horizontal: 24kHz – 80kHz, Frequency Vertical: 49Hz - 75Hz Input Signal Pixel Clock (max.) 135 MHz Connector Power Supply 3-Pin AC Plug Swivel Range Adjustable 5º - 25º Weight 7.3 Kg (16.1 lb) 100 ~ 240V,...

  • Page 15: Canada

    CANADA This FCC Class-B compliant digital device complies with the Interference-Causing Equipment Regulations of Canada. FCC Declaimers This device complies with Section 15 of the FCC listing. The operation procedures must meet the following conditions: (1) this device must not cause any damaging interference; and (2) this device must accept any received interference, including any unpredictable interference that may possibly occur.

  • Page 16: Information For Users Applicable In European Union Countries

    Information for users applicable in European Union countries The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources.

  • Page 17: Tco'95

    TCO'95 Congratulations! You have just purchased a TCO'95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 18 S-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'95 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).

This manual is also suitable for:

E-19E series
