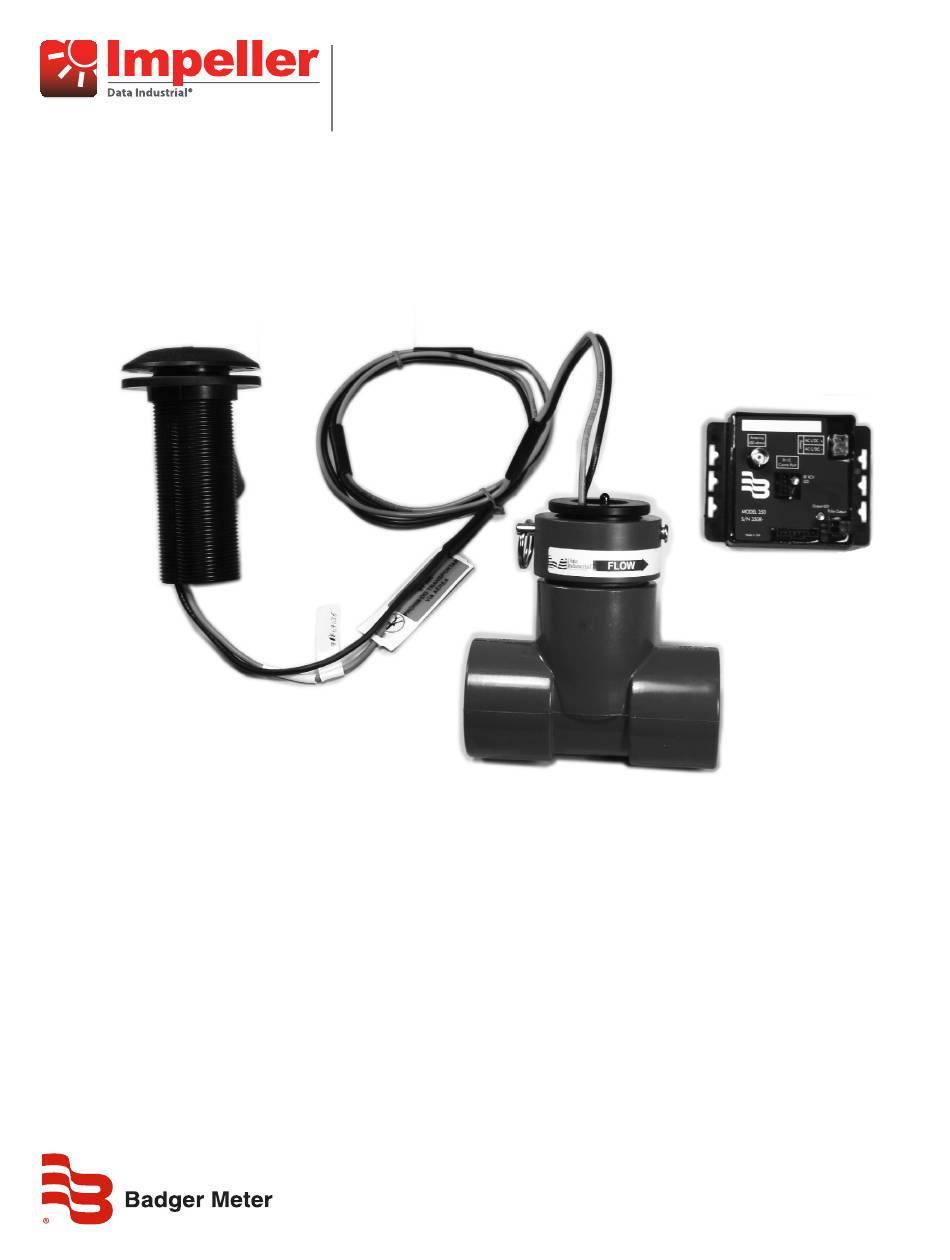

- Page 1 Flow Sensors Wireless Flow Sensor System Series 228PV User Manual SEN-UM-01662-EN-05 (March 2017)
-
Page 2: Table Of Contents
Flow Sensors, Wireless Flow Sensor System CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Series 228PV Wireless Flow Sensor . -
Page 3: Introduction
Introduction INTRODUCTION The Series 228PV wireless flow sensor system from Badger Meter® consists of the flow sensor mounted in a tee (flow sensor assembly), ORION® radio frequency (RF) transmitter complete with mounting kit, and ORION RF receiver/pulse transmitter . This system eliminates the need for expensive signal wires from the sensor output . -
Page 4: Series 228Pv Wireless Flow Sensor
Introduction Figure 1: Series 228PV wireless flow sensor system Series 228PV Wireless Flow Sensor The four-bladed impeller design is rugged, non-fouling and does not require custom calibration . Coupled with the proprietary patented digital detection circuit, the sensor measures flow rate from 1 foot per second (fps) to more than 20 fps, regardless of conductivity or turbidity of the liquid . -
Page 5: Installation
5 x I.D. Figure 2: Typical wireless flow sensor installation Badger Meter flow sensors are designed to operate reliably under adverse conditions, but the following recommendations should be followed to ensure maximum system accuracy . 1 . Choose a location along the pipe with a length equivalent... -
Page 6: Wireless 228Pv Plastic Tee Sensor And Transmitter Mechanical Installation
Installation Wireless 228PV Plastic Tee Sensor and Transmitter Mechanical Installation 1 . Note the intended direction of flow as indicated by the arrows on the tee . Make sure there is free, unrestricted pipe for at least 10 diameters upstream and 5 diameters downstream of the tee . OTEE: Cable length between the sensor and wireless transmitter is 5 feet . -
Page 7: Antenna Installation
Antenna kits are an optional accessory and can be ordered by specifying the appropriate model number from the “” on page 3 . Badger Meter offers two antenna kits: the A355LP low profile antenna kit and the A355 whip style antenna kit . •... -
Page 8: Wireless Receiver Electrical Installation
Installation Figure 8 Figure 9 for suggested antenna installation, mounting hole sizes, and component part numbers . OTEE: Antenna cable lengths of more than 3 feet will negatively affect signal strength . Antennas operate more effectively when well grounded (with a 3 inch (76 mm) diameter ground plane) . Use the grounding washers included in both installation kits . -
Page 9: Theory Of Operation
. The RF receiver then generates a continuous burst of output pulses with a duty cycle of 50% . These pulses can be scaled using the DIC Com Port and Badger Meter software to represent the desired volume unit, number of volume units per pulse, and pulse width that best fit the application . -
Page 10: Programming
Programming Software Installation Communications Cable Wiring To change parameters in the wireless receiver or sensor, a Badger Meter Model A301W Programming Kit (consisting of a custom cable, IR dongle, and software) and a computer (PC) running Windows® 7 or XP is required . - Page 11 Programming 6 . Click Poll Now to update the current values . 7 . Select Configuration> Parameters to open the Parameters screen . You can also select the Parameters button . See Figure Figure 14: Select Parameters 8 . Program the wireless receiver using the Parameters screen in Figure 15 as a reference .
-
Page 12: Wireless Flow Sensor Programming
Output is not recommended because it will decrease transmitter battery life and can affect transmitter operation . Badger Meter sensors will operate both above and below the suggested flow range for each tee size . Test results have shown, however, that the highest accuracy and best repeatability are achieved in the suggested flow range . - Page 13 Programming Programming New Flow Sensor Values To change the settings of the wireless sensor, use the programming software to enter new values as outlined here . 1 . Start the programming software . 2 . Connect the infrared cable (IR cable) to the computer . 3 .
- Page 14 Programming 6 . Select Configuration> Parameters to open the Parameters screen . You can also select the Parameters button . Figure 19 . Figure 19: Select Parameters 7 . Program the wireless flow sensor using the Parameters screen in Figure 20 as a reference .
-
Page 15: Specifications
Specifications SPECIFICTTIONS Wetted Materials (Except Tee) Refer to the Ordering Matrix Schedule 80 PVC per ASTM D-2462 and D-2467 . Virgin, unplasticized PVC resin, Type Tee for 228PV 1 cell classification 12454-B . Fittings and solvent carry approval for potable water by NSF and IAMPO . - Page 16 The Americas | Badger Meter | 4545 West Brown Deer Rd | PO Box 245036 | Milwaukee, WI 53224-9536 | 800-876-3837 | 414-355-0400 México | Badger Meter de las Americas, S.A. de C.V. | Pedro Luis Ogazón N°32 | Esq. Angelina N°24 | Colonia Guadalupe Inn | CP 01050 | México, DF | México | +52-55-5662-0882 Europe, Eastern Europe Branch Office (for Poland, Latvia, Lithuania, Estonia, Ukraine, Belarus) | Badger Meter Europe | ul.
