Summary of Contents for Badger Meter 380CS

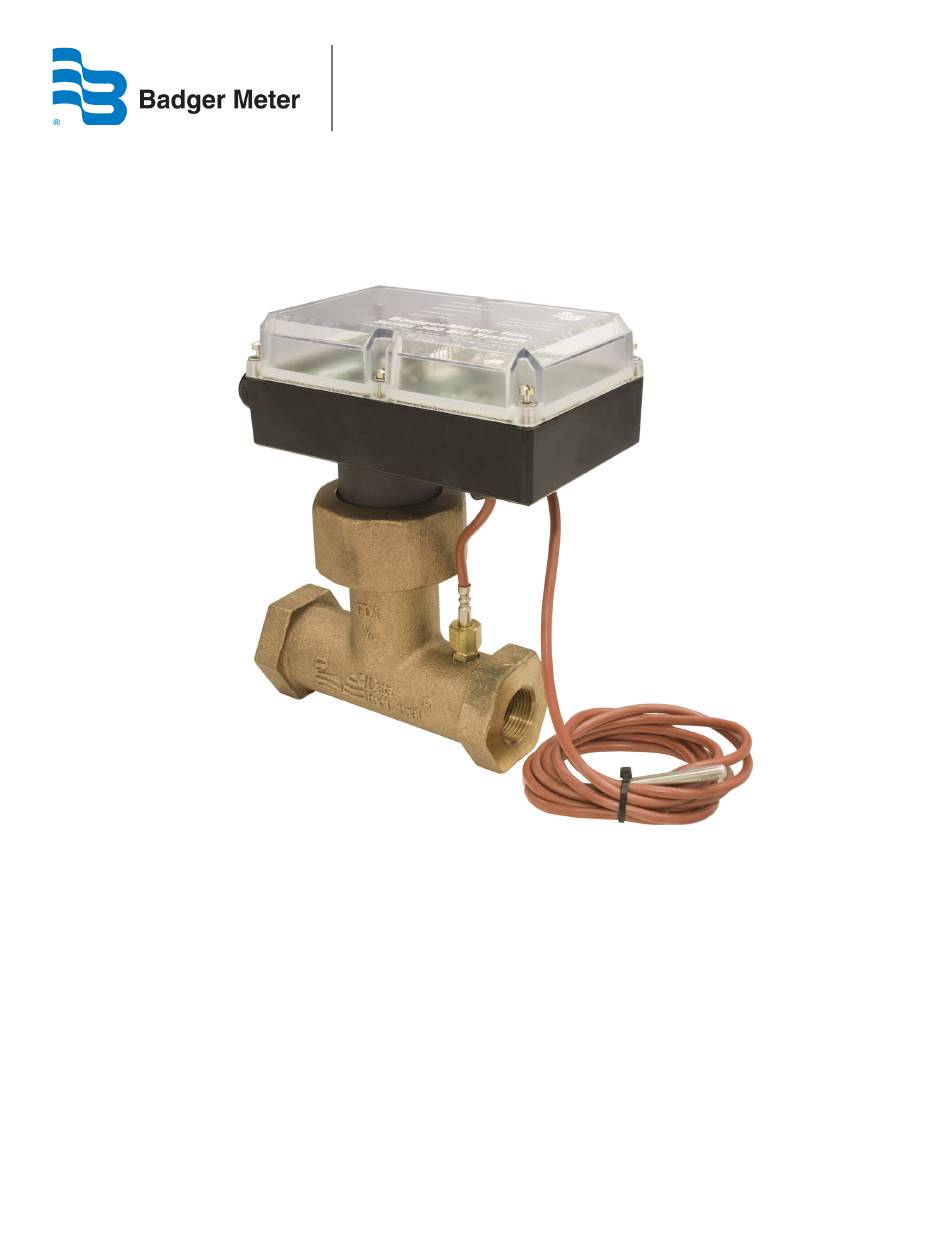

- Page 1 Series 380 Impeller Btu System 380CS/HS IMPORTANT: This manual contains important information. READ AND KEEP FOR REFERENCE. Installation & Operation Manual PN: 880102-0001 Rev. 4 (7-11)
- Page 2 Series 380 Impeller Btu System Page ii 7-11...
-
Page 3: Table Of Contents
Installation & Operation Manual CONTENTS INTRODUCTION ..............................MECHANICAL INSTALLATION ..........................General ....................................6 Installing the Sensor Tee ................................ 6 ELECTRICAL INSTALLATION ........................... COMMISSIONING ..............................RS-485 Network Configurations ............................8 RS-485 Network Configurations– Modbus......................8 RS-485 Network Configuration – BACnet ......................9 SPECIFICATIONS .............................. - Page 4 Series 380 Impeller Btu System Page iv 7-11...
-
Page 5: Introduction
Installation & Operation Manual INTRODUCTION The Data Industrial® Series 380 Btu System from Badger Meter provides a low cost solution for metering cold or hot systems. The 380CS/HS can accurately measure flow and temperature differential to compute energy. Utilizing BACnet™ or Modbus®... -
Page 6: Mechanical Installation
A sensor located in the pipe can be affected by air bubbles, floating debris, or sediment may not achieve full accuracy and could be damaged. Badger Meter flow sensors are designed to operate reliably under adverse conditions, but the following recommendations should be followed to ensure maximum system accuracy. -
Page 7: Commissioning
Installation & Operation Manual COMMISSIONING All setup and commissioning of the Series 380 is done using a USB to Mini USB cable and the Badger Meter Series 380 commissioning software. Figure 2 shows the main setup screen. Flow and Energy rates and totals can be selected or a custom unit can be put in with the correct conversion factor. -
Page 8: Rs-485 Network Configurations
Series 380 Impeller Btu System RS-485 Network Configurations The RS-485 Section can be configured in two ways: - Modbus - BACnet The following sections explain each in detail. RS-485 Network Configurations– Modbus Figure 4: Comm Parameters - Modbus Select Modbus, to access the Modbus pull down menus. Select the Address, Bit Rate (Baud Rate) and Mode (RTU or ASCII). -
Page 9: Rs-485 Network Configuration - Bacnet
Installation & Operation Manual Modbus Register Map Series 380 Register Map Register Name Address Data Type Read/Write Sensor Temperature 40001 + 40002 IEEE 754 Float Read Only Remote Sensor 40003 + 40004 IEEE 754 Float Read Only Flow Rate 40005 + 40006 IEEE 754 Float Read Only Flow Total... - Page 10 Series 380 Impeller Btu System Series 380 BACnet Object Map Description Name Units Analog Input TempIn ºC, ºF Analog Input TempOut ºC, ºF gpm, gph, lpm, lps, lph, Analog Value VolFlow /s, ft /m, ft /h, m /min, m /h, custom kBtu/min, kBtu/h, kW, Analog Value EnergyFlow...
-
Page 11: Specifications
Inputs Power: Isolated 12-24 V DC/V AC ±10% RS-485 is non-isolated to prevent ground faults. Do not share power with other devices. Badger Meter A1028 plug-in type 120 VAC/12 V DC power supply recommended. Communication: Modbus RTU BACnet MSTP Output... -
Page 12: Sensor Body Sizes
Series 380 Impeller Btu System Sensor Body Sizes Tee Sizes: 0.75", 1", 1.25", 1.5", and 2" NPT Recommended Design Flow Range: 1 to 15 FPS Accuracy Flow Calculation: ±2% of flow rate within flow range ±0.5% Repeatability RTD Meets IEC751 Class B Output Pulse Width 10, 50, 150, 200, 250, 500mS Page 12... - Page 13 Installation & Operation Manual Intentional Blank Page Page 13 7-11...
- Page 14 Copyright 2011, Badger Meter, Inc. All rights reserved. Due to continuous research, product improvements and enhancements, Please see our website at www.badgermeter.com Badger Meter reserves the right to change product or system specifications without notice, except to the extent an outstanding contractual obligation exists. for specific contacts.
