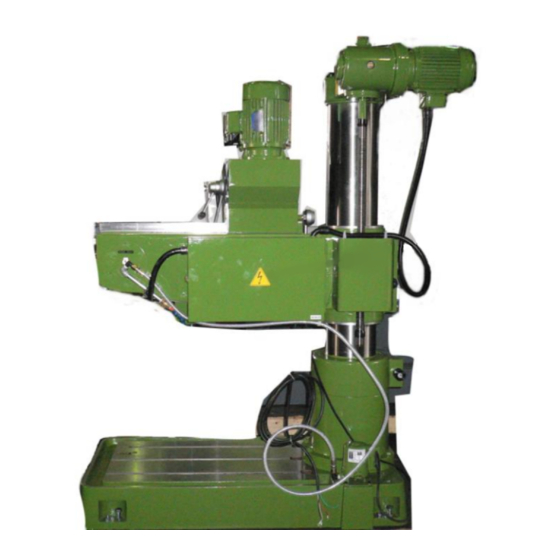

CRDM 3040x920
CRDM 3040x1100
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRDM 3040x920 and is the answer not in the manual?

Questions and answers

Related Manuals for Huvema CRDM 3040x920

Summary of Contents for Huvema CRDM 3040x920

  • Page 1 RADIAL DRILLS CRDM 3040x920 CRDM 3040x1100 Operation Manual...

  • Page 2: Table Of Contents

    CHAPTER 2 General specifications ………………………………………….….. The anticipated machine life..…………………………………………... Machine dimensions..…………………………………………………... The machine...…………………………………………….…………….. 2.3.1 Description….………………………………………………………..…. 2.3.2 Parts...…………………………………………………………………… I CRDM 3040x920 ………………….………………….…………. II CRDM 3040x1100 …………………………………….………….. Specifications …………………………………………………………. 2.4.1 CRDM3040x920 specification ………………………………………. 2.4.2 CRDM 3040x1100 specification ………………………………………… . Standard and Option Accessories….…………………………………….
  • Page 3 4.1.2 Packaging……………………………………………………………….. Section Content page Transportation..……………………………………………………….… 4.2.1 The diagram of the machine weight and its gravity center...…………… 4.2.2 The movement of the machine……. …………………………………… 4.2.3 The order to pack..……………………………………………………… Installation of the machine..…………………………………………….. 4.3.1 Have the machine set onto the fastening bolts of the crate base...……… 4.3.2 Level adjusting…………………………………………………………..
  • Page 4 II Change spindle speed…………………………………………………... 5-26 5-27 III The speedometer at the time when the pole switch is in low position….. Section Content page 5.12 Automatic Feed...……………………………………………………….. 5-28 5-28 5.12.1 Automatic feed rate table……………………………………………….. 5.12.2 Change the feed rate as the following way……………………………... 5-28 5.12.3 Suppose that the work piece is by the machine.………………………...
  • Page 5 Electrical main part list (CRDM 3040x1100 CE Standard)……………. Earth System Diagram(CRDM 3040x920 CE Standard) ……………… Electrical circuit diagram(CRDM 3040x920 Standard)…………………. Electrical main part list (CRDM 3040x920 Standard) ………………… Electrical circuit diagram(CRDM 3040x1100 Standard)………………. Electrical main part list (CRDM 3040x1100 Standard)………………...

  • Page 6: Chapter 1 Safety Guidelines

    CHAPTR 1 Safety Guidelines 1.1 Please follow the below basic safety principles﹕ (1) Have only sophisticated or experienced personal perform the machine operation or maintenance. (2) Please read and understand the operation manual thoroughly before operation. (3) Please place the manual close to the machine for easy access. (4) Please have only authorized person keep the keys to the machine.

  • Page 7: Precautions For Operation

    1.3 Precautions for operation: (1) Please don’t remove any protection guard or any safety installation. (2) Please don’t remove or alter any location of the limit switches, restraint blocks or interlocking mechanisms. (3) Don’t touch any switch with wet hand. (4) Please don’t put any part of your body on the moving parts of the machine or near to them.

  • Page 8: Warning Labels And Mark On The Machine

    1.5 Warning labels and mark on the machine 1.5.1 Warning labels and mark introduction labels Description Please secure the machine with the base fixing bolts, to prevent from any risk. 台勵福股份有限公司  台品工業股份有限公司 TAI PIN INDUSTRIAL CO., LTD 機型號碼 MODEL NO. Model of a machine.
  • Page 9 T E L : 8 8 6 - 4 - 2 5 6 6 6 1 0 0 F A X : 8 8 6 - 4 - 2 5 6 7 1 6 7 0 b-1. The rear view (For CRDM 3040X920)
  • Page 10 b-2. The rear view (only for CRDM3040x1100) C. Oil filler position and Oil Drain outlet position  Gearbox...
  • Page 11  Arm elevating motor (For CRDM-3040X920)  Arm elevating motor (For CRDM 3040x1100)

  • Page 12: Chapter 2 General Specifications

    CHAPTER 2 General Specifications 2.1 The anticipated machine life. The calculation of the anticipated machine life: 8 hours x 6 days x 50 weeks x 10 years = 24000 hours. The above calculation is based on a sound maintenance and normal condition, excluding wearing parts.

  • Page 13: The Machine

    Note 1: Processing magnesium alloy may cause fire. 2.3.2 Parts Ⅰ. For CRDM 3040x920 There are six categories of parts on the radial drill: Gearbox, Arm, Column, Top Cover, Box Table and Base. The following are its description and locations.
  • Page 14 Ⅱ. only for CRDM 3040x1100 There are six categories of parts on the radial drill: Gearbox, Arm, Column, Top Cover, Box Table and Base. The following are its description and locations. 1. Base The main aim of the base is to support the whole weight of the machine.

  • Page 15: I Crdm 3040X920

    2.4 Specifications. 2.4.1 CRDM 3040x920 specification. CRDM 3040x920 The Column diameter 210mm Distance from the Column surface to the Spindle center, max. 950mm Distance from the Column surface to the Spindle center, min. 220mm Horizontal travel of the Spindle head.

  • Page 16: Crdm 3040X1100

    2.4.2 CRDM 3040x1100 specification. CRDM 3040x1100 The Column diameter 260mm Distance from the Column surface to the Spindle center, max. 1100mm Distance from the Column surface to the Spindle center, min. 280mm Horizontal travel of the Spindle head. 820mm Distance from the Base surface to the Spindle end, max. 1270mm Distance from the Base surface to the Spindle end, min.

  • Page 17: Standard And Option Accessories

    2.5 Standard and Option Accessories. (1) Standard Accessories: Adjusting tools（including tool box） Cooling equipment（including pump） Lighting installation（including fluorescent lamp） Box table (2) Option Accessories: Tilt worktable 2.6 Operation position and noise level. 2.6.1 Operation position: about 1 meter far from the gearbox surface. Height: 1.6 meter from the ground.

  • Page 18: Chapter 3 Preparation To Install

    Adjusting level is needed before using this machine. The level adjusting tolerance must be within 1 mm/m. a. For CRDM 3040x920 floor diagrams. (Unit : mm) The above diagrams are for the bases and ground bolts, as well as its relative positions of CRDM 3040x920.

  • Page 19: Space Requirement

    3.1.2 Space requirement For safety reason, Path must be considered when installing. For space, it requires: Its calculation is the area of the arm rotating 360 degree, the most outer circle and plus 1000 mm. Different models has different dimensions. Total space The distance from the column Plus maintenance area...

  • Page 20: Environment Requirement

    The Peak value : 200% or less than the line voltage of the actual value(rms. value) Duration: 1.5m.sec or less e. Acceptable AC voltage of the waveform distortion. f. Acceptable imbalance of the line voltage: 5% or less g. Power capacity table Ⅰ.For CRDM 3040x920 Main Motor 1.5Kw Elevating Motor 0.75Kw Coolant Pump Motor 0.1Kw...

  • Page 21: Electric System Calculation

    3.4 Electric system calculation 3.4.1 For CRDM 3040x920 Motor Part Name Rated Power Capacity Maximum Initiate Power Main Motor 1.5kw 4.2kw Elevating Motor 0.75kw 2.1kw Coolant Pump Motor 0.1kw 0.28kw Total Rated Power Capacity: (1.5kw+0.75kw+0.1kw)=2.35kw…………………..(1) Maximum Total Initiate Power Capacity: (4.2kw+2.1kw+0.28kw)=6.58kw…………………..
  • Page 22 3.4.2 For CRDM 3040x1100 Motor Part Name Rated Power Capacity Maximum Initiate Power Main Motor 2.25kw 6.3kw Elevating Motor 0.75kw 2.1kw Coolant Pump Motor 0.1kw 0.28kw Total Rated Power Capacity: (1.5kw+0.75kw+0.1kw)=3.1kw………………….. (1) Maximum Total Initiate Power Capacity: (4.2kw+2.1kw+0.28kw)=8.68kw…………………..(2) Transformer Rated Output Power Capacity for Control Circuits Model Item 100VA...

  • Page 23: Chapter 4 Transportation And Installation

    CHAPTER 4 Transportation and Installation. 4.1 Disassembly and packaging. 4.1.1 General Electrical equipment should be designed to stand transportation and storage under the temperature between -25℃ and+55℃. If this is impossible, proper measurements must be taken to endure the high temperature. The criteria for this measurement is that it can withstand the affection of the high temperature of +70℃...

  • Page 24: Transportation

    4.2 Transportation. 4.2.1 The diagram of the machine weight and its gravity center. The weight differ due to the different models. Their data is as blow: MODEL 3040x920 3040x1100 Total Weight 1400 kg 1950 kg Required Forklift 2 tons 2.5 tons Note: Please make sure that the forklift tonnage is suitable for the machine.

  • Page 25: The Order To Pack

    4.2.3 The order to pack Please pack according the following procedure: 1. Place the base plate 1 under the machine and have both the plate and the machine fastened with bolts. 2. Install the side plate 2. 3. Install the side plate 3. 4.

  • Page 26: Installation Of The Machine

    4.3 Installation of the machine. 4.3.1 Have the machine set onto the fastening bolts of the crate base. (1) Tools Sling, lifting equipment, spanner, movement plate, insertion blocks and level adjusting blocks. (2) Procedure a. After dismantling the wooden crate, get the manuals and tool box out. b.

  • Page 27: Level Adjusting

    4.3.2 Level adjusting. (1) Tools a. A level scale, with tolerance within 0.02mm/m b. Spanners, Level adjusting blocks. (2) Procedure a. Please adjust the level adjusting bolts to contact the level adjusting blocks. b. Have the level scale put on the worktable. c.

  • Page 28: The Test After Installation

    4.4 The test after installation. a. Have the main power on. b. Press the emergent stop button to see whether it stops immediately. c. Power on again. d. Please check whether the motor is running smoothly. If there is any errors, Please select two of the wires L1, L2 and L3 and change its position.

  • Page 29: Chapter 5 Operation

    CHAPTER 5 Operation 5.1 A brief introduction to the relevant operation hardware. 5.1.1 ( For CRDM 3040x920)
  • Page 30 The relevant terms. ( For CRDM 3040x920) Term Description It is to secure the rotation position of the Arm on the 1 Column clamping lever Column. e.g. after arm is rotated to a certain degree, you use this lever to secure the Arm on the Column.
  • Page 31 It indicated the depth of the drilling. Its scale range is less 8 Main dial than 100 mm. It helps you fine dial when the Main Dial is not enough 9 Auxiliary dial precision for drilling a certain depth. Its scale range is less than 220 mm.

  • Page 32: For Crdm 3040X1100)

    5.1.2 ( For CRDM 3040x1100) The front view...
  • Page 33 The rear view The relevant terms. ( For CRDM 3040x1100) Term Description It is to secure the rotation position of the Arm on the 1 Column clamping lever Column. e.g. after arm is rotated to a certain degree, you use this lever to secure the Arm on the Column.
  • Page 34 Handle, for rotating the It requires the smallest strength and it is the safest way to Arm. rotate the Arm. It indicated the depth of the drilling. Its scale range is less 8 Main dial than 100 mm. 9 Lever, for feed trip. It is to start or stop the automatic Knives Feeding.

  • Page 35: Safty Protective Device

    5.1.3 Safty protective device (suit every model) Term Description For to avoid debris fly off. When spindle making the drilling bit,the Safety Protective cover must be close. Another for safety, the spindle must stop Cover rotation, when the cover is open. The limit switch is controlled by safety protective cover’s open or close.
  • Page 36 5.2 Instruction to switches. Ⅰ.( For CRDM 3040x920)(Type I) The front view Description for Switches. ( For CRDM 3040x920)(Type II) The rear view...
  • Page 37 The rear view 1. Power-on light It lights when it powers on. It is a switch to start on or off the lubrication when at boring, where the boring or shearing causes high temperature, making the drilling The cutting fluids bit easy to wear.

  • Page 38: For Crdm 3040X1100)

    Ⅱ.FOR CRDM 3040x1100(Type I) Description for Switches. For CRDM 3040x1100 (Type I) It is for operator’s understanding whether the working situation is 1. Electric current meter normal. It lights when at feeding. After work finished and power off, it turns 2.
  • Page 39 Ⅱ.For CRDM 3040x1100 ( Type II Description for Switches. For CRDM 3040x1100 (Type II) It is for operator’s understanding whether the working situation is 1. Electric current meter normal. It lights when at feeding. After work finished and power off, it turns Feeding light off .

  • Page 40: Installation Of The Clamp（Work Piece

    5.3 Installation of the clamp（work piece） 5.3.1 General Work piece must be placed securely and precisely on the radial drill so that precision and safe procession can be achieved. Regularly, a vise is applied. (as shown picture a). Since the vise has its range limit, universal clamp (as shown picture b) is applied for bulky work piece or any work piece which isn’t easy to be clamped.

  • Page 41: Universal Clamp And The Clamping Of The Work Piece

    5.3.3 Universal clamp and the clamping of the work piece. （1） Hex nuts （2） T shape chamfer nuts （3） Stacking plate （4） Twin head bolts （5） Insertion block （6） Ladder block Clamp the work piece as the following： （Since the combination of the universal clamp is very flexible and abundant, The following diagram is applied as an exemplary description.
  • Page 42 Examples of clamping, using the universal clamp. 5-14...

  • Page 43: Installation And Change Of The Drilling Bit

    5.4 Installation and change of the drilling unit. The radial drill is mainly used in drilling. How to clamp the drilling bit is therefore very important. Generally, drilling bits divides into two kinds, one is straight handle drilling bit, and another is tapered handle one. (as fig. A). Their clamping is very different.

  • Page 44: The Assembly And Disassembly Of The Drilling Head And Clamp

    5.4.1 The assembly and disassembly of the drilling head and clamp Fig. a. Fig. b. Fig. c. Term Revolving shaft. Shaft bushing Speedy drill bit clamp The stem for the speedy drill bit clamp Pin for releasing drill bit Drill shaft end Drilling shaft Fig.
  • Page 45 Assemble the drill bit head and the drill bit clamp as the following: a. Move away the drilling bit or lift the gearbox to the utmost point. b. Power off. c. Put on gloves. d. Insert a thick wood plate into the underneath of the drill bit and the drill bit clamp. Rotate the feed trip lever clockwise and have the spindle descend about 150 to 200 mm.

  • Page 46: The Assembly And Disassembly Of The Straight Handle Drill Bit

    5.4.2 The assembly and disassembly of the straight handle drill bit Fig. a. Fig. b. No. Term (1) Drill bit (2) Drill spanner (3) Tightening ring (4) Hole for drill spanner. (5) Drill bit clamp head. Disassemble the straight drill bit as the following way: a.

  • Page 47: Power On And Off

    5.5 Power on and off. 5.5.1 Power on a. Turn outside main switch to ”ON” position. b. Turn the machine power switch to ”ON” position. 5.5.2 Power off a. Turn the machine power switch to ”OFF” position. b. Turn outside main switch to ”OFF” position. Precaution When at emergency, please press down the emergent stop button to shut down the power supply.

  • Page 48: Elevating The Arm

    Picture on the right hand . Shown No.2 Please switch down the “cross switch” or Push the “down”button No3. Arm down or down. (For CRDM 3040x920) (For 3040x1100)( Type I) (For 3040x100)( Type I) Revolve the arm clamping lever clockwise to tighten it as shown in fig.

  • Page 49: Rotate The Arm Right Or Leftwards

    5.9 Rotate the arm right or leftwards. (For CRDM 3040x920) (For CRDM 3040x1100) Steps Description Push the head lever downwards to release, as shown in picture 1. Rotate the hand wheel clockwise to move rightwards and counter clockwise to move leftwards, as shown in picture 2.

  • Page 50: Rotate The Arm To Or Backwards

    5.10 Rotate the arm forward or backwards. Steps Description Diagrams Rotate the arm clamping lever counter clockwise to release it, as shown in picture 1. Push the arm moving lever backwards to move the arm backwards, as shown in picture 2. Pull the arm moving lever towards to move the arm towards, as shown in picture 2.

  • Page 51: Change The Spindle Speed

    So please do not set the spindle speed at high rotation mode when no movement of the quill. 5.11.1 For CRDM 3040x920 Ⅰ. Speedometer Two speed change lever（low speed）...

  • Page 52: Change Spindle Speed

    Ⅱ. Change spindle speed Pic. a. Pic. b. Term Description 1. Three speeds change lever 2. Two speeds change lever High and low speeds change lever. Indicating ring for high and It is to indicate the current speed. low speed. Reference point for the three It refers to the current position of the three speeds change speeds change lever...

  • Page 53: For Crdm 3040X1100

    5.11.2 For CRDM 3040x1100 Ⅰ. The speedometer at the time when the pole switch is in high position. pole The position for the switch. Two speed change lever（low speed） Speed change levels Speed（rpm） Suitable Mild steel 25-40 19-25 12-19 drilling Cast iron 38-55 28-38...

  • Page 54: Change Spindle Speed

    Ⅱ. Change spindle speed Pic. b. Label 6 of detail If the pole switch to high position, its 8 pole. If the pole switch to “OFF” position, the motor can’t turn run. If the pole switch in high High position, its 4 pole. Normal, switch to high position.
  • Page 55 Ⅲ. The speedometer at the time when the pole switch is in low position. pole The position for the switch. Two speed change lever（low speed） Speed change levels Speed（rpm） Mild steel Suitable drilling 25-40 25-40 19-25 diameter mm Cast iron 38-55 38-55 28-38...

  • Page 56: Automatic Feed

    5.12 Automatic Feed 5.12.1 Automatic feed rate table Steps Feed rate No feed rate 0.05mm/Rev 0.09 mm/Rev 0.15 mm/Rev 5.12.2 Change the feed rate as the following way: a. Check the speedometer and choose a suitable rate. b. Switch the feed rate. Precaution when at changing feed rate: You can change the feed rate only when the spindle is rotating.

  • Page 57: How To Preset The Depth Of The Power-Feed

    5.12.4 How to preset the depth of the power-feed? Ⅰ.(For CRDM 3040x920) The relevant terms Term Depth controlling and fixing lever. Main dial Clutch adjusting block Depth-setting ring Feed trip lever Depth reference point. Preset the depth of the power-feed: Rotate the feed trip lever counter clockwise as shown in picture E till The drill bit contact the work piece.

  • Page 58: For Crdm 3040X1100)

    Ⅱ.(For CRDM 3040x1100) The relevant terms Term Depth controlling and fixing lever. Depth reference point. Main dial Feed trip lever Depth-setting ring Preset the depth of the power-feed: Rotate the feed trip lever counter clockwise as shown in label D till The drill bit contact the work piece.

  • Page 59: The Spindle

    5.13 The spindle (For CRDM 3040x920) (For 3040x1100) (For CRDM (Type I) 3040x920, 3040x1100) (Type II) Please turn on the main switch of the machine , and then lower down the Quill by 5 mm , so that the forward/reverse of the main spindle can start.

  • Page 60: The Assembly And Disassembly Of The Work Table

    5.15 The assembly and disassembly of the work table. Disassemble it as follows: Release 1, as shown in the picture, using a spanner. That’s to move the spanner counter clockwise. 2. Apply the above to the other side. Assembly it as follows: Clean the debris from the base with a metal brush.

  • Page 61: Chapter 6 Adjustment

    CHAPTER 6 Adjustment 6.1 General Adjustment is needed after the machine has been used a period of time for its parts will get loose or worn out, In the radial drill, there are three parts needed to be adjusted. One is the arm clamping lever, another the gap between the gearbox and the arm rail, finally the engagement between the feed trip lever and the clutch and Maximum Range for spindle adjustment.

  • Page 62: The Gap Adjustment Between The Gearbox And The Arm Rail

    After the machine has been used a period of time, the gap between the gearbox and the arm rail appears. It is the time to adjust its tightness between the arm rail and crank shaft bearing. 6.3.1 (For CRDM 3040x920) Dismantle the metal cover, as shown in the picture 1.

  • Page 63: For Crdm 3040X1100)

    6.3.2 (For CRDM 3040x1100) a. Remove the side plate as the above figure 1. Release the bolts as the above figure 2. Using socket wrench, insert it into the holes as shown in the above figure 3 and rotate them. Apply the tightness as the hand wheel of the Gearbox can be turned easily but not too easily.

  • Page 64: Adjust The Engagement Between The Feed Trip Lever And The Clutch

    Tighten the bolts B as shown in the right picture. 6.5 Maximum Range for spindle adjustment (For CRDM 3040X920) When you find the spindle adjustment range for maximum and minimum are different or you change the spring seat, please readjust the clearance for the spindle 3 to 5 mm to prevent the spare part get damage.

  • Page 65: Chapter 7 Maintenance

    7.2.2 Please clean every parts using a metal brush and a rag, dipped with oil, to rub them. （Please use CC68 ）After every day’s work, please proceed the following maintenance. Ⅰ. (For CRDM 3040x920) No. Parts 1. Column 2. The arm rail 3.

  • Page 66: The Way To Clean Iron Filings

    Ⅱ. (For CRDM 3040x1100) No. Parts 1. Column 2. The arm rail 3. Spindle 4. Work table 5. The base 6. The ball screw 7.2.3 The way to clean iron filings: 1. Power off. 2. Put on gloves. 3. Clean from upside down using a brush. When the iron filings comes down to the base, please collect it and put it at the right side of the operation position.

  • Page 67: Lubrication

    7.2.4 Lubrication Before every day’s work, please proceed the following maintenance. (For CRDM 3040x920) (For CRDM 3040x1100) Part Oil type Volume 1. Oil filler points of the column CC68 Full 2. Oil filler points on top of the gearbox. CC68 Full 3.

  • Page 68: Change Oil Inside Of The Speed Reduction Of The Arm Elevating Motor

    7.2.5 Change oil inside of the speed reduction of the arm elevating motor. It requires only one person to do it. Please press down the emergent stop button and power off before proceeding the job. (For CRDM 3040x920) (For CRDM 3040x1100) Instruction to the relevant parts.

  • Page 69: Chang The Oil Inside The Gearbox

    7.2.6 Chang the oil inside the gearbox. It calls for only one person to do it. Please power off and press down the emergent stop button before carrying out the job. Instruction to the relevant parts. It is the open where oil is added after the oil in the container isn’t 1.

  • Page 70: Replace The Cutting Fluids

    7.3 Replace the cutting fluids. It requires only one person to do it. Please power off and press down the emergent stop power button before carrying out the job. Instruction to the relevant parts. It is the open where the cutting fluids are added when it 1.

  • Page 71: Maintenance And Replacement Period

    7.4 Maintenance and replacement period. Position Items. Period 1. Oil filler points of the column. CC68 once per day. 2. Oil filler points on top of the gearbox. CC68 once per day. 3. Oil filler points in the right side of the gearbox. CC68 once per day.

  • Page 72: Chapter 8 Troubleshooting

    CHAPTER 8 Troubleshooting 8.1 The spindle overloads and the relay jumps. 8.1.1 The cause. a. The drill bit is too big. b. The feed rate is too fast. c. Operation not in compliance with speedometer and the automatic feed rate table. d.

  • Page 73: What If The Drill Bit Get Broken

    8.3 What if the drill bit get broken？ a. Stop the spindle. b. Press down the emergent stop button. c. Push the gearbox backwards. d. Pinch the end of the broken bit with a pliers. e. Rotate counter clockwise and pull it out upwards. 8.4 What if the screw tap get broken? a.
  • Page 74 CHAPTR 9 Annex 9.1 Electrical circuit diagram (For CRDM 3040x920 CE Standard) 1.25mm 1.25mm 400V 150VA Key Switch 110V 1.25mm 1.25mm 1.25mm Power 1.25mm (Alarm Lamp) SS3(Cross Switch) SS3(Cross Switch) 1.25mm Control Relay 1.25mm 1.25mm Spindle U1,V1,W1 Forward Spindle 1.25mm...
  • Page 75 9.2 Electrical circuit diagram (For CRDM 3040x1100 CE Standard) 3.5mm 3.5mm 3.5mm 3.5mm Key Switch 1.25mm 1.25mm 220V 380V 150VA 110V 1.25mm 1.25mm 1.25mm SS3(Cross Switch) 1.25mm 1.25mm 1.25mm 1.25mm 1.25mm 1.25mm 1.25mm U1,V1,W1 1.25mm 1.25mm Spindle 1.25mm Forward 1.25mm Spindle Reverse U2,V2,W2...
  • Page 76 9.3 Electrical main parts list (For CRDM 3040x92A CE Standard ) Part NO. Symbol Name Specification Q’ty Remark E1602004 Key Switch COD TF323 E0703004 Magnetic Contact CU11 3a1b AC24V E0703004 Magnetic Contact CU11 3a1b AC24V E0703004 Magnetic Contact CU11 3a1b AC24V E0703004 Magnetic Contact CU11 3a1b AC24V...
  • Page 77 9.4 Electrical main parts list (For CRDM 3040x1100 CE Standard) Part NO. Symbol Name Specification Q’ty Remark E1602004 Key Switch COD TF323 E0703004 Magnetic Contact CU11 3a1b 24V E0703005 Magnetic Contact CU18 24V E0703005 Magnetic Contact CU18 24V E0703004 Magnetic Contact CU11 3a1b 24V E0703004 Magnetic Contact...

  • Page 78: Earth System Diagram(Crdm 3040X920 Ce Standard)

    Part NO. Symbol Name Specification Q’ty Remark 0.1KW Coolant Pump Motor 200/400V/2P/3PH E3602002 AMP meter S065 20A 9.5 Earth System Diagram (For CRDM 3040x920,CRDM 3040x1100 CE Standard) Ｍ１ Ｍ2 ３～ ３～ E E E E PE Ｍ3 ３～...

  • Page 79: Electrical Circuit Diagram(Crdm 3040X920 Standard)

    9.6 Electrical Circuit Diagram (For CRDM 3040x920 Standard)
  • Page 80 9.7 Electrical main parts list (For CRDM 3040x920 Standard ) Part NO. Symbol Name Specification Q’ty Remark E0703004 Magnetic Contact CU11 3a1b AC24V Standard E0703004 CU11 3a1b AC24V Magnetic Contact Standard E0703004 CU11 3a1b AC24V Magnetic Contact Standard E0703004 CU11 3a1b AC24V...
  • Page 81 Part NO. Symbol Name Specification Q’ty Remark Magnetic Contact E0703004 CU11 3a1b AC24V Optional Magnetic Contact E0703004 CU11 3a1b AC24V Optional E0703004 Magnetic Contact CU11 3a1b AC24V Optional Magnetic Contact E0703004 CU11 3a1b AC24V Optional Magnetic Contact E0703004 CU11 3a1b AC24V Optional Magnetic Contact E0703004...

  • Page 82: Electrical Circuit Diagram(Crdm 3040X1100 Standard)

    9.8 Electrical Circuit Diagram (For CRDM 3040x1100 Standard)
  • Page 83 9.9 Electrical main parts list (For CRDM 3040x1100 Standard ) Part NO. Symbol Name Specification Q’ty Remark E0701020 Magnetic Contact CU11 3a1b 110V Standard E0701020 Magnetic Contact CU11 3a1b 110V Standard E0701020 Magnetic Contact CU11 3a1b 110V Standard E0701020 Magnetic Contact CU11 3a1b 110V Standard E0701021 Magnetic Contact CU18 110V...
  • Page 84 Part NO. Symbol Name Specification Q’ty Remark Coolant Pump 1/8HP/2P/3PH Standard Motor L:130mm Vertical Main Motor Standard 3HP/1.5HP4P/8P Horizontal Elevating Motor Standard 1HP/4P/3PH E0703004 Magnetic Contact CU11 3a1b AC24V Optional E0703004 Magnetic Contact CU11 3a1b AC24V Optional E0703004 Magnetic Contact CU11 3a1b AC24V Optional E0703004 Magnetic Contact CU11 3a1b AC24V...
  • Page 85 (in accordance with supplement II, section 1A of the Machinery Directive) Industrie & Handelsonderneming Huberts bv, Kennedylaan 14, 5466 AA Veghel, the Netherlands, in the capacity of importer, is to be held responsible for declaring that the Huvema machine s: CRDM 3040x920 – CRDM 3040x1100 which this declaration relates to, are conform the following norms: NEN-EN-ISO 12100:2010;...
