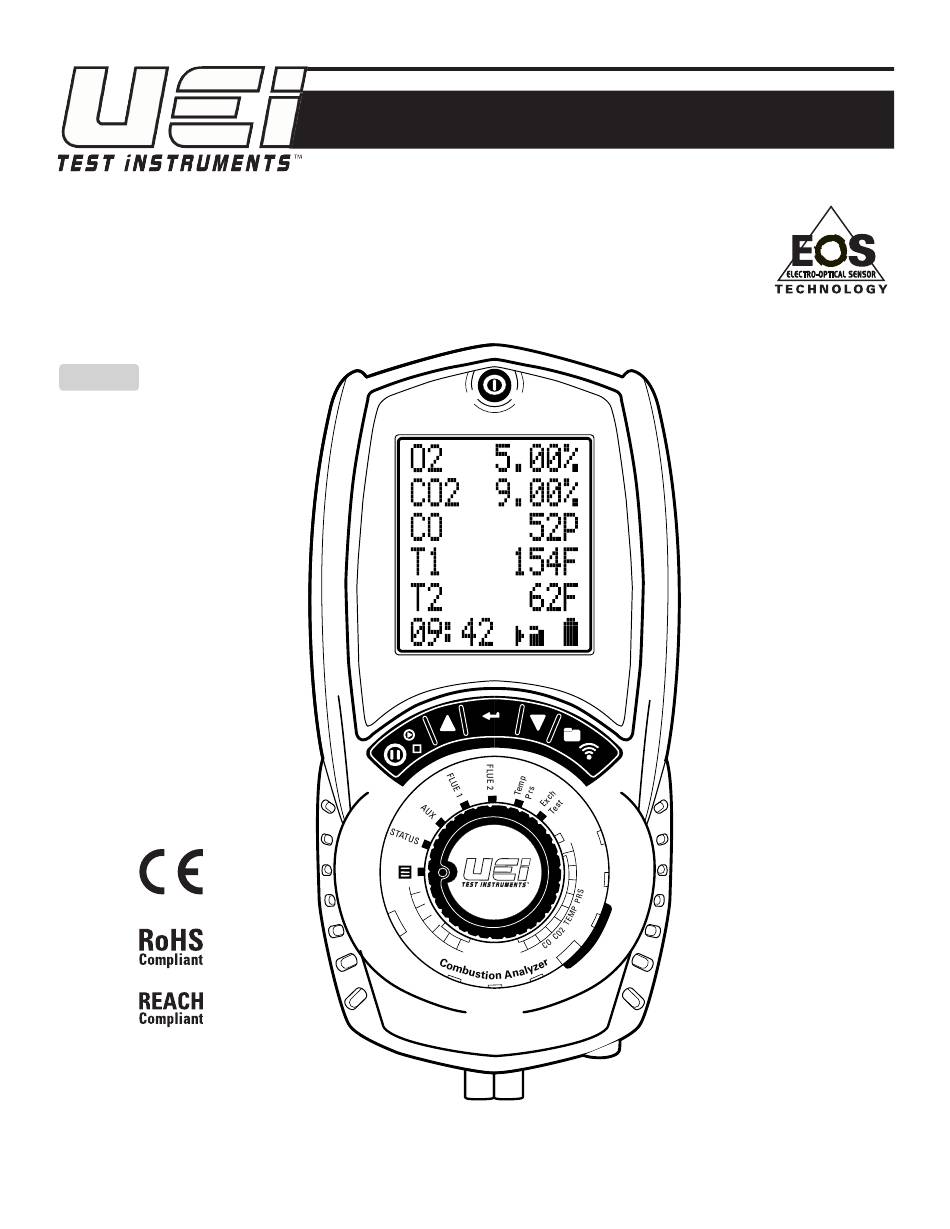

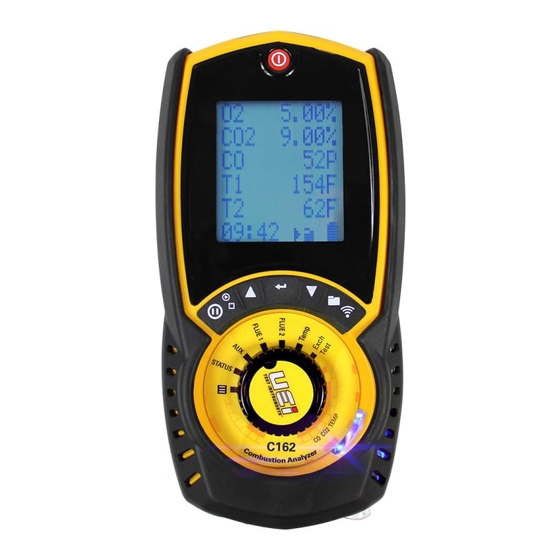

C162/C163/C164
Flue Gas Combustion Analyzer with Heat Exchanger Test
INSTRUCTION MANUAL
ENGLISH
C163
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C162 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for UEi C162

  • Page 1 C162/C163/C164 Flue Gas Combustion Analyzer with Heat Exchanger Test INSTRUCTION MANUAL ENGLISH C163 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Heat Exchanger Test .
  • Page 3: General Specifications

    GENERAL SPECIFICATIONS • Operating Temperature: 0˚ to 113˚F (-18˚ to 45˚C) • Calibration: Recommended Annually • Storage Temperature: 0˚ to 113˚F (-18˚ to 45˚C) • Certification: CE Conformity, RoHS, REACH Compliant, AHRI 1260 standard 15% to 90% R.H. • Operating Humidity: •...
  • Page 4: Symbols

    SYMBOLS Low battery Degrees Fahrenheit Degrees Celsius Pump Status Pump Start Pump Stop Hold Printing Navigate Down Navigate Up Enter Key Save Log ANALYZER OVERVIEW A. Infrared Printer Port B. On/ Off (Power) Button C. 6 Line Backlit Display • Press any button to turn Back light on (will turn off after 10 seconds of inactivity) D.
  • Page 5 ANALYZER OVERVIEW (CONT.) Serial No. Sensors Fitted: C163 Narrow Pin MUST be on the (C162) Right hand side. Flue Probe Temperature Plug (Plugs into T1) Red Connector (plugs into Flue Gas Inlet) (C163 & C164) Flue Probe Gas Inlet Plug GlobalTestSupply www.
  • Page 6: Overview

    10 characters can be added to Line 1 of the header, 6 characters to Line 2 of Header of the printouts. The C162, C163 and C164 all have a Wireless Connection that connects to a Free App, Kane Wireless Printer, available through iOS ®...
  • Page 7: Emptying & Cleaning The In-Line Water Trap

    EMPTYING & CLEANING THE IN-LINE WATER TRAP • Remove the rubber plug • Allow the water to drain out • Re-insert the rubber plug CHANGING THE PARTICLE FILTER • Remove the protective rubber boot • Slide the water trap unit from the analyzer •...
  • Page 8: Display Parameters

    DISPLAY PARAMETERS The large display is backlit with 6 lines, the last line is the Status Bar line. Menu Screen Time (settable parameter; HH:MM:SS, displayed in 24 hour clock format) Date (settable parameter; DD:MM:YY) Header (settable parameter; 16 character, 2 line; 10 characters can be added to Line 1 of the header, 6 characters to Line 2) IR Print (KMIRP2 or IRP-2) ˚C/˚F (settable parameter) NOx Ref (settable parameter;...
  • Page 9: Status Screen

    Temp/Prs Screen Default Selections Are: T1 (displayed in F or C) T2 (displayed in F or C) ∆T (displayed in F or C) P (displayed in unit selected; mBar, InH20, hPa, mmHg, PSI, kPa, Pa, mmH20) (C163 & C164 only) Exch Test Screen Default Selections Are: O2 (displayed in %)
  • Page 10: Status Bar

    STATUS BAR Status Bar Icons The icons are designed to provide quick and simple instrument status information without having to navigate complicated menu systems or detract from the job at hand. Status Bar Icon Layout Pump Pump on Pump Pump paused Sending Data Indicates data is being transmitted to either the App or the Printer...
  • Page 11: Menu Items

    STORED LOGS MEMORY The UEi utilizes a shared memory system much like a computer hard drive. The different Log types are stored sequentially until the shared memory area is full. This means the Log types are not restricted to a smaller number of memory locations as the full memory capacity is available as required for Logs of any type.
  • Page 12: Viewing Stored Logs

    Viewing Stored Logs Once the view has been selected from the Logs Menu the following screen will be displayed: List of available Logs (Navigation and selection via the buttons). Log View Menu Options View stored Combustion Logs (Option will appear if Logs are available). View stored Auxiliary Logs (Option will appear if Logs are available).
  • Page 13: Pressure/Temperature Testing

    TEMPERATURE TESTING Select the Temperature Rotary Dial position. Use the T1 connection for the Flue Probe temperature sensor Use the T2 connection for the Inlet temperature sensor Real time temperature difference Real time pressure reading (pressure will only show is fitted) PRESSURE TESTING (IF PRESSURE FITTED) WARNING Never attempt to take a pressure reading without knowing the maximum pressure that might be present.
  • Page 14: Heat Exchanger Test

    HEAT EXCHANGER TEST NOTE: Test results; O2, CO and Excess Air will show on the printout. There are many methods to test heat exchanger integrity. One of these is to observe the Excess Air, O2 and CO readings both before and after the blower turns on.
  • Page 15: Printouts

    To print, simply press and release the PRINT BUTTON. Printing can be aborted by pressing the PRINT BUTTON again. UEi Infrared Printer Make sure the printer is switched on, ready to accept data and its infrared receiver is in line with the analyzer’s infrared emitter (on top of the analyzer).
  • Page 16: Specifications

    Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) CERTIFICATION The C162/C163/C164 are TUV-tested and certified to EN 50379, Parts 1, 2 & 3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV) EN507270:2015...
  • Page 17: Where To Test

    WHERE TO TEST Air Conditioning / Heat Pump Suction Line: • Temperature Verify proper: • Static Duct Pressures • Temperature Differential • Static Pressure Drop Across Coils to condensing unit Boiler & Water Heaters & High Efficiency Modulating Hot Water Systems Boiler HE Boiler Instant Water Heater...
  • Page 18: What Results Are Generally Acceptable

    WHERE TO TEST (CONT.) Furnaces (continued): Atmospheric, Gas & Oil Natural Gas & Propane Verify proper combustion: • O • CO Atmospheric Furnace • CO Draft • Stack Temp • Vent Pressure Verify proper • Efficiency • Temperature Rise • AC side Static Pressure Test Drop across coils •...
  • Page 19: Powering Off

    POWERING OFF When you power off the analyzer, there is a 10 second purge. Make sure you do not exceed the analyzer’s operating specifications. In particular: • Do not exceed the flue probes maximum temperature (1112˚F) • Do not exceed the analyzer’s internal temperature range •...
  • Page 20: Replacing The Batteries

    REPLACING THE BATTERIES This meter has been designed for use with both Alkaline or rechargeable Nickel Metal Hydride (NiMH) batteries. No other types are recommended and will void warranty. The analyzer is supplied with 3 (AA) size NiMH rechargeable batteries. These should be installed into the instrument.
  • Page 21: Recertification Services

    Charges will be applied upon completion of the recertification service. Shipping time for most repairs is 1 to 3 days. UEi pays return freight. RETURNING YOUR ANALYZER Before returning your analyzer to UEi Test Instruments, please ensure that you enclose:...
  • Page 22: Other Important Factors Relating To Combustion

    UEi’s electronic combustion analyzers perform the measurements on a continuous basis, and can calculate the efficiency as adjustments are being made. Combine this with a printout and you are able to provide a before and after comparison of the combustion equipment in relatively little time as part of normal servicing.
  • Page 23: Disposal

    WARRANTY: The C162, C163, C164 are warranted to be free from defects in materials and workmanship for a period of 1 year from the date of purchase. If within the warranty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
