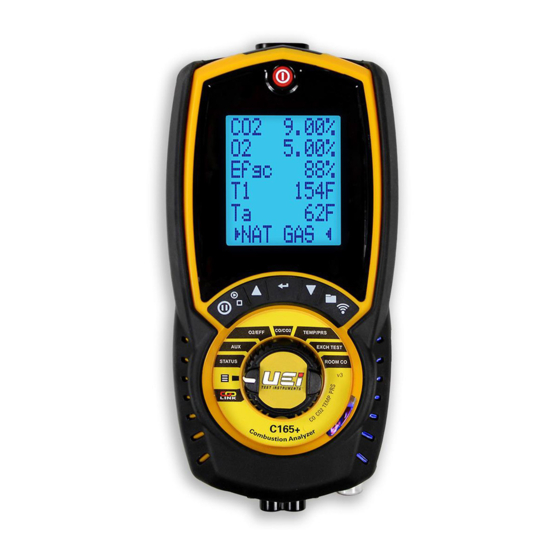

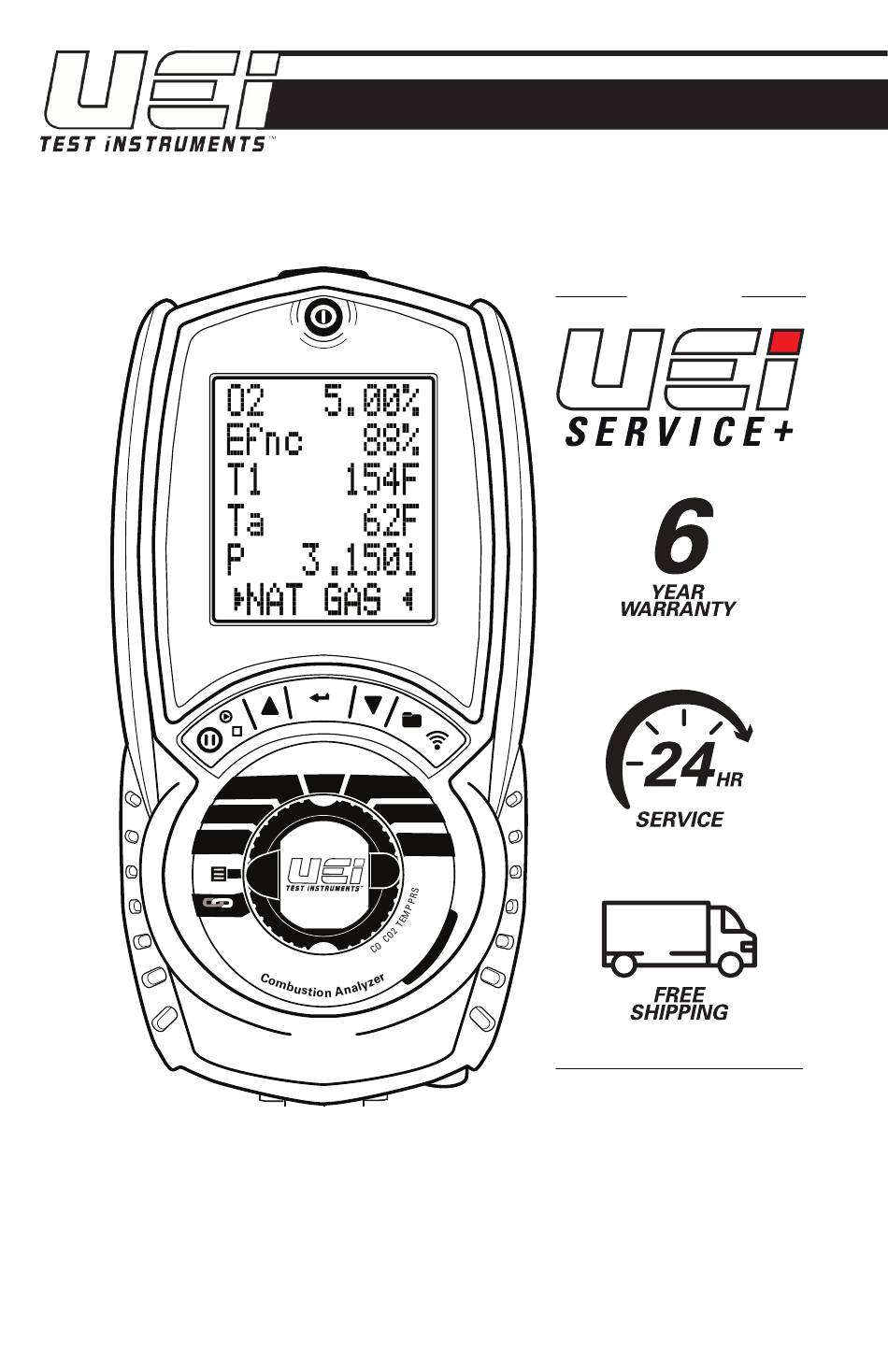

- Page 1 C165+ Q uiCk tart uide BACKED BY CO/CO2 O2/Eff Temp Exch Test Status ROOM CO L I N K C165+ 1-800-547-5740 • Fax: (503) 643-6322 www.ueitest.com • Email: info@ueitest.com...
- Page 2 C165+ OVERVIEW UEi TEST INSTRUMENTS www.ueitest.com Serial No. Tel: 1-800-547-5740 CO-H Sensors Fitted: CO/CO2 O2/Eff Temp Exch Test Status ROOM CO L I N K C165+ [Top View] [Bottom View]...
- Page 3 A. On/ Off (Power) Button B. 6 Line Backlit Display • Press any button to turn Back light on (backlight duration can be set in Menu/ Screen/Backlight) C. UP/DOWN Button • Short press to navigate “UP” or “DOWN” D. Pump Toggle button: Long press to pump on/off, short press holds the readings and the screen flashes E.
-
Page 4: Status Screen
MENU SCREEN - C165+ START UP Press ”Power” Button for 2 seconds. The analyzer will perform a 10 second purge. This should be done in fresh air. Rotate Selector Dial to MENU to set up or customize your settings. Selected parameter are highlighted with Display Line Lights on either side. -
Page 5: Before Testing
BEFORE TESTING CHECKLIST o Clean particle filter o Water trap and probe line are free of condensate o All hose and thermocouple connections are properly secured o Water trap is fitted correctly Remove the rubber boot and red Remove protective rubber boot. o Power on and zero drain plug. - Page 6 BASIC CO/COMBUSTION ANALYSIS CO/CO2 CO/CO2 O2/Eff Temp O2/Eff Temp Exch Test Exch Test Status Status ROOM CO ROOM CO L I N K L I N K C165+ C165+ Rotate selector dial to O2/Eff Rotate selector dial to CO/ Insert Flue probe into stack. Adjust cone so end of the to view: CO2 to view:...
-
Page 7: Pressure Test
PRESSURE TEST CO/CO2 Temp O2/Eff Exch Test Status ROOM CO L I N K C165+ Rotate the selector dial to Connect true draft hose to P1. Place combustion probe or PRS/TEMP. Connect second probe to P2 true draft probe tip in the for differential pressure. - Page 8 HEAT EXCHANGER TEST CO/CO2 Temp O2/Eff Exch Test Status ROOM CO L I N K C165+ Rotate dial to EXCH TEST. Call for heat on the system. Scroll to select Press to start. Observe and wait for O FUELTYPE. readings to stabilize. Press After the blower turns on, press the...
-
Page 9: Room Co Test
ROOM CO TEST CO/CO2 O2/Eff Temp Exch Test Status ROOM CO L I N K C165+ Test results and LOG number No probes or hose CO reading will be logged connections required for every minute for 30 minutes. will display when done. this test. - Page 10 SETUP USER FUEL CO/CO2 O2/Eff Temp Exch Test Status ROOM CO L I N K C165+ Rotate dial to Menu UNITS shows press proceed. POST TESTING POWERING OFF When you power off the C165+, there is a 10 second purge. CAUTION Make sure you do not exceed the analyzer’s operating specifications.
-
Page 11: Warranty
C165+ product page (see the link above). If a UEi product fails under warranty, we will replace it but we need the unit back so we can identify and fix the problem. For an RMA call Team UEi @ 1-800- 547-5740. - Page 12 2 additional benefits: 24-hour Service: Analyzers received for standard recertification and service through UEi Service+ are shipped back on the next business day. Free Shipping: UEi Service+ offers free shipping both to and from our service center.
