Summary of Contents for UEi C163

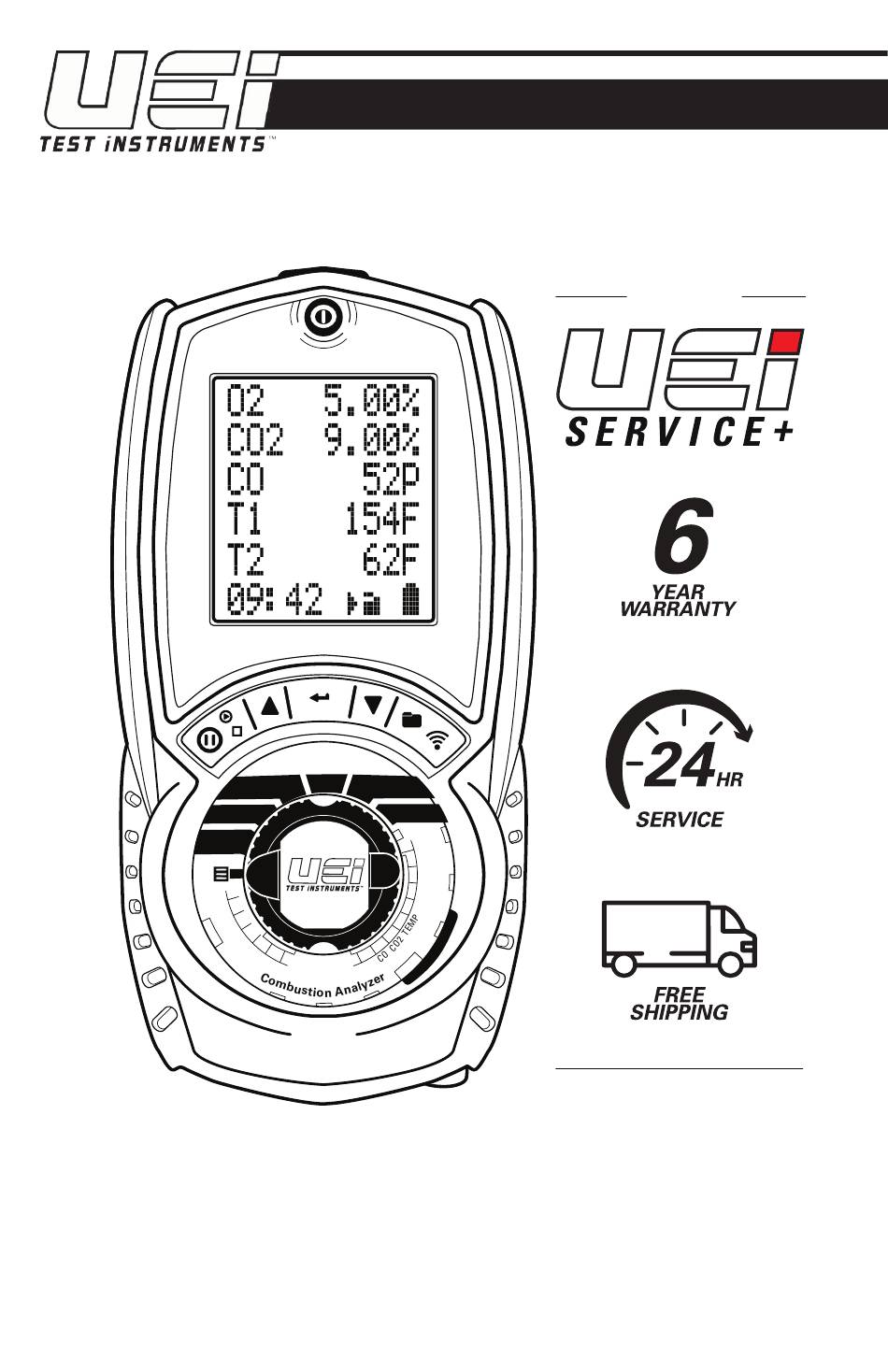

- Page 1 C163 Q uiCk tart uide BACKED BY CO/CO2 O2/Eff Temp Exch Test Status C163 1-800-547-5740 • Fax: (503) 643-6322 www.ueitest.com • Email: info@ueitest.com...
- Page 2 Exch Test Status screen Heat Exchange Integrity Status Menu screen Test Screen LED Water Trap Indication C163 Water Trap Window (C162) USB charging port Flue Gas Inlet Connection K-type temperature inputs (C163 & C164) Pressure Ports (C163 & C164 only)
- Page 3 MENU SCREEN - C163 START UP Press ”Power” Button for 2 seconds. The analyzer will perform a 60 second purge. This should be done in fresh air. Rotate Selector Dial to MENU to set up or customize your settings. Selected parameter are centered, highlighted with arrow icons on either side.
- Page 4 COMBUSTION ANALYSIS CO/CO2 O2/Eff Temp Exch Test Status C163 Insert flue probe into combustion Insert flue probe into stack. Rotate function rotary dial input. Insert K-type temperature Adjust cone so the probe tip is to O2/Eff for Test Screen 1 probe into input T1.
- Page 5 The AUX screen allows you to assign any of the following parameters on any display line. O2, CO, Display Fuel Type, CAL, XAIR, LOSS, Efgc, ATM, Ti, ∆T, T2, T1, CO2, COa, or COn. Pressure(C163 and !64 only). NOX and No (C164 only)
- Page 6 O2/Eff Temp Exch Test Status To view these Logs, see View Press again to abort. Saved Logs section. C163 C161 C161 VIEW SAVED LOGS Rotate the dial to MENU. Screen displays all saved LOGS. Press buttons to scroll Test Report categories.
- Page 7 UEi’s option. This warranty covers normal use and does not cover damage which occurs in shipment or failure which results from alteration, tampering, accident, misuse, abuse, neglect or improper maintenance (calibration).
- Page 8 2 additional benefits: 24-hour Service: Analyzers received for standard recertification and service through UEi Service+ are shipped back on the next business day. Free Shipping: UEi Service+ offers free shipping both to and from our service center.
