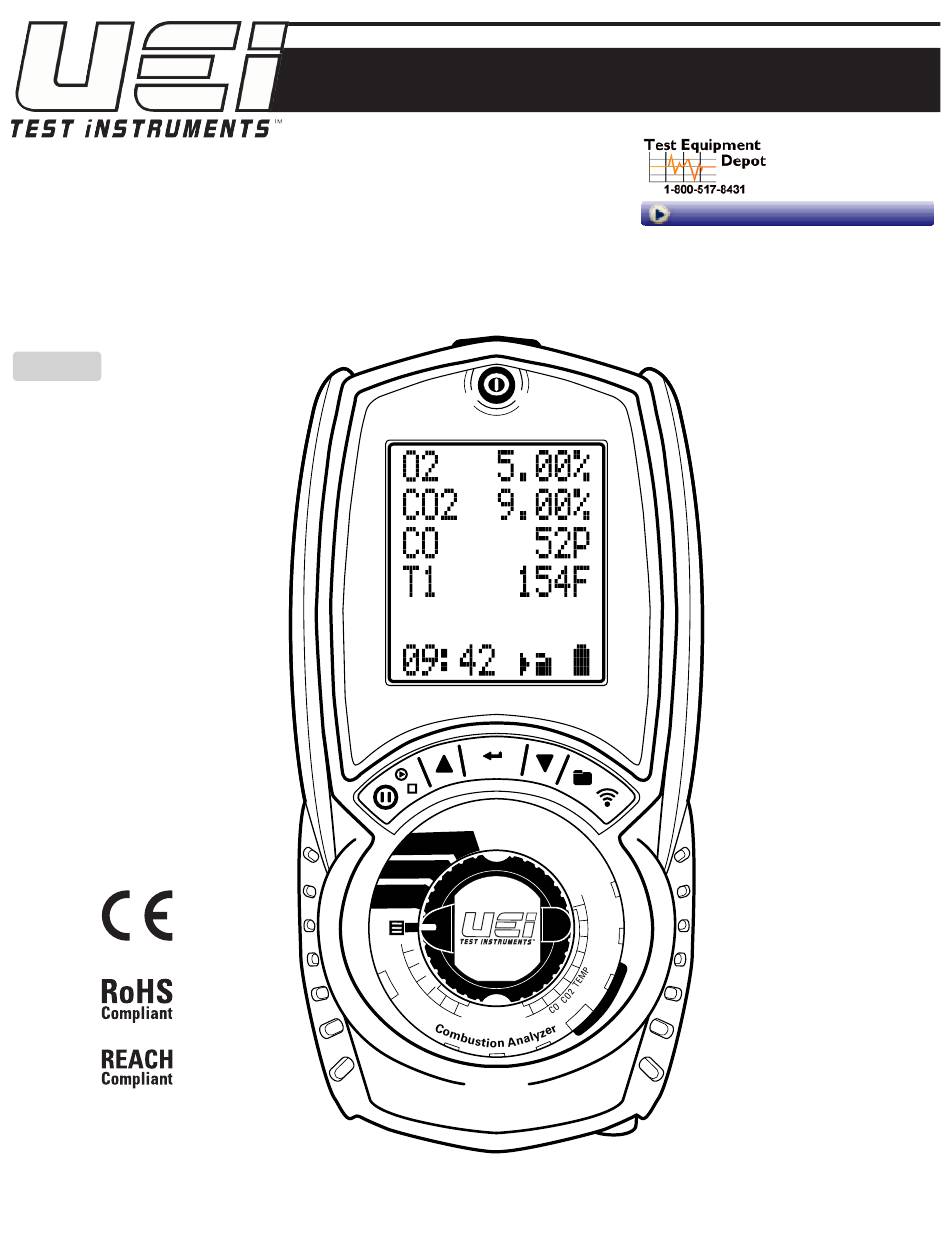

- Page 1 C160 5 Commonwealth Ave Woburn, MA 01801 Phone 781-665-1400 Toll Free 1-800-517-8431 Flue Gas Visit us at www.TestEquipmentDepot.com Combustion Analyzer INSTRUCTION MANUAL ENGLISH CO/CO2 O2/Eff Status C160...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Printouts . -
Page 3: General Specifications
GENERAL SPECIFICATIONS • Operating Temperature: 32˚ to 113˚F (0˚ to 45˚C) • Calibration: Recommended Annually • Storage Temperature: 0˚ to 113˚F (-18˚ to 45˚C) • Certification: CE Conformity, RoHS, REACH Compliant, AHRI 1260 standard • Operating Humidity: 15% to 90% R.H. NiMH (AA) 3 •... -
Page 4: Analyzer Overview
ANALYZER OVERVIEW A. Infrared Printer Port B. On/ Off (Power) Button C. 6 Line Backlit Display • Press any button to turn Back light on (will turn off after 10 seconds) D. Protective Rubber Boot With Magnets E. Status Bar Line F. - Page 5 ANALYZER OVERVIEW (CONT.) Serial No. Sensors Fitted: CO/CO2 O2/Eff Status C160 Black Connector (plugs into Flue Gas Inlet) Flue Probe Temperature Plug (Plugs into T1) Narrow Pin MUST be on the Flue Probe Right hand side. Gas Inlet Plug...
-
Page 6: Overview
Status Bar. All data can be printed via an optional infrared printer. The C160 uses a new data storage system allowing up to 30 logs of any combination of Combustion rather than be restricted to an allowance of particular logs. -
Page 7: Emptying & Cleaning The In-Line Water Trap
EMPTYING & CLEANING THE IN-LINE WATER TRAP • Remove the rubber plug • Allow the water to drain out • Re-insert the rubber plug CHANGING THE PARTICLE FILTER • Remove the protective rubber boot • Slide the water trap unit from the analyzer •... -
Page 8: Display Parameters
DISPLAY PARAMETERS The large display is backlit with 6 lines, the last line is the Status Bar line. Menu Screen Time (settable parameter; HH:MM:SS, displayed in 24 hour clock format) Date (settable parameter; MM:DD:YY) Header (16 character, 2 line settable parameter; 10 characters can be added to Line 1 of the header, 6 characters to Line 2) IR Print (KMIRP or IRP-2) ˚C/˚F (Selectable parameter) Gas Unit (Selectable parameter;... -
Page 9: Status Screen
Navigation through the Status Bar options is achieved via the buttons when the Status Bar is visible on the display. CO/CO2 O2/Eff Status C160... -
Page 10: Status Bar
STATUS BAR Status Bar Icons The icons are designed to provide quick and simple instrument status information without having to navigate complicated menu systems or detract from the job at hand. Status Bar Icon Layout Pump Pump on Pump Pump paused Sending Data Indicates data is being transmitted to either the App or the Printer Battery... -
Page 11: Menu
MENU Using the Menu The Menu position on the Rotary Dial allows for the customization of the default settings for the analyzer as per the user’s requirements. Navigation through the Menu system is via the dedicated user’s interface buttons (Up, Down, Enter). Menu Option to edit As you navigate up or down through the Menu, the items will scroll accordingly, eventually back to the beginning. -
Page 12: Stored Logs Memory
STORED LOGS MEMORY The C160 utilizes a shared memory system much like a computer hard drive. The different Log types are stored sequentially until the shared memory area is full. This means the log types are not restricted to a smaller number of memory locations as the full memory capacity is available as required for Logs of any type. -
Page 13: Viewing Stored Logs
Viewing Stored Logs Once the view has been selected from the Logs Menu the following screen will be displayed: List of available Logs (Navigation and selection via the buttons). Log View Menu Options View stored Combustion Logs (Option will appear if Logs are available). Exit back to previous menu Navigating Stored Logs Once the desired Log type to view has been selected, the first available stored Log will be displayed. -
Page 14: Log Navigation Menu Options
Log Navigation Menu Options Print the currently selected Log Navigate to the next available Log of the selected type (Option will only appear if there is more than one Log). Navigate to the previously selected Log of the selected type (Option will only appear if there is more than one Log). -
Page 15: Printouts
Make sure the printer is switched on, ready to accept data and its infrared receiver is in line with the analyzer’s infrared emitter (on top [IRP2] [KMIRP2] of the analyzer). Combustion C160 SW20157 v1.1 182721222 08/19/21 08:19:17 09/26/22 0.11 20.76 0.0009... -
Page 16: Specifications
The following harmonized standards and technical specifications have been applied: CERTIFICATION The UEi C160 is TUV-tested and certified to EN 50379, Parts 1, 2 & 3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV). Manufactured to meet AHRI 1260 standard. -
Page 17: Where To Test
WHERE TO TEST Air Conditioning / Heat Pump Suction Line: • Temperature Verify proper: • Static Duct Pressures • Temperature Differential • Static Pressure Drop Across Coils to condensing unit Boiler & Water Heaters & High Efficiency Modulating Hot Water Systems Boiler HE Boiler Instant Water Heater... -
Page 18: What Results Are Generally Acceptable
WHERE TO TEST (CONT.) Furnaces (continued): Atmospheric, Gas & Oil Natural Gas & Propane Verify proper combustion: • O • CO Atmospheric Furnace • CO Draft • Stack Temp • Vent Pressure Verify proper • Efficiency • Temperature Rise • AC side Static Pressure Test Drop across coils •... -
Page 19: Powering Off
POWERING OFF When you power off the C160, there is a 10 second purge. Make sure you do not exceed the analyzer’s operating specifications. In particular: • Do not exceed the flue probes maximum temperature (1112˚F, dependent on flue probe used) •... -
Page 20: Replacing The Batteries
REPLACING THE BATTERIES This meter has been designed for use with both alkaline and rechargeable Nickel Metal Hydride (NiMH) batteries. No other types are recommended and will void warranty. The analyzer is supplied with 3 (AA) size NiMH rechargeable batteries. These should be installed into the instrument. -
Page 21: Usa Annual Recertification Services
Analyzers received for standard recertification and service through UEi Service+ are shipped back on the next business day. Free Shipping: UEi Service+ offers free shipping both to and from our service center. When customers book their recertification, they receive a prepaid UPS Ground shipping label. PRODUCT REGISTRATION Register Online Registering you analyzer online is quick and easy. -
Page 22: Other Important Factors Relating To Combustion
UEi’s electronic combustion analyzers perform the measurements on a continuous basis, and can calculate the efficiency as adjustments are being made. Combine this with a printout and you are able to provide a before and after comparison of the combustion equipment in relatively little time as part of normal servicing. -
Page 24: Disposal
WARRANTY The C160 is warranted to be free from defects in materials and workmanship for a period of 1 year from the date of purchase. If within the warranty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
