UEi C165 Quick Start Manual
  1. Manuals
  2. Brands
  3. UEi Manuals
  4. Measuring Instruments
  5. C165
  6. Quick start manual

UEi C165 Quick Start Manual

Hide thumbs Also See for C165:
Table of Contents

Advertisement

Quick Links

Download this manual
BEFORE USING
REGISTER YOUR
Scan Now
4
or Visit www.ueitest.com
ANALYZER
for Easy Online Registration
C165 Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C165 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UEi C165

Summary of Contents for UEi C165

  • Page 1 C165 Quick Start Guide BEFORE USING REGISTER YOUR ANALYZER Scan Now for Easy Online Registration or Visit www.ueitest.com...

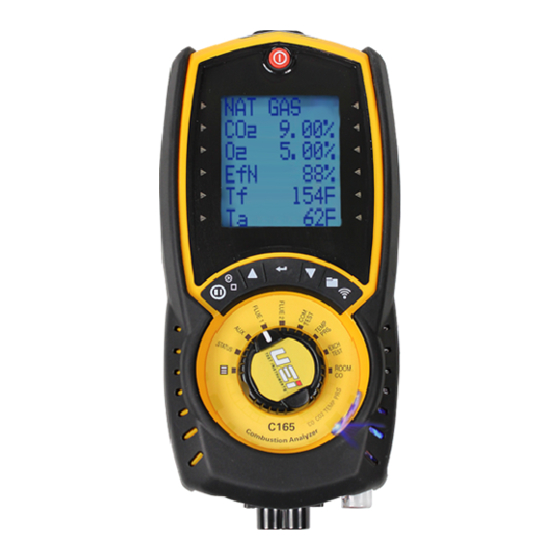

  • Page 2 C165 Q uiCk tart uide C165 OVERVIEW UEi TEST INSTRUMENTS Serial No. www.ueitest.com Tel: 1-800-547-5740 CO-H Sensors Fitted: C165 [Top View] [Bottom View]...
  • Page 3 A. On/ Off (Power) Button B. 6 Line Backlit Display • Press any button to turn Back light on (backlight duration can be set in Menu/ Screen/Backlight) C. Display Line Lights D. UP/DOWN Button • Short press to navigate “UP” or “DOWN” E.

  • Page 4: Status Screen

    MENU SCREEN - C165 START UP Press ”Power” Button for 2 seconds. The analyzer will perform a 10 second purge. This should be done in fresh air. Rotate Selector Dial to MENU to set up or customize your settings. Selected parameter are highlighted with Display Line Lights on either side.

  • Page 5: Before Testing

    Remove particle filter from water ambient FRESH air plug and replace boot cover. trap and replace with new one. Reattach trap and boot. SCREEN AUXILIARY C165 C165 The AUX screen allows you When performing a Scroll to select to assign any of the following combustion Test.
  • Page 6 BASIC CO/COMBUSTION ANALYSIS C165 C165 Rotate selector dial to FLUE 1 Rotate selector dial to FLUE 2 Insert Flue probe into stack. Adjust cone so end of the to view: to view: probe is approximately at the center of the stack.

  • Page 7: Commissioning Test

    COMMISSIONING TEST C165 Rotate the rotary dial to Rotate the dial to “COM COM TEST TEST” position and follow the instructions on the The Commissioning Test is screen based on UK’s TB143 C165 Introduced in April 2013, Technical Bulletin 143 from...

  • Page 8: Temperature Test

    TEMPERATURE TEST C165 Rotate the selector dial to Connect second probe to T2. Connect probe to T1. PRS/TEMP Compatible with any K-Type Compatible with any K-Type thermocouple probe or clamp. thermocouple probe or clamp. HEAT EXCHANGER TEST C165 Rotate dial to EXCH TEST.

  • Page 9: Room Co Test

    ROOM CO TEST C165 Test results and LOG number No probes or hose CO readings will be logged connections required for every 2 minutes for 30 will display when done. this test. minutes. Press to print the results. Rotate dial to ROOM CO.
  • Page 10 C165 C165 POST TESTING POWERING OFF When you power off the C165, there is a 10 second purge. CAUTION Make sure you do not exceed the analyzer’s operating specifications. • Do not exceed the flue probes maximum temperature (1112˚F) • Do not exceed the analyzer’s internal temperature range 112°F (50°C) Remove the probe from the flue •...

  • Page 11: Warranty

    For full warranty details please refer to the Owner’s Manual on the C165 product page (see the link above). If a UEi product fails under warranty, we will replace it but we need the unit back so we can identify and fix the problem. For an RMA call Team UEi @ 1-800-547- 5740.

  • Page 12: Read Before Use

    READ BEFORE USE ANNUAL RECERTIFICATION UEi annual recertification process is straight forward and up front; no surprises! Pay a flat rate for standard Recertification service. • Calibration or Sensor Replacement • 30-Point Inspection • Firmware and Software Updates • Certificate of Calibration •...

Table of Contents
