Summary of Contents for UEi C163KIT

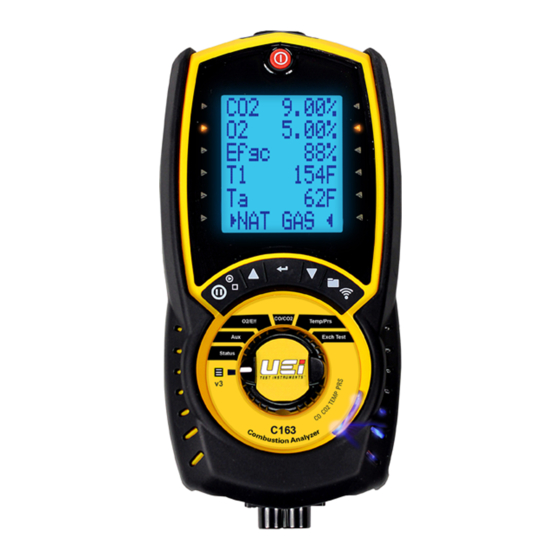

- Page 1 C163 Residential / Commercial Combustion Analyzer with Heat Exchanger Test INSTRUCTION MANUAL BACKED BY ENGLISH CO/CO2 Temp O2/Eff Exch Test Status C163 1-800-547-5740 • Fax: (503) 643-6322 www.ueitest.com • Email: info@ueitest.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Heat Exchanger Test . -
Page 3: General Specifications
GENERAL SPECIFICATIONS • Operating Temperature: 0˚ to 113˚F (-18˚ to 45˚C) • Calibration: Recommended Annually • Storage Temperature: 0˚ to 113˚F (-18˚ to 45˚C) • Certification: CE Conformity, RoHS, REACH Compliant, AHRI 1260 standard • Operating Humidity: 15% to 90% R.H. NiMH (AA) 3 •... -
Page 4: Symbols
SYMBOLS Low battery Degrees Fahrenheit Degrees Celsius Pump Status Pump Start Pump Stop Hold Printing Navigate Down Navigate Up Enter Key Save Log ANALYZER OVERVIEW A. Infrared Printer Port B. On/ Off (Power) Button C. 6 Line Backlit Display • Press any button to turn Back light on (will turn off after 10 seconds of inactivity) D. - Page 5 ANALYZER OVERVIEW (CONT.) Serial No. Sensors Fitted: CO/CO2 Temp O2/Eff Exch Test Status C163 Narrow Pin MUST be on the Right hand side. Flue Probe Temperature Plug (Plugs into T1) Red Connector (plugs into Flue Gas Inlet) Flue Probe Gas Inlet Plug...
-
Page 6: Overview
OVERVIEW The direct measurement of CO is achieved using UEi’s own EOS technology sensor. CO is set to zero in fresh air automatically after the initial 60 second countdown. If “ZERO CO2” is indicated, ensure the unit is in outside fresh air before selecting the “Purge” option. -
Page 7: Emptying & Cleaning The In-Line Water Trap
EMPTYING & CLEANING THE IN-LINE WATER TRAP • Remove the rubber plug • Allow the water to drain out • Re-insert the rubber plug CHANGING THE PARTICLE FILTER • Remove the protective rubber boot • Slide the water trap unit from the analyzer •... -
Page 8: Display Parameters
DISPLAY PARAMETERS The large display is backlit with 6 lines, the last line is the Status Bar line. Menu Screen Time (settable parameter; HH:MM:SS, displayed in 24 hour clock format) Date (settable parameter; DD:MM:YY) Header (settable parameter; 16 character, 2 line; 10 characters can be added to Line 1 of the header, 6 characters to Line 2) IR Print (KMIRP2 or IRP-2) ˚C/˚F (settable parameter) NOx Ref (settable parameter;... -
Page 9: Status Screen
Flue 2 Screen CO (displayed in ppm) COa (O2++ displayed in ppm) CO2 (displayed in %) Loss (displayed in %) XAIr (Excess Air, O2++ displayed in ppm) Temp/Prs Screen Default Selections Are: T1 (displayed in F or C) T2 (displayed in F or C) ∆T (displayed in F or C) P (displayed in unit selected;... -
Page 10: Status Bar
STATUS BAR Status Bar Icons The icons are designed to provide quick and simple instrument status information without having to navigate complicated menu systems or detract from the job at hand. Status Bar Icon Layout Pump Pump on Pump Pump paused Sending Data Indicates data is being transmitted to either the App or the Printer... -
Page 11: Menu Items
STORED LOGS MEMORY The UEi utilizes a shared memory system much like a computer hard drive. The different Log types are stored sequentially until the shared memory area is full. This means the Log types are not restricted to a smaller number of memory locations as the full memory capacity is available as required for Logs of any type. -
Page 12: Viewing Stored Logs
Viewing Stored Logs Once the view has been selected from the Logs Menu the following screen will be displayed: List of available Logs (Navigation and selection via the buttons). Log View Menu Options View stored Combustion Logs (Option will appear if Logs are available). View stored Auxiliary Logs (Option will appear if Logs are available). -
Page 13: Pressure/Temperature Testing
TEMPERATURE TESTING Select the Temperature Rotary Dial position. Use the T1 connection for the Flue Probe temperature sensor Use the T2 connection for the Inlet temperature sensor Real time temperature difference Real time pressure reading (pressure will only show is fitted) PRESSURE TESTING WARNING Never attempt to take a pressure reading without knowing the maximum pressure that might be present. -
Page 14: Heat Exchanger Test
HEAT EXCHANGER TEST NOTE: Test results; O2, CO and Excess Air will show on the printout. There are many methods to test heat exchanger integrity. One of these is to observe the Excess Air, O2 and CO readings both before and after the blower turns on. -
Page 15: Printouts
To print, simply press and release the PRINT BUTTON. Printing can be aborted by pressing the PRINT BUTTON again. UEi Infrared Printer Make sure the printer is switched on, ready to accept data and its infrared receiver is in line with the analyzer’s infrared emitter (on top of the analyzer). - Page 16 iOS APP GUIDE Install the App • Free download from Apple App store ® • Search for “Kane Wireless Printer” and install Upon opening App the first time, it will ask you a series of questions: • Allow access to device location (GPS) •...
- Page 17 ANDROID APP GUIDE Installing the App • Free download from Google Play • Search for “Kane Wireless Printer” and install Upon opening App the first time, it will ask you a series of questions: • Allow access to device location (GPS) •...
-
Page 18: Specifications
SPECIFICATIONS Parameter Range Resolution Accuracy Temperature Measurement Flue Temperature 32˚ to 1112˚F (0˚ to 600˚) 0.1˚F (0.1˚C) ±(0 .3% rdg +3 .6˚F (2˚C)) Inlet Temperature (Internal Sensor) 32˚ to 122˚F (0° to 50°C) 0.2˚F (0.1˚C) ±2˚F (1˚C) Inlet Temperature (External Sensor) 32˚... -
Page 19: Where To Test
WHERE TO TEST Air Conditioning / Heat Pump Suction Line: • Temperature Verify proper: • Static Duct Pressures • Temperature Differential • Static Pressure Drop Across Coils to condensing unit Boiler & Water Heaters & High Efficiency Modulating Hot Water Systems Boiler HE Boiler Instant Water Water Heater... -
Page 20: What Results Are Generally Acceptable
WHERE TO TEST (CONT.) Furnaces (continued): Atmospheric, Gas & Oil Natural Gas & Propane Verify proper combustion: • O • CO Atmospheric Furnace • CO Draft • Stack Temp • Vent Pressure Verify proper • Efficiency • Temperature Rise • AC side Static Pressure Test Drop across coils •... -
Page 21: Powering Off
POWERING OFF When you power off the analyzer, there is a 10 second purge. Make sure you do not exceed the analyzer’s operating specifications. In particular: • Do not exceed the flue probes maximum temperature (1112˚F) • Do not exceed the analyzer’s internal temperature range •... -
Page 22: Replacing The Batteries
REPLACING THE BATTERIES This meter has been designed for use with both Alkaline or rechargeable Nickel Metal Hydride (NiMH) batteries. No other types are recommended and will void warranty. The analyzer is supplied with 3 (AA) size NiMH rechargeable batteries. These should be installed into the instrument. - Page 23 Same Day Service: All qualifying analyzers received for recertification through UEi Service+ are returned on the same business day .* Free Shipping: UEi Service+ offers free shipping both to and from our service center . When customers book their recertification, they receive a prepaid UPS Ground shipping label .
-
Page 24: Other Important Factors Relating To Combustion
UEi’s electronic combustion analyzers perform the measurements on a continuous basis, and can calculate the efficiency as adjustments are being made. Combine this with a printout and you are able to provide a before and after comparison of the combustion equipment in relatively little time as part of normal servicing. -
Page 26: Disposal
Any implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the express warranty. UEi shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expenses or economic loss.
