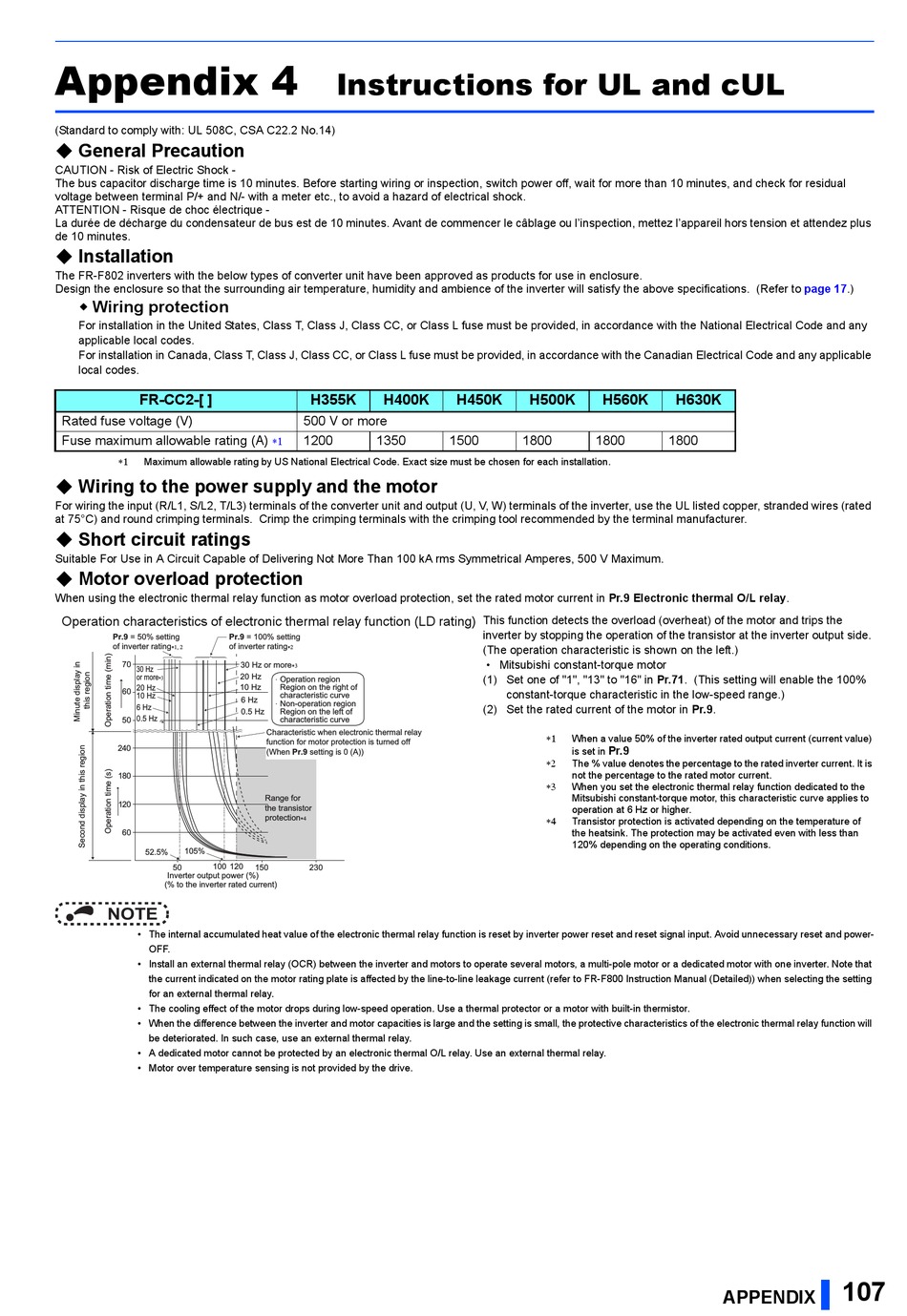

Appendix 4
(Standard to comply with: UL 508C, CSA C22.2 No.14)
 General Precaution
CAUTION - Risk of Electric Shock -
The bus capacitor discharge time is 10 minutes. Before starting wiring or inspection, switch power off, wait for more than 10 minutes, and check for residual
voltage between terminal P/+ and N/- with a meter etc., to avoid a hazard of electrical shock.
ATTENTION - Risque de choc électrique -
La durée de décharge du condensateur de bus est de 10 minutes. Avant de commencer le câblage ou l'inspection, mettez l'appareil hors tension et attendez plus
de 10 minutes.
 Installation
The FR-F802 inverters with the below types of converter unit have been approved as products for use in enclosure.
Design the enclosure so that the surrounding air temperature, humidity and ambience of the inverter will satisfy the above specifications. (Refer to
 Wiring protection
For installation in the United States, Class T, Class J, Class CC, or Class L fuse must be provided, in accordance with the National Electrical Code and any
applicable local codes.
For installation in Canada, Class T, Class J, Class CC, or Class L fuse must be provided, in accordance with the Canadian Electrical Code and any applicable
local codes.
FR-CC2-[ ]
Rated fuse voltage (V)
Fuse maximum allowable rating (A)

Maximum allowable rating by US National Electrical Code. Exact size must be chosen for each installation.
 Wiring to the power supply and the motor
For wiring the input (R/L1, S/L2, T/L3) terminals of the converter unit and output (U, V, W) terminals of the inverter, use the UL listed copper, stranded wires (rated
at 75°C) and round crimping terminals. Crimp the crimping terminals with the crimping tool recommended by the terminal manufacturer.
 Short circuit ratings
Suitable For Use in A Circuit Capable of Delivering Not More Than 100 kA rms Symmetrical Amperes, 500 V Maximum.
 Motor overload protection
When using the electronic thermal relay function as motor overload protection, set the rated motor current in Pr.9 Electronic thermal O/L relay.
Operation characteristics of electronic thermal relay function (LD rating)
Pr.9 = 50% setting
of inverter rating ∗1, 2
70
30 Hz
or more ∗3
20 Hz
60
10 Hz
6 Hz
0.5 Hz
50
240
180
120
60
105%
52.5%
100 120
50
Inverter output power (%)
(% to the inverter rated current)
NOTE
• The internal accumulated heat value of the electronic thermal relay function is reset by inverter power reset and reset signal input. Avoid unnecessary reset and power-
OFF.
• Install an external thermal relay (OCR) between the inverter and motors to operate several motors, a multi-pole motor or a dedicated motor with one inverter. Note that
the current indicated on the motor rating plate is affected by the line-to-line leakage current (refer to FR-F800 Instruction Manual (Detailed)) when selecting the setting
for an external thermal relay.
• The cooling effect of the motor drops during low-speed operation. Use a thermal protector or a motor with built-in thermistor.
• When the difference between the inverter and motor capacities is large and the setting is small, the protective characteristics of the electronic thermal relay function will
be deteriorated. In such case, use an external thermal relay.
• A dedicated motor cannot be protected by an electronic thermal O/L relay. Use an external thermal relay.
• Motor over temperature sensing is not provided by the drive.
Instructions for UL and cUL
H355K H400K
500 V or more
1200 1350

Pr.9 = 100% setting
of inverter rating ∗2
30 Hz or more
∗3
20 Hz
Operation region
10 Hz
Region on the right of
characteristic curve
6 Hz
Non-operation region
0.5 Hz Region on the left of
characteristic curve
Characteristic when electronic thermal relay
function for motor protection is turned off
(When Pr.9 setting is 0 (A))
Range for
the transistor
protection ∗4
150 230
H450K H500K H560K
1500 1800 1800
This function detects the overload (overheat) of the motor and trips the
inverter by stopping the operation of the transistor at the inverter output side.
(The operation characteristic is shown on the left.)
• Mitsubishi constant-torque motor
(1) Set one of "1", "13" to "16" in Pr.71. (This setting will enable the 100%
constant-torque characteristic in the low-speed range.)
(2) Set the rated current of the motor in Pr.9.

When a value 50% of the inverter rated output current (current value)
Pr.9
is set in

The % value denotes the percentage to the rated inverter current. It is
not the percentage to the rated motor current.

When you set the electronic thermal relay function dedicated to the
Mitsubishi constant-torque motor, this characteristic curve applies to
operation at 6 Hz or higher.

Transistor protection is activated depending on the temperature of
the heatsink. The protection may be activated even with less than
120% depending on the operating conditions.
page 17.)
H630K
1800
