Summary of Contents for Clarke CAT103

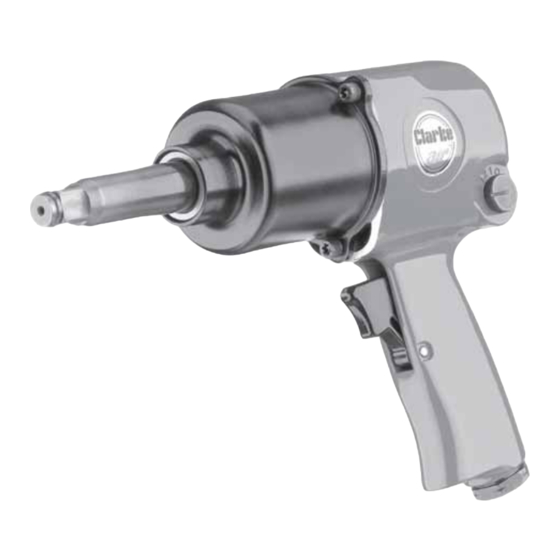

- Page 1 1/2” HEAVY DUTY IMPACT WRENCH 1/2” HEAVY DUTY IMPACT WRENCH MODEL No: CAT103 Part No: 3110859 OPERATION & MAINTENANCE INSTRUCTIONS 0707...
-
Page 2: Specifications
Part No ..............3110859 Please note that the details and specifications contained herein, are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the machine’s data plate... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS IMPORTANT FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT • Keep the work area clean and tidy. • Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. - Page 4 SAFETY PRECAUTIONS • Always disconnect from the air supply when: Performing any maintenance The impact wrench is not in use. The impact wrench will be left unattended. Moving to another work area. Passing the impact wrench to another person. • Never use the impact wrench if it is defective or operating abnormally.
-
Page 5: Air Supply
PARTS Anvil Direction Selector + Air Regulator Trigger Air Inlet AIR SUPPLY WARNING! COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source for the impact wrench. -
Page 6: Recommended Air Supply Connection
Your impact wrench is now ready for use. You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer.) WARNING! COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND... -
Page 7: Fitting The Impact Socket
OPERATING INSTRUCTIONS WARNING! WAIT UNTIL THE ANVIL HAS STOPPED ROTATING BEFORE OPERATING THE DIRECTION CONTROL SWITCH. USING THE DIRECTIONAL CONTROL BUTTON The direction control button should be used as follows. For normal tightening, the impact wrench should be operated in the forward (F) direction. -
Page 8: Adjusting The Power
OPERATING INSTRUCTIONS ADJUSTING THE POWER To adjust the power, set the air regulator to one of the 5 settings Air Regulator avalaible. 3300 rpm 6070 rpm 7216 rpm 7740 rpm 8000 rpm OPERATING THE IMPACT WRENCH Locate the socket over the nut to be tightened or loosened. -
Page 9: Maintenance
Drain water from air tank, air line and compressor. • Pour a few drops of CLARKE Air Line Oil, into the air inlet. This should be carried out regardless of whether or not an air line lubricator is used. If an Air line lubricator is not used, this procedure should be repeated after every two to three hours of use. -
Page 10: Parts Diagram
PARTS DIAGRAM PARTS LIST Index Part Description Index Part Description KLCAT10321 Cylinder KLCAT10301 Motor Housing KLCAT10302 Throttle Valve KLCAT10322 Cylinder Dowel KLCAT10323 Rotor Blade KLCAT10303 Throttle Valve Face KLCAT10324 Front End Plate KLCAT10304 Throttle Valve Spring KLCAT10305 Throttle Valve Stem KLCAT10325 Rear End Plate KLCAT10326... -
Page 11: Hand-Arm Vibration
HAND-ARM VIBRATION Employers are advised to refer to the HSE publication “Guide for Employers”. All hand held power tools vibrate to some extent, and this vibration is transmitted to the operator via the handle, or hand used to steady the tool. Vibration from about 2 to 1500 herz is potentially damaging and is most hazardous in the range from about 5 to 20 herz.
