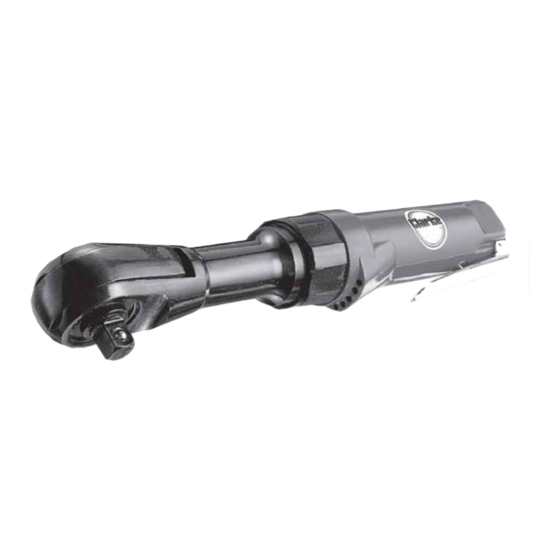

1/2" REVERSIBLE RATCHET
1/2" REVERSIBLE RATCHET
MODEL NO: CAT 22b + CAT 91
PART No: 3110411 & 3110847
OPERATION & MAINTENANCE
INSTRUCTIONS
0104

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3110411 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke 3110411

  • Page 1 1/2” REVERSIBLE RATCHET 1/2” REVERSIBLE RATCHET MODEL NO: CAT 22b + CAT 91 PART No: 3110411 & 3110847 OPERATION & MAINTENANCE INSTRUCTIONS 0104...
  • Page 2: Hand-Arm Vibration

    Values determined according to EN28622-1 Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the machines data plate...
  • Page 3 Service@clarkeinternational.com ACCESSORIES A wide range of Airline accessories is available, including Filter/Regulators, Lubricators, High Pressure Hoses from 5 to 100 Metres, etc. Contact your CLARKE dealer for further information, or CLARKE International Sales Department on 01992 565300 - 2 -...
  • Page 4: Safety Precautions

    They add weight a ¼” hose adapter, (A whip hose with Quick and could fail due to vibration. Fit coupling is available from your CLARKE ❐ DO NOT over-reach. Keep your proper dealer), then connect the other end to the footing and balance at all times.
  • Page 5: Maintenance

    If the Ratchet is to be stored, or is idle for Min Hose Size 1/4” (6mm) ID longer than 24 hours, run a few drops of Clarke Air Line Oil into the air inlet, and run Length 10” (254mm) the tool for 5 seconds in order to lubricate Weight 1.0 kg...
  • Page 6: Parts Diagram

    PARTS DIAGRAM PARTS LIST Index Part Description Index Part Description 103426 Ratchet Housing 106401 Bushing - Air Inlet 106427 106402 Handle 106428 Spring 106403 Throttle Lever 106429 Button 106404 106430 Washer 106405 Throttle Bushing 106431 106426 Valve 106432 Pawl 106407 ‘O’...
  • Page 7 HAND-ARM VIBRATION Employers are advised to refer to the HSE publication “Guide for Employers”. All hand held power tools vibrate to some extent, and this vibration is transmitted to the operator via the handle, or hand used to steady the tool. Vibration from about 2 to 1500 herz is potentially damaging and is most hazardous in the range from about 5 to 20 herz.
