AURATON Tucana SET Instruction Manual

AURATON Tucana SET Instruction Manual

Weekly, wireless thermostat with heating device controller (set)
Hide thumbs Also See for Tucana SET:

Advertisement

Quick Links

Download this manual

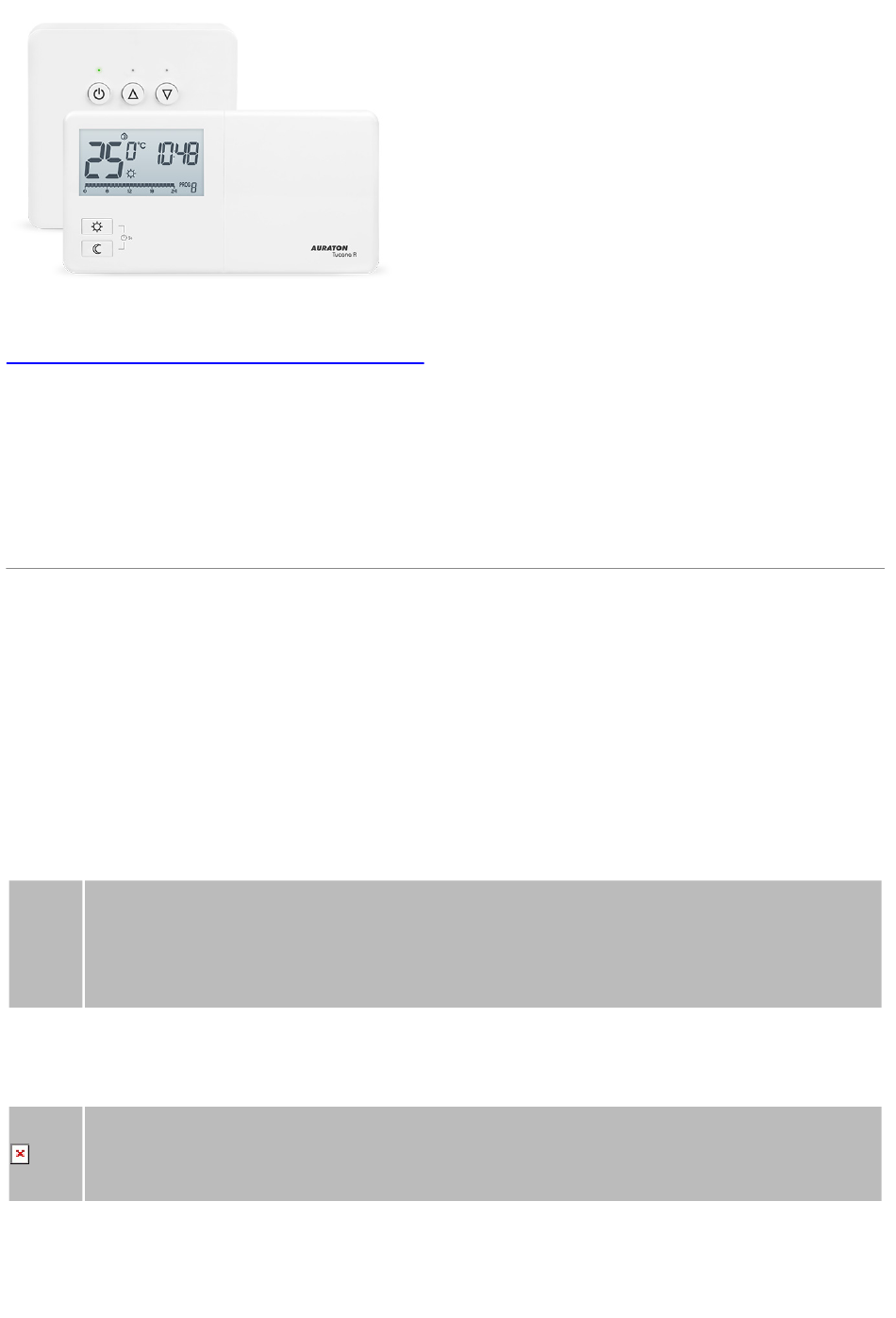

AURATON Tucana SET
Instruction manual version 20201122
The document contains information on the safety, installation, and use of the AURATON Tucana SET.
Weekly, wireless thermostat with heating device controller
(set)
AURATON Tucana SET is a set of a weekly, wireless thermostat with a controller of the AURATON
Fornax heating device, designed to work with a gas or electric heating device.
ST
4 independently settable temperatures
Day, night, anti-freeze, holiday.
UV
Work under load up to 16 A/10 A
The AURATON Fornax receiver is equipped with a relay that can operate under a load of up
16 A
to 16 A/10 A. The low-spark technology of switching the mains voltage causes minimal wear
of the relay contacts.
Interference-free communication between devices
The transmitter and the receiver from the Tucana R AURATON set communicate at 868 MHz.
Very short, encrypted data transmission packets (approx. 0.004 sec.) ensure efficient and
interference-free operation of the device.
Backlit LCD display
LCD
Due to a backlit display, we can monitor the operation of the device even in a poorly lit room
(3 backlight colours to choose from).

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tucana SET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AURATON Tucana SET

Summary of Contents for AURATON Tucana SET

  • Page 1 Weekly, wireless thermostat with heating device controller (set) AURATON Tucana SET is a set of a weekly, wireless thermostat with a controller of the AURATON Fornax heating device, designed to work with a gas or electric heating device. 4 independently settable temperatures Day, night, anti-freeze, holiday.
  • Page 2 Description of AURATON Tucana R weekly, wireless thermostat (transmitter) On the right side of the front part of AURATON Tucana R you will find a sliding cover. Slide it open to see the buttons. The cover can be removed for battery replacement.
  • Page 3 ) – It indicates what day of the week it is. Each day has a number assigned to it. Temperature – In its normal operating mode, AURATON Tucana R displays the temperature in the room where it is installed. Temperature unit – It indicates that the temperature is displayed in degrees Celsius (°C).
  • Page 4 It indicates the operation of AURATON Tucana R in anti-freeze mode (see chapter: ‘Anti-freeze mode). Manual control indicator ( It indicates the operation of AURATON Tucana R in manual mode (see chapters: ‘Manual control’ and ‘Holiday mode’) Broadcast symbol ( It indicates communication with the AURATON Aries or AURATON Fornax receiver.

  • Page 5: Battery Replacement

    The correct operation of AURATON Tucana R is largely influenced by its location. Using the device in a place with no air circulation or a place with direct sunlight may result in incorrect temperature control. AURATON Tucana R should be installed on the internal wall of a building (a partition wall), in an environment with free air circulation.
  • Page 6 Insert the wall plugs (included). Tighten the left screw with a 3 mm clearance. Place AURATON Tucana R through the screw head and slide to the right (note the keyhole-like opening on the rear cover of AURATON Tucana R).
  • Page 7 Tighten up the right screw so that it holds AURATON Tucana R mounted securely.
  • Page 8 2.7 mm (instead of 6 mm) and screw the screws directly into the wood. Turning AURATON Tucana R on for the first time After inserting the batteries correctly into the battery compartment, the LCD screen will display all the...
  • Page 9 After a while, AURATON Tucana R will automatically go to the hour setting. An item flashing on the screen indicates that it is currently in editing mode. Use the buttons to set the desired hour and confirm the setting with the...
  • Page 10 Tucana AURATON will go to the minute setting. Use the buttons again to set the desired minute value and confirm the setting by pressing the button. A flashing day of the week symbol appears in the upper left corner. Use the buttons to set the desired day and confirm the selection with the...

  • Page 11: Setting The Clock

    NOTE: If no button is pressed for 60 seconds during the initial hour setting, AURATON Tucana R will automatically enter its normal operating mode. NOTE: If no button is pressed for 10 seconds during the programming of any other functions, it is equivalent to using the button.
  • Page 12 Then press the button again. The minute segment starts flashing. Use the buttons to set the desired minute value. Confirm the above settings with the button.
  • Page 13 Selecting the day of the week To set the day of the week: Press the . button. One of the digits symbolising the relevant day of the week will start flashing on the display. Use the buttons to select the correct day of the week. Confirm the above settings with the button.
  • Page 14 LO HI temperature If the ambient temperature is below 5 °C, the display will show ‘LO’. If the ambient temperature is above 35 °C, the display will show ‘HI’.
  • Page 15 – 19,0 °C anti-freeze temperature – 7,0 °C Programming the day, night and anti-freeze temperatures AURATON Tucana R allows you to program 3 types of temperature: Day temperature ( ) – from 5 to 30 °C Night temperature ( ) –...

  • Page 16: Introduction To Programming

    – anti-freeze temperature. Use the buttons to set the desired temperature. By pressing the button again, toggle between the subsequent types of temperatures to be set After setting all the 3 temperatures, confirm the settings with the button. IMPORTANT: The night temperature setting can be equal to or lower than the day temperature. It is impossible for the night temperature to be higher than the day temperature.

  • Page 17: Factory Programs

    Factory programs In order for AURATON Tucana R to know when to turn on the day and night temperatures, you should be set to an appropriate program for each day of the week. For this purpose, you can use one of the three factory programs (from 0 to 2): Program no.

  • Page 18: Weekly Programming

    Programming Weekly programming In order to program the AURATON Tucana R, it is necessary to decide on which day of the week and during what period of time the day temperature should be maintained. During the remaining time, the night temperature will be maintained.
  • Page 19 Press the button. The program description field starts flashing. Press the button. Using the buttons or the button set the day of the week when the program should be executed.
  • Page 20 Pressing the button several times, select the desired program number. Programs no. 0-2 are factory-defined and programs no. 3-9 can be modified. Confirm the setting with the button. Return to step 1 and repeat the above procedure for the next day of the week. Programming can end when each day of week is assigned an appropriate program.
  • Page 21 Press the button. Using the buttons or the button, set the day of the week when the program should be executed.
  • Page 22 Press the button several times and select program number 3 to 9 (user modifiable). All (24) black rectangles will be lit on the timeline, each symbolising 1 hour. A visible rectangle means that the day temperature is to be achieved during a given hour. No rectangle above the timeline is tantamount to planning the night temperature.
  • Page 23 Press the button to select the day temperature (a lit rectangle) or the night temperature (no rectangle) on the timeline.

  • Page 24: Manual Control

    Use the buttons to highlight subsequent hours on the timeline and select the day or night temperature for each hour (we toggle between a lit rectangle and no rectangle with the buttons). After modifying the whole timeline, save the program with the button.

  • Page 25: Holiday Mode

    We sometimes leave our homes for longer periods. To avoid reprogramming the whole AURATON Tucana R device, we can use the holiday mode, which makes AURATON Tucana R achieve only one temperature during our absence. The holiday mode can last from a minimum of 1 hour and to a maximum of 99 days.
  • Page 26 Press and hold the button for 3 seconds. The display will show the temperature and a flashing time field for setting the holiday mode duration. Use the buttons to set the duration at 1 to 23 hours and then 1 to 99 days. Confirm the setting with the button.
  • Page 27 The holiday temperature is independent of the day, night or anti-freeze temperatures. Setting the anti-freeze temperature program In AURATON Tucana R, you can set the anti-freeze temperature in the range of 0 °C to 10 °C but it cannot be deactivated (the factory setting of the anti-freeze temperature is 7 °C).
  • Page 28 0 on the desired day of the week. Heating device operating time meter AURATON Tucana R has a function of measuring the operating time of the heating device. It is activated by pressing and holding the button for 5 seconds. For 10 seconds, the thermostat display will show the operating time of the heating device since the last reset of the device.
  • Page 29 Descrption of the AURATON Fornax weekly, wired thermostat (transmitter) AURATON Fornax (receiver) cooperates with the wireless AURATON Pavo R regulator (transmitter). The receiver is mounted next to the heating device and can work under a load up to 16 A/10 A .
  • Page 30 The diode is red – the actuator device is switched on (the COM and NO contacts are closed). The diode is blinking green – the AURATON Fornax receiver is waiting for device pairing – chapter: “Pairing the AURATON wireless thermostat (transmitter) with AURATON Fornax –...
  • Page 31 AURATON Fornax. Wires can be routed from the bottom of AURATON Fornax after holes are punched in the mounting plug or from the back of AURATON Fornax if the wires are pulled out of the wall. To connect from the back, break the plug.
  • Page 32 Remove the cover of the front part of Auraton Fornax by unscrewing the screws halfway. Connect the heating device to the clips of the AURATON Fornax control connector. Follow the service manual of the heating device. COM (common) and NO (normally open circuit) clips are most commonly...
  • Page 33 Connect the power supply wires to the clips of the power supply connector of the AURATON Fornax receiver, observing safety rules. Wire mounting bracket. Once the wires are connected, secure them with the “wire mounting bracket” and screw the cover back onto the AURATON Fornax receiver.
  • Page 34 Mark the location of the holes for the mounting screws on the wall. Drill holes with diameters of the attached plugs (5 mm) where marked. Insert wall plugs into the drilled holes. Screw the AURATON Fornax receiver to the wall with the screws, so that the device is fixed securely. NOTE: If the wall is wooden, there is no need to use wall plugs.
  • Page 35 To switch off the AURATON Fornax e.g. outside the heating season, hold down the power button for 3 seconds until there is an audible double sound signal, and the green power diode switches off, which means that the heating device has also been switched off.
  • Page 36 3 seconds. The AURATON Fornax receiver will wait for unpairing from the device for 120 seconds. After this period, it will automatically return to its normal operation.
  • Page 37 If there is an unpairing error, please repeat steps 1 and 2. In case of further errors, unpair the paired device, see “RESET – Unpairing a device paired with AURATON Fornax – wireless heating or air- conditioning device controller (receiver)”.

  • Page 38: Configuration Settings

    The MASTER RESET function of AURATON Tucana R The MASTER RESET function restores factory settings. It is activated by pressing the and RESET ( RESET buttons simultaneously. NOTE: All user programs will be deleted! Configuration settings Configuration settings are set one after another:...
  • Page 39 Confirm the selection with the button. AURATON Tucana R will go to the next parameter changing mode. Changes in hysteresis Hysteresis is supposed to prevent too frequent activation of the actuator due to small temperature fluctuations.
  • Page 40 AURATON Tucana R indicates that the room temperature is 23 °C and a standard wall thermometer hanging next to it indicates 24 °C. Changing the offset by +1 degree will make AURATON Tucana R indicate the same temperatures as the wall thermometer.

  • Page 41: Clock Calibration

    This function is used to correct the clock indications in case of any deviations. If the clock is working incorrectly within a week, the extent of incorrect clock indications should be determined. This value should be entered in AURATON Tucana R in the form of seconds.
  • Page 42 (60 + 20 = 80). In this case you should slow down the clock by setting C -80. Example 2: After a week of operation, the clock in AURATON Tucana R is 2 minutes slow (2 x 60 = 120). In this case you should speed up the clock by setting C 120.

  • Page 43: Special Cases

    AURATON Fornax receiver (the LED diode will alternate blinking red and green). Until the problem is resolved, the receiver will enter the stored on/off cycle from the last 24 hours. When the signal from AURATON Tucana R returns, the error is cleared and the AURATON Fornax...

  • Page 44: Additional Remarks

    The AURATON Fornax receiver is equipped with a unique algorithm for analysing the on/off cycles. The entire heating cycle from the last 24 hours is stored in AURATON Fornax memory. In the event of loss of communication with the AURATON wireless thermostat (transmitter), AURATON Fornax will automatically execute the stored on/off...
  • Page 45 Diagram of connection of AURATON Fornax...

  • Page 46: Cleaning And Maintenance

    868.850 MHz Radio frequency: 869.000 MHz Radio signal strength: Up to 11 dBm Level of security: IP20 AURATON Tucana R: Power supply: 2 x AA (2 x 1.5 V), alkaline Number of temperature levels: 4 Anti-freeze temperature: 4 – 10 °C...
  • Page 47 The user shall return it to a collection point for electrical and electronic waste. Hereby, LARS Andrzej Szymanski declares that the radio equipment type AURATON Pavo SET is in compliance with Directive 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available below in the download area.
  • Page 48 64-320 Niepruszewo www.auraton.pl Download User manual AURATON Tucana R declaration of conformity AURATON Fornax declaration of conformity...
