Art # A-04695
To Power
Supply Adapter
APPENDIX

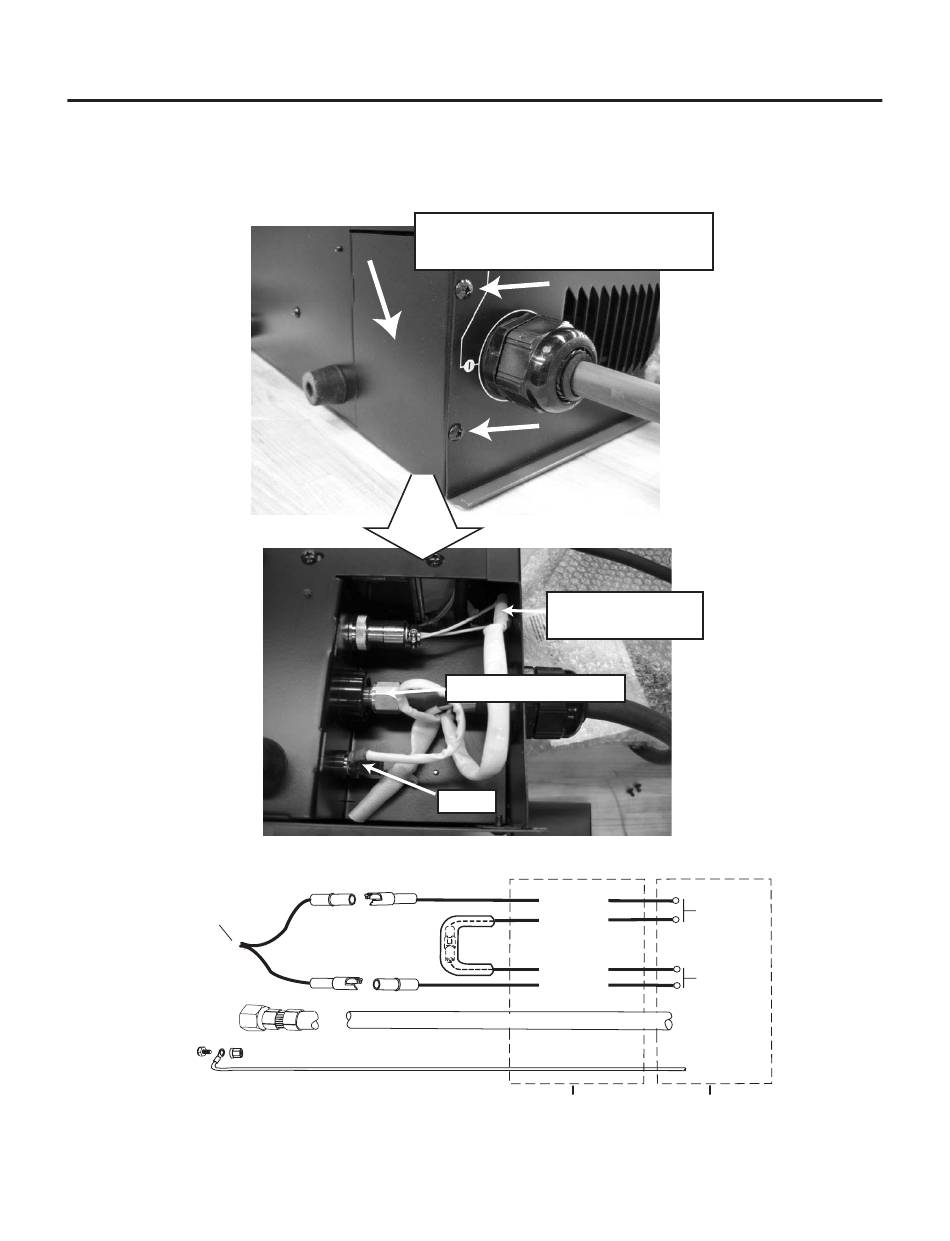

Appendix 2: Torch Connection
DETAIL
Negative / Plasma Lead
Pilot
Disconnect power and air. Lay unit
on its side. Remove two screws and
access plate.
Power Supply
Adapter Connections
Negative / Plasma Lead
Pilot
Black
Orange
Green
White
Pilot
Torch Leads
A-2
PIP
Switch
Torch
Switch
Torch Head
Manual 0-4687
