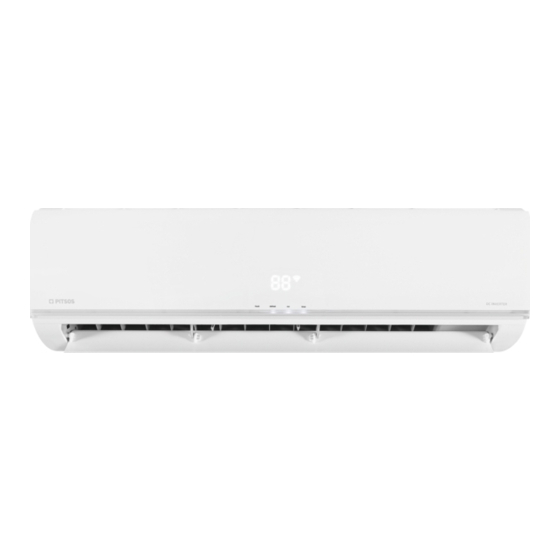

SPLIT-TYPE ROOM AIR CONDITIONER
Owner's Manual
Forest Series
All Model Numbers
P1ZAI0980W
P1ZAI1280W
P1ZAI1880W
P1ZAI2480W
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.
CS78421-548-754
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Perfect Aire Forest Series
Summary of Contents for Perfect Aire Forest Series
- Page 1 SPLIT-TYPE ROOM AIR CONDITIONER Owner’s Manual Forest Series All Model Numbers P1ZAI0980W P1ZAI1280W P1ZAI1880W P1ZAI2480W CS78421-548-754 IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
- Page 2 Table of Contents Owner’s Manual Safety Precautions ............04 Unit Specifications and Features ......06 SAFETY FIRST Manual Operation (Without Remote) ....11...
- Page 3 Care and Maintenance .............12 Troubleshooting ..............14 European Disposal Guidelines ........18...
- Page 4 Safety Precautions Read Safety Precautions Before Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. This symbol indicates that ignoring instructions may cause death or serious injury.
- Page 5 ELECTRICAL WARNINGS Only use the specified power cord. If the power cord is damaged, it must be replaced by the • manufacturer or certified service agent. Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty •...
- Page 6 Unit Specifications and Features Unit Parts Front Panel Power Cable (Some Units) Remote Control Remote Control Holder Louver (Some Units) Display window(A) Display window(C) Display window(B) fresh defrost run timer fresh defrost run timer fresh defrost run timer fresh “ ”...
- Page 7 Achieving Optimal Performance Optimal performance for the COOL, HEAT, and DRY modes can be achieved in the following temperature ranges. When your air conditioner is used outside of these ranges, certain safety protection features will activate and cause the unit to perform less than optimally. Inverter Split Type FOR OUTDOOR UNITS COOL mode...
- Page 8 For a detailed explanation of each function, Air Filter Reminders (some units) • refer to the Remote Control Manual. Air Filter Cleaning Reminder After 240 hours of use, the “run” & “timer” indicator lamps on the indoor Other Features unit will flash simultaneously and the display window on the indoor unit will Auto-Restart •...
- Page 9 Setting Angle of Air Flow • Setting vertical angle of air flow While the unit is on, use the SWING/DIRECT button to set the direction (vertical angle) of airflow. Press the SWING/DIRECT button once to activate the louver. Each time you press the button, it will adjust the louver by 6°.
- Page 10 Sleep Operation • The SLEEP function is used to decrease energy use while you sleep (and don’t need the same temperature settings to stay comfortable). This function can only be activated via remote control. Press the SLEEP button when you are ready to go to sleep.
- Page 11 Manual Operation (Without Remote) How to operate your unit without CAUTION the remote control The manual button is intended for testing In the event that your remote control fails to purposes and emergency operation only. Please work, your unit can be operated manually with do not use this function unless the remote is the MANUAL CONTROL button located on lost and it is absolutely necessary.
- Page 12 Care and Maintenance Rinse the filter with fresh water, then shake Cleaning Your Indoor Unit off excess water. BEFORE CLEANING OR Dry it in a cool, dry place, and refrain from exposing it to direct sunlight. MAINTENANCE When dry, re-clip the air freshening filter to ALWAYS TURN OFF YOUR AIR CONDITIONER the larger filter, then slide it back into the SYSTEM AND DISCONNECT ITS POWER SUPPLY...
- Page 13 Maintenance – CAUTION Long Periods of Non-Use Before changing the filter or cleaning, • If you plan not to use your air conditioner for an turn off the unit and disconnect its power extended period of time, do the following: supply.
- Page 14 Troubleshooting SAFETY PRECAUTIONS If ANY of the following conditions occurs, turn off your unit immediately! The power cord is damaged or abnormally warm • You smell a burning odor • The unit emits loud or abnormal sounds • A power fuse blows or the circuit breaker frequently trips •...
- Page 15 Issue Possible Causes A rushing air sound may occur when the louver resets its position. The indoor unit makes noises A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit’s plastic parts.
- Page 16 Troubleshooting When troubles occur, please check the following points before contacting a repair company. Problem Possible Causes Solution Temperature setting may be higher than ambient Lower the temperature setting room temperature The heat exchanger on the indoor or outdoor unit is Clean the affected heat exchanger dirty Remove the filter and clean it...
- Page 17 Problem Possible Causes Solution Wait for the power to be Power failure restored The power is turned off Turn on the power The fuse is burned out Replace the fuse The unit is not working Remote control batteries are Replace batteries dead The Unit’s 3-minute protection Wait three minutes after...
- Page 18 European Disposal Guidelines This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. Do not dispose of this product as household waste or unsorted municipal waste. When disposing of this appliance, you have the following options: •...
- Page 19 AIR CONDITIONER REMOTE CONTROLLER ILLUSTRATION The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. CR132-RG57A3 16117000A00610 Thank you very much for purchasing our air conditioner. 20170216 Please read this owner's manual carefully before using your air conditioner.
- Page 20 Remote Controller Specifications CONTENTS Model RG57A3/BGEF, RG57A2/BGEF, RG57B/BGE,RG57D/BGE 3.0V(Dry batteries R03/LR03×2) Rated Voltage Signal Receiving Remote controller Specifications........... Range Operation buttons ................Environment -5 C~60 C Indicators on LCD ................How to use the buttons ..............Auto operation................. Cooling/Heating/Fan operation............Dehumidifying operation ...............
- Page 21 Operation of buttons Operation of buttons ON/OFF Button UP Button( This button turns the air conditioner ON Push this button to increase the indoor and OFF. temperature setting in 1 C increments to 30 C. MODE Button DOWN Button( Press this button to modify the air conditioner Push this button to decrease the indoor mode in a sequence of following: temperature setting in 1 C increments to 17 C.
- Page 22 Operation of buttons Indicators on LCD Swing Button (applicable to RG57(A2)A3/BGEF) Used to stop or start vertical louver movement Information are displayed when and set the desired left/right air flow direction. Mode display the remote controller is powered The vertical louver changes 6 degree in angle AUTO COOL for each press.
- Page 23 How to use the buttons How to use the buttons Dehumidifying operation Auto operation Ensure the unit is plugged in and power is available. The OPERATION indicator on the Ensure the unit is plugged in and power is display panel of the indoor unit starts flashing. available.
- Page 24 Timer operation CAUTION Press the TIMER ON button can set the auto-on When you select the timer operation, the remote controller automatically transmits the time of the unit. Press the TIMER OFF button timer signal to the indoor unit for the specified time. Therefore, keep the remote can set the auto-off time of the unit.
- Page 25 TIMER ON → TIMER OFF TIMER OFF (Off → Start → Stop operation) (Auto-off Operation) This feature is useful when you want to start The TIMER OFF feature is useful when you want the the air conditioner before you wake up and unit to turn off automatically after you go to bed.
- Page 26 Handling the remote controller Replacing batteries The following cases signify exhausted batteries. Replace old batteries with new ones. Location of the remote controller. Receiving beep is not emitted when a signal Use the remote controller within a distance of 8 is transmitted.
