TECHNICAL & SERVICE MANUAL
MULTI-ZONE QUICK CONNECT
DUCTLESS MINI-SPLIT SYSTEM

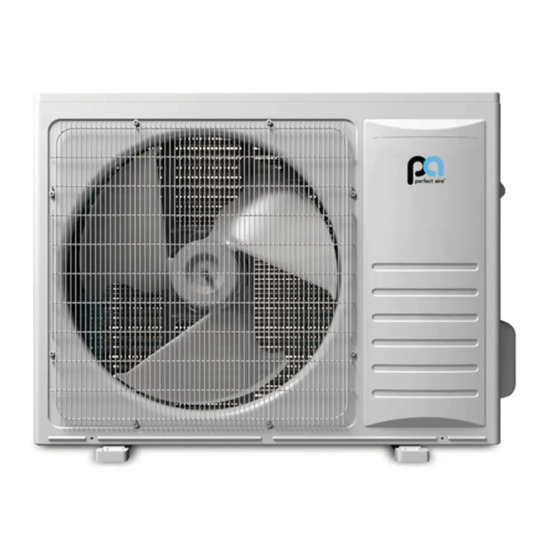

OUTDOOR CONDENSER
MODEL: 3PAMSHHQC18-MZO2 / 3PAMSHHQC24-MZO3
