  • Page 2 Basketball Elite GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email:service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Basketball Elite GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2.CONTENTS OF THE ACCESSORY KIT ..............7 3. PART NAME ......................8 4. SET UP & INSTALLATION ..................9 5. HOW TO PLAY ...................... 17 6. GAME OPTION ..................... 21 7.

  • Page 4: Important Safety Instructions

    Basketball Elite GMP Manual Thank you for purchasing Basketball Elite GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Basketball Elite GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Basketball Elite GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz Min. Power consumption: 180W Max. Power consumption: 270W Dimension: W31.97×D96.85×H97.6 in W812 ×D2460 ×H2480 mm Weight：Approximately 396.83 lb/ 180 kg Part No: B137 Model No: C-598 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Basketball Elite GMP Manual Packing Size:W30.7×D55×H34.65 in W780 ×D1396 ×H880 mm Note: Game specifications are subject to change without notice. 08/26/2020...

  • Page 8: Contents Of The Accessory Kit

    Basketball Elite GMP Manual 2.CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Part No. Code Name SPEC Picture 3×16AWG 1 B137-801-000 2.33.01.010020 Power cord 1.8M Φ5×20mm 2 B137-422-000 2.19.01.000012 Fuse T5A 250VAC 3 B137-443-000 4.10.000023 Basketball...

  • Page 9: Part Name

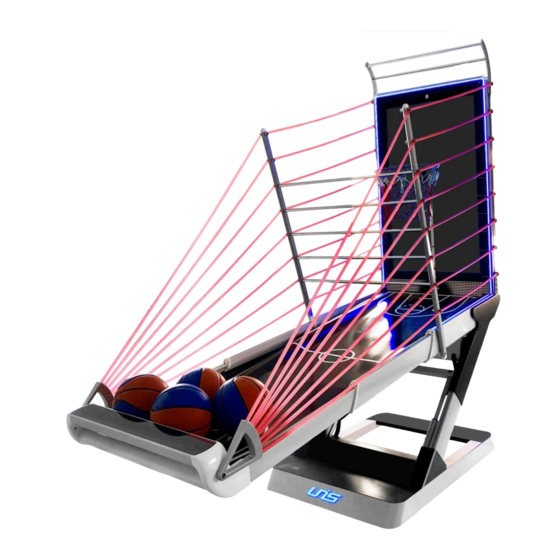

    Basketball Elite GMP Manual 3. PART NAME Key Components Camera Monitor Hoop Ball Track Ball Rope Touch Screen/ Control Panel Base Assembly 08/26/2020...

  • Page 10: Set Up & Installation

    Basketball Elite GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ...
  • Page 11 Basketball Elite GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly. 08/26/2020...
  • Page 12 Basketball Elite GMP Manual 4.4Machine Installation Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Allen wrench Step 1 Utilize Allen wrench to tighten 4 screws to fix the Top baffle to the Monitor Assembly. Monitor Assembly Name Top baffle...
  • Page 13 Basketball Elite GMP Manual Step 2 Install 2 Rope back plate on the Monitor assembly. Utilize Allen wrench to tighten 16 screws to secure the Rope back plate. Hexagon socket flat Name round head screw Spec. M8X30 Rope back plate Name Rope back plate Step 3 Turn the Monitor vertical as shown below.
  • Page 14 Basketball Elite GMP Manual Step 4 Loosen the Hoop fixing plate screw to turn the Hoop down. Tighten the screw back. Hoop Hexagon socket flat Name round head screw Spec. M6X16 Screw Step 5 Loosen 2 quick screws to extend the Ball track plate. Tighten the screw back after extending the Ball track.
  • Page 15 Basketball Elite GMP Manual Step 6 Utilize Allen wrench to tighten 10 screws to fix the Block ball plate to the Rope front plate. Hexagon socket flat Name round head screw Spec. M8X20 Rope front plate Block ball plate Step 7 Utilize Allen wrench to tighten 2 screws to fix the Block ball assembly to the Ball track.
  • Page 16 Basketball Elite GMP Manual Step 8 Utilize Allen wrench to tighten 2 screws to fix the Triangle plate to the Control panel. Stick Rope to the Net fixing plate plug. Utilize Rubber circle to secure the Net fixing plug. Name Hexagon socket flat round head screw Spec.
  • Page 17 Basketball Elite GMP Manual Step 10 Power on the machine. Utilize Control panel to enter Game settings to adjust machine height. Finish! 08/26/2020...

  • Page 18: How To Play

    Basketball Elite GMP Manual 5. HOW TO PLAY 1. Touch button to start, choose Fitness Mode or Game mode. 2. Game mode have 4 round. Each round need shoot balls in limited time to reach the target score to pass the stage. 2.1 Round 1: Shoot balls in limited time to reach the target score to pass the stage.
  • Page 19 Basketball Elite GMP Manual 2.3 Round 3: Shoot balls and the horizontal line will grow high. If the horizontal line reaches the top line, pass the stage. 2.4 Round 4: There is a scoring area with different points. When you field the goal, you get the point in the scoring area where the basketball in the monitor is on.
  • Page 20 Basketball Elite GMP Manual 3. Fitness Mode have 3 different challenge:30s Challenge,60s Challenge and Endless Challenge. 3.1 In 30s Challenge and 60s Challenge, the number of shots is increasing, the skill level of evaluation will also be upgraded. 3.2 In the endless challenge, Player can shot ball without any time limit. Press OK to end the game.
  • Page 21 Basketball Elite GMP Manual 3.3 The game records the shots, real-time movement status, etc, and finally summarizes the player's physical test data. 08/26/2020...

  • Page 22: Game Option

    Basketball Elite GMP Manual 6. GAME OPTION Utilize Control panel to enter Game settings Options Status Description Language Adjust language 中文/English Volume Adjust Volume Demo Music ON/OFF Demo Music open or off Machine Height Adjust Machine height Press button to confirm Back 08/26/2020...

  • Page 23: Troubleshooting

    Contact with UNIS Service. Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off in off state. anomaly. Please contact with UNIS Service. Low volume Raise the volume. Connector loose. Check connector.

  • Page 24: Maintenance & Inspection

    Basketball Elite GMP Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.

  • Page 25: Overall Construction

    Basketball Elite GMP Manual 9. OVERALL CONSTRUCTION 9.1 Base Assembly Part No. Code No. Name 1 B137-120-000 202.1.2003.015 Front cover plate 2 B137-119-001 202.1.2003.014A LOGO plate 3 B137-190-000 206.1.2003.002 LOGO light plate 4 B137-121-000 202.1.2003.016 Middle cover plate 5 B137-163-000 202.1.2003.058 Base metal plate 6 B137-432-000 2.51.00.010001 leveller...
  • Page 26 Basketball Elite GMP Manual Part No. Code No. Name 11 B137-151-001 202.1.2003.046A Rocket switch plate 12 B137-164-001 202.1.2003.059A R base plate 13 B137-166-001 202.1.2003.061A Middle base plate 14 B137-118-000 202.1.2003.013 R pin connect plate 15 B137-437-000 2.51.05.040012 Push rod 16 B137-193-000 206.1.2003.005 L cover 17 B137-125-000 202.1.2003.020 R rod connect plate...
  • Page 27 Basketball Elite GMP Manual Part No. Code No. Name 36 B137-167-001 202.1.2003.062A L base plate 37 B137-115-000 202.1.2003.010 L base connect plate 38 B137-117-000 202.1.2003.012 L pin connect plate 39 B137-187-000 203.1.2003.003 Light strip support plate 1 40 B137-189-000 203.1.2003.005 Middle support plate 9.2 Hoop&Monitor Assembly 08/26/2020...
  • Page 28 Basketball Elite GMP Manual Part No. Code No. Name 1 B137-110-000 202.1.2003.005 Hoop 2 B137-109-000 202.1.2003.004 Hoop plate 3 B137-105-000 2.60.00071001 Shakeproof screw 4 B137-111-001 202.1.2003.006A Sensor plate 5 B137-108-000 202.1.2003.003 Hoop bracket 6 B137-107-000 202.1.2003.002 Hoop fixing plate 7 B137-182-000 202.1.2003.077 Sensor cable tube 8 B137-106-000 202.1.2003.001 Speaker plate...
  • Page 29 Basketball Elite GMP Manual Part No. Code No. Name 26 B137-157-000 202.1.2003.052 Monitor frame top plate 27 B137-147-001 202.1.2003.042A Camera plate 28 B137-144-001 202.1.2003.039A Shakeproof screw plate 29 B137-145-001 202.1.2003.040A Buckle 30 B137-405-000 2.11.07.040029 Camera 31 B137-139-001 202.1.2003.034A Top frame plate 32 B137-161-000 202.1.2003.056 M6 T type plate 33 B137-112-000 202.1.2003.007...
  • Page 30 Basketball Elite GMP Manual 9.3 Ball Track Assembly Part No. Code No. Name 1 B137-134-001 202.1.2003.029A Ball track front cover plate 2 B137-132-001 202.1.2003.027A Ball track front plate 3 B137-133-001 202.1.2003.028A Ball track pressing plate 4 B137-196-000 206.1.2003.008 Control panel R inner plate 5 B137-130-000 202.1.2003.025 Control panel R connect plate 1 6 B137-168-000 202.1.2003.063 T type plate...
  • Page 31 Basketball Elite GMP Manual Part No. Code No. Name 13 B137-207-000 206.1.2003.019 R track protective plate(L) 14 B137-434-000 201.01.009004 Handle screw(adjust) 15 B137-161-000 202.1.2003.056 M6 T type plate 16 B137-136-000 202.1.2003.031 Ball track connect plate(L) 17 B137-433-000 201.01.009003 Handle screw 18 B137-199-000 206.1.2003.011 R track protective plate(S) 19 B137-137-000 202.1.2003.032...
  • Page 32 Basketball Elite GMP Manual Part No. Code No. Name 38 B137-175-001 202.1.2003.070A L track plate(M) 39 B137-206-000 206.1.2003.018 L track cover(L) 40 B137-177-000 202.1.2003.072 L front track plate(L) 41 B137-208-000 206.1.2003.020 L track protective plate(L) 1 42 B137-181-000 202.1.2003.076 Block ball plate 43 B137-180-000 202.1.2003.075 Rope back plate 44 B137-135-000 202.1.2003.030 Ball track connect plate(M) 1...
  • Page 33 Basketball Elite GMP Manual 9.4 Decal Part No. Code No. Name 1 B137-712-000 205.1.2003.001 Monitor decal 2 B137-713-000 205.1.2003.002 Ball track plastic 1 3 B137-714-000 205.1.2003.003 LOGO decal 4 B137-719-000 205.1.2003.008 Wiring decal 1set 08/26/2020...
  • Page 34 Basketball Elite GMP Manual 08/26/2020...
  • Page 35 Basketball Elite GMP Manual Part No. Code No. Name 1 B137-702-000 2.56.00.000036 High voltage label(s) 2 2 B137-710-000 2.56.00.000097 Network label 3 B137-701-000 2.56.00.000016 Power supply label 4 B137-708-000 2.56.00.000080 Fuse label(T5A/125V) 1 5 B137-707-000 2.56.00.000074 Fuse label(T5A/250V) 1 6 B137-705-000 2.56.00.000071 110V decal 7 B137-706-000 2.56.00.000072 220V decal...
  • Page 36 Basketball Elite GMP Manual 9.5 Electrical Component Part No. Code No. Name 1 B137-405-000 2.11.07.040029 Camera B137-417-000 2.28.01.000005 Speaker B137-412-000 2.33.05.000010 Audio cable 3 B137-431-000 2.65.03.000286 Chain 4 B137-428-000 2.20.02.015017 BG5050B light strip 7.87in(200mm) 5 B137-404-000 297.9.1911001 Touch button 6 B137-427-000 2.20.02.018004 Light strip(blue) 133.85in(3400mm) 7 B137-407-000 2.15.01.000041 Sensor B137-425-000 2.21.4.0000012...
  • Page 37 Basketball Elite GMP Manual Part No. Code No. Name 1 B137-409-000 2.16.02.000115 Power supply(12V) 2 B137-421-000 2.17.14.000148D Fuse board(green holder) 1 3 B137-403-000 297.9.0300007A U6 mainboard Recovery stick B137-406-000 4.13.00000007 B137-102-000 2.60.00064000 Recovery stick plate 5 B137-401-000 297.9.2004001 Mainboard 6 B137-101-000 2.60.00042000A Wiring box B137-415-000 2.33.02.000001 Network port...

  • Page 38: Wiring Diagram

    Basketball Elite GMP Manual 10. WIRING DIAGRAM 08/26/2020...
