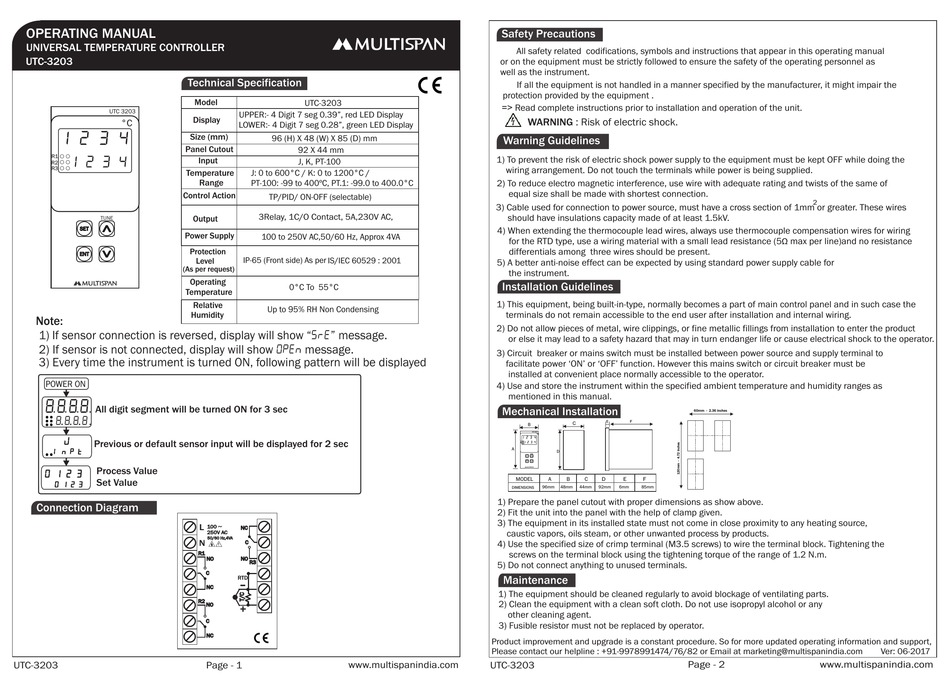

MULTISPAN UTC-3203 Operating Manual

OPERATING MANUAL
UNIVERSAL TEMPERATURE CONTROLLER
UTC-3203
Technical Specification
UTC 3203
°C °C
1 2 3 4
Size (mm)
Panel Cutout
R1
1 2 3 4
R2
R3
Temperature
Control Action
Power Supply
Protection
ENT
(As per request)
Operating
Temperature
Humidity
Note:
1) If sensor connection is reversed, display will show "SRE" message.
2) If sensor is not connected, display will show Open message.
3) Every time the instrument is turned ON, following pattern will be displayed
POWER ON
8 8 88
All digit segment will be turned ON for 3 sec
8 8 8
8
j
Previous or default sensor input will be displayed for 2 sec
I N P t
Process Value
0 1 2 3
Set Value
0 1 2 3
Connection Diagram
UTC-3203
Model
UTC-3203
UPPER:- 4 Digit 7 seg 0.39", red LED Display
Display
LOWER:- 4 Digit 7 seg 0.28", green LED Display
96 (H) X 48 (W) X 85 (D) mm
92 X 44 mm
Input
J, K, PT-100
J: 0 to 600°C / K: 0 to 1200°C /
Range PT-100: -99 to 400ºC, PT.1: -99.0 to 400.0°C
TP/PID/ ON-OFF (selectable)
3Relay, 1C/O Contact, 5A,230V AC,
Output
100 to 250V AC,50/60 Hz, Approx 4VA
IP-65 (Front side) As per
Level IS/IEC 60529 : 2001
0°C To 55°C
Relative
Up to 95% RH Non Condensing
~
L 100
NC
250V AC
50/60 Hz,4VA
N C
!
R1
NO NO
R3
C
RTD
NC
R2
NO
C
NC
Page - 1 www.multispanindia.com
Safety Precautions
All safety related codifications, symbols and instructions that appear in this operating manual
or on the equipment must be strictly followed to ensure the safety of the operating personnel as
well as the instrument.
If all the equipment is not handled in a manner specified by the manufacturer, it might impair the
protection provided by the equipment .
=> Read complete instructions prior to installation and operation of the unit.
WARNING : Risk of electric shock.
Warning Guidelines
1) To prevent the risk of electric shock power supply to the equipment must be kept OFF while doing the
wiring arrangement. Do not touch the terminals while power is being supplied.
2) To reduce electro magnetic interference, use wire with adequate rating and twists of the same of
equal size shall be made with shortest connection.
3) Cable used for connection to power source, must have a cross section of 1mm or greater. These wires
should have insulations capacity made of at least 1.5kV.
4) When extending the thermocouple lead wires, always use thermocouple compensation wires for wiring
for the RTD type, use a wiring material with a small lead resistance (5
differentials among three wires should be present.
5) A better anti-noise effect can be expected by using standard power supply cable for
the instrument.
Installation Guidelines
1) This equipment, being built-in-type, normally becomes a part of main control panel and in such case the
terminals do not remain accessible to the end user after installation and internal wiring.
2) Do not allow pieces of metal, wire clippings, or fine metallic fillings from installation to enter the product
or else it may lead to a safety hazard that may in turn endanger life or cause electrical shock to the operator.
3) Circuit breaker or mains switch must be installed between power source and supply terminal to
facilitate power 'ON' or 'OFF' function. However this mains switch or circuit breaker must be
installed at convenient place normally accessible to the operator.
4) Use and store the instrument within the specified ambient temperature and humidity ranges as
mentioned in this manual.
Mechanical Installation
E F
C
B
UTC 3203
°C °C
1 2 3 4
R1
R2 1 2 3 4
R3
A
D
ENT
MODEL A B C D E F
96mm 48mm 44mm 92mm 6mm 85mm
DIMENSIONS
1) Prepare the panel cutout with proper dimensions as show above.
2) Fit the unit into the panel with the help of clamp given.
3) The equipment in its installed state must not come in close proximity to any heating source,
caustic vapors, oils steam, or other unwanted process by products.
4) Use the specified size of crimp terminal (M3.5 screws) to wire the terminal block. Tightening the
screws on the terminal block using the tightening torque of the range of 1.2 N.m.
5) Do not connect anything to unused terminals.
Maintenance
1) The equipment should be cleaned regularly to avoid blockage of ventilating parts.
2) Clean the equipment with a clean soft cloth. Do not use isopropyl alcohol or any
other cleaning agent.
3) Fusible resistor must not be replaced by operator.
Product improvement and upgrade is a constant procedure. So for more updated operating information and support,
Please contact our helpline : +91-9978991474/76/82 or Email at marketing@multispanindia.com
UTC-3203
2
Ω max per line)and no resistance
60mm - 2.36 inches
Page - 2 www.multispanindia.com
Ver: 06-2017
