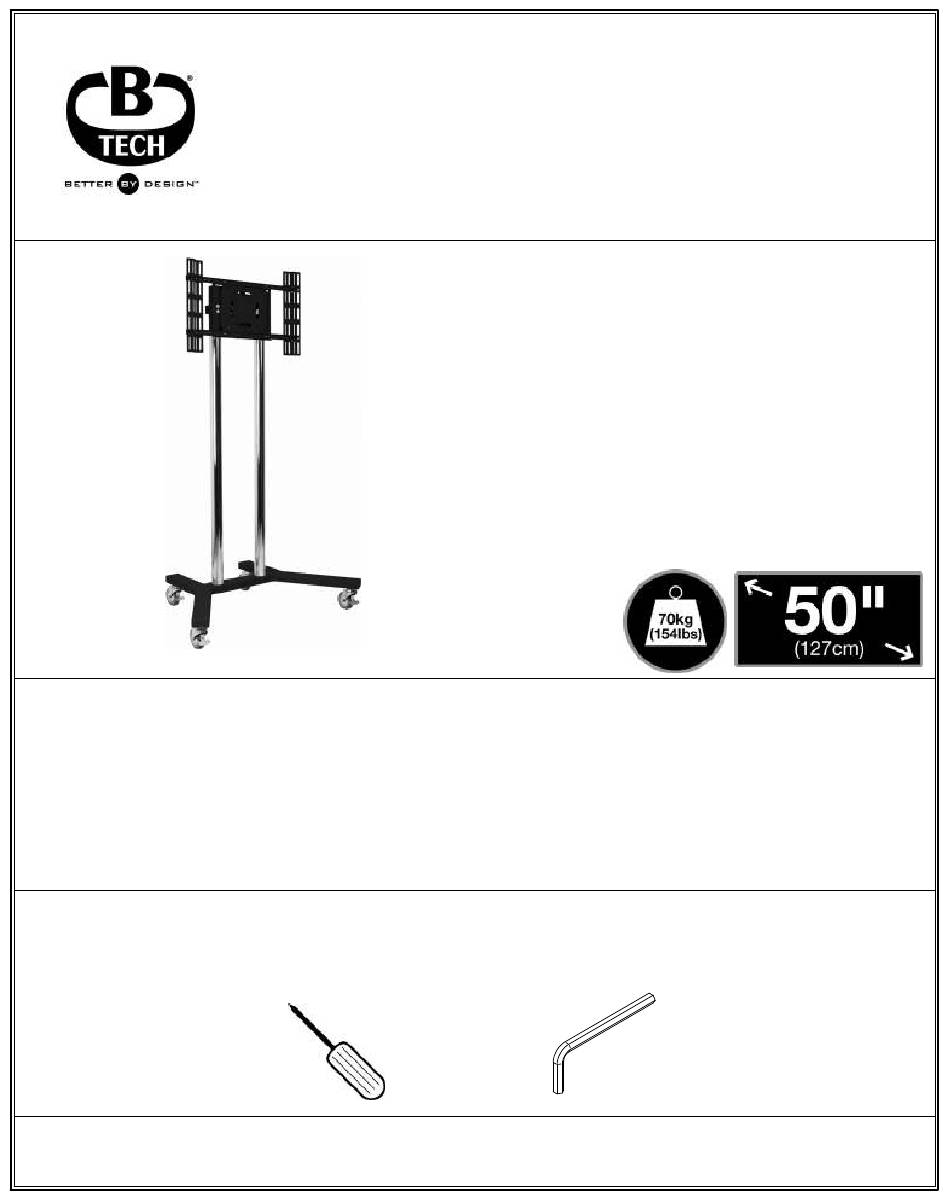

BT8504
LARGE FLAT SCREEN TROLLEY / STAND
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Trolley / Stand
PLEASE KEEP THIS FOR FUTURE REFERENCE
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Safety Instructions...................................................................................................................................6
Installation Instructions.......................................................................................................................7
Optional Accessories.............................................................................................................................17
Product Dimensions..........................................................................................................................18
B-Tech Contact Details.....................................................................................................................20
INSTALLATION TOOLS REQUIRED
B-TECH AUDIO VIDEO MOUNTS
FEATURES
● Designed for flat screens up to
● Fits screens with VESA and Non-VESA patterns
● Supplied with both trolley feet and wheels
● Mounts screen in landscape or portrait style
CONTENTS
Crosshead
screwdriver
www.btechavmounts.com
50" (127cm) / 70kg (154lbs)
up to 755mm x 410mm
Hex Keys
(Supplied)
Advertisement
Related Manuals for B-Tech BT8504
Summary of Contents for B-Tech BT8504
-
Page 1: Table Of Contents
● Supplied with both trolley feet and wheels ● Mounts screen in landscape or portrait style CONTENTS Installation Safety Notes........................2 Parts List.............................4 Safety Instructions...........................6 Installation Instructions........................7 Optional Accessories..........................17 Product Dimensions..........................18 B-Tech Contact Details........................20 INSTALLATION TOOLS REQUIRED Hex Keys Crosshead (Supplied) screwdriver B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. - Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
-
Page 4: Parts List
BT8504 PARTS LIST Suitable for loads up to 70kg (154lbs) - Page 5 PART NAME FLAT SCREEN INTERFACE KIT TROLLEY BASE (FOR ATTACHING MOUNT TO WHEEL BACK OF FLAT SCREEN) LEVELLING FOOT BASE END CAP M16 x 60 HEX BOLT 1.5m POLE COLLAR M10 x 20mm GRUB SCREW MOUNTING PLATE M8 SPRING WASHER M8 x 12mm SCREW COLLAR COVER POLE END CAP...
-
Page 6: Safety Instructions
WARNING CAN TIP OVER WHICH MAY LEAD TO SERIOUS INJURY. DO NOT ALLOW CHILDREN UNDER 16 TO MOVE TROLLEY. MOVE TROLLEY SLOWLY ALWAYS APPLY BRAKES WHEN NEVER LEAVE TROLLEY ON TROLLEY IS STATIONARY AN INCLINE. RELEASE BRAKES WHEN PUSHING ALWAYS PARK ON LEVEL GROUND TROLLEY. -
Page 7: Installation Instructions
PRODUCT ASSEMBLY For mobile application select the braked wheels. For fixed installation select the levelling feet. i. Fix the levelling feet to the trolley. ii. Screw the wheels to the trolley. LOCK WHEELS PRIOR TO INSTALLATION... - Page 8 Attach the poles to the trolley base. Fix the collars to the mounting plate.
- Page 9 Fix collars and mounting plate to the poles. i. Slide the collars and mounting plate onto the poles ii. F ix at desired height by tightening parts 8.
- Page 10 SCREEN MOUNTING INSTRUCTIONS There are two methods of attaching the mount to the screen, depending on the screen fixing pattern. A) VESA Fixings: 75 x 75mm, 100 x 100mm, 200 x 100mm or 200 x 200mm (page 10) B) VESA Fixings: 300 x 200mm, 400 x 200mm, 300 x 300m, 400 x 300mm, 400 x 400mm or 600 x 400mm and non-VESA up to 755 x 410mm (page 11) Attach the interface to the back of the screen.
- Page 11 B) For VESA patterns from 300 x 200mm up to 600 x 400mm and non-VESA patterns; i. Attach the cross rails to the interface plate. ii. Slide on the interface arms.
- Page 12 iii. Fix the interface arms to the cross rail assembly. FLAT SCREEN FOR SCREENS WITH RECESS FIXINGS Put required screw into the relevant hole / slot. SCREW INTERFACE WASHER SPACER FLAT SCREEN RECESS...
- Page 13 iv. Fix the interface arms to the cross rails. FLAT SCREEN...
- Page 14 Attach flat screen (in landscape or portrait). i. Hook on flat screen WARNING: Lock wheels before hooking flat screen on. FLAT SCREEN...
- Page 15 ii. Secure in place using parts 14 and 18.
- Page 16 Attach the collar covers (parts 12), pole end caps (parts 13) and base ends caps (parts 4) to trolley / stand.
-
Page 17: Optional Accessories
OPTIONAL ACCESSORIES BT7162 BT7163 BT7163 BT7161 BT7163 BT8504... -
Page 18: Product Dimensions
2.4" 1046mm 711mm 41.2" 28" TROLLEY BASE 560mm 22" 480mm 18.9" 276mm 10.9" 930mm 36.6" 1046mm 41.2" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. - Page 19 755mm 29.7" 782mm 30.8" VESA INTERFACE PLATE 200mm 7.9" 150mm 5.9" 100mm 3.9" 75mm 3" 280mm 11" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
-
Page 20: B-Tech Contact Details
©2010 Bennett Technologies Limited. All rights reserved. B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech, Better By Design and Mountlogic are registered trademarks of Bennett Technologies Limited. All other brands and product names are trademarks of their respective owners.
