BT8505

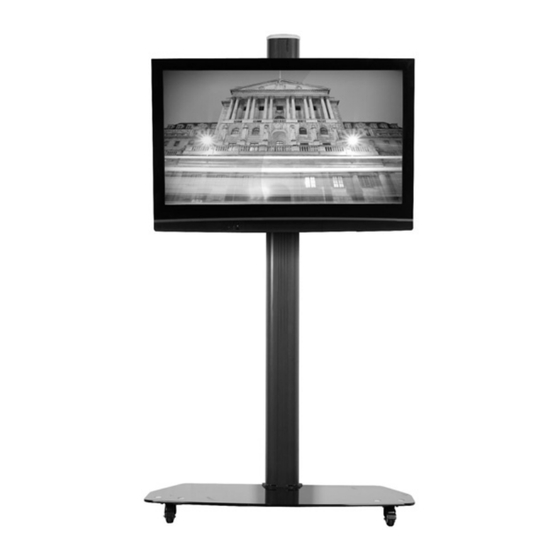

FLAT SCREEN DISPLAY TROLLEY
WITH GLASS BASE
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Trolley
PLEASE KEEP THIS FOR FUTURE REFERENCE
CAUTION!! GLASS
This item contains glass -
Handle with care to avoid
damage or injury
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Safety Instructions...................................................................................................................................6
Installation Instructions.......................................................................................................................7
Product Dimensions..........................................................................................................................15
B-Tech Contact Details.....................................................................................................................16
INSTALLATION TOOLS REQUIRED
B-TECH AUDIO VIDEO MOUNTS
FEATURES
●
●
●
●
●
CONTENTS
Crosshead
screwdriver
www.btechavmounts.com
Designed for flat screens up to
50" (127cm) / 40kg (88lbs)
Suitable for VESA & Non-VESA patterns up to
755mm (29.7") x 410mm (16.1")
Cable management
10mm (0.4") tempered safety glass base
Meets British Standard BS6206
Hex Key's
(Supplied)
