BT8567
UNIVERSAL

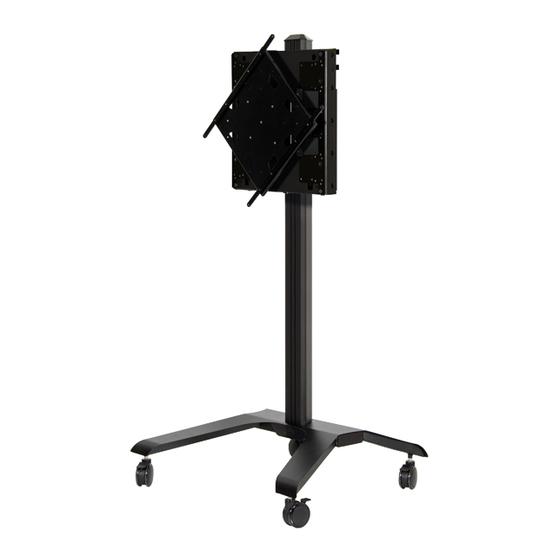

flat screen Display Trolley
with height ADJUSTMENT & flip rotation
INSTALLATION GUIDE
SPECIFICATIONS
• Recommended for screens up to 70"
• Max load:
BT8567-01 20kg - 50kg (44lbs -110lbs)
BT8567-02 51kg - 70kg (111lbs -154lbs)
• Suitable for displays with VESA
up to 600 x 400mm
• Tool-less height adjustment of screen
• Tool-less rotation of screen - change orientation of
screen from landscape to portrait (or vice-versa)
• Non-marking locking / braked castors included
• Dimensions: H.1905mm W.1075mm D.863mm
®
fixings
www.btechavmounts.com
BT8567-01
BT8567-02
50kg
Advertisement
Related Manuals for B-Tech AV Mounts BT8567-01
Summary of Contents for B-Tech AV Mounts BT8567-01
- Page 1 BT8567 UNIVERSAL flat screen Display Trolley with height ADJUSTMENT & flip rotation INSTALLATION GUIDE SPECIFICATIONS • Recommended for screens up to 70" • Max load: BT8567-01 20kg - 50kg (44lbs -110lbs) BT8567-02 51kg - 70kg (111lbs -154lbs) BT8567-01 BT8567-02 • Suitable for displays with VESA ®...
- Page 2 Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
- Page 3 A B-Tech AV Mounts recomenda que a instalação deste produto seja efectuada por um instalador de AV instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech AV Mounts e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
- Page 4 BT8567 PARTS LIST PLEASE KEEP THIS FOR FUTURE REFERENCE...
- Page 5 PART NAME BASE CASTOR COLUMN MOUNTING BAR BALANCE BOX BALANCE BOX COVER ADAPTOR PLATES MOUNTING PLATE INTERFACE PLATE VESA 600 ADAPTORS TRIM COLUMN CAP COLUMN REAR COVER COLUMN STRIP M8 x 12mm CSK SCREW M8 x 16mm CSK SCREW M8 x 35mm CSK SCREW M8 x 8mm SCREW M8 x 10mm SCREW M8 x 16mm SCREW...
- Page 6 INSTALLATION INSTRUCTIONS FIX CASTORS TO BASE Screw 4 x item 2 into item 1 and apply the brakes. ATTACH COLUMN TO BASE Stand item 1 in its upright position. Insert item 3 into the cut out in item 1. Screw 4 x item 17 through the underside of item 1 into item 3. M8 x 35mm...
- Page 7 ATTACH MOUNTING BARS TO COLUMN i. Slide 8 x item 25 into the front slots of item 3. ii. Attach item 4 to item 3 using 4 x item 19 fastening into item 25. Mount one item 4 approx 10mm from the top of item 3 and the other item 4, 433mm below.
- Page 8 INSERT BALANCE BOX REAR COVER Insert item 5 into the slots on the left and right side of item 6. TOP VIEW SLOT Rear of item 6 SLOT HOOK ON BALANCE BOX Hook item 6 onto item 21 using the keyhole fixings on the rear of item 6. KEYHOLE...
- Page 9 LEVEL BALANCE BOX Using a crosshead screwdriver and a spirit level, adjust the levelling screws on the front of item 6 until the balance box is level. LEVELLING SCREW LEVEL FIX BALANCE BOX Fix item 6 to the bottom item 4 using item 22. Insert item 22 through these holes .
- Page 10 FIX ADAPTOR PLATES Attach 2 x item 7 to item 6 using item 16. M8 x 16mm FIX MOUNTING PLATE Fix item 8 onto item 7 using items 18 & 24. There are 3 height options for mounting item 8. M8 x 8mm Use holes as shown below.
- Page 11 FIXING INTERFACE TO SCREEN Fix item 9 to the back of the screen using the interface kit (items A-N). Note: Ensure item 9 is positioned the correct way round. Preset at 0° for a clockwise screen rotation SCREEN Spacers (items J, K, L) are to be used for screens with recessed fixings.
- Page 12 LOCK ANGLE (OPTIONAL) If the installation requires the screen to be locked in position, set the angle on the rotation plate before attaching item 9 to the screen. Use a 13mm spanner to fully tighten all the M8 Nuts on item 9, preventing any further rotation.
- Page 13 SECURE SCREEN TO MOUNTING PLATE Insert items 20 & 23 into items 8 & 9 and set tilt (if required). Do not fully tighten until the tilt is set. 0 to 4.5 M8 x 16mm SCREEN SCREEN BALANCE SCREEN TO ENABLE HEIGHT ADJUSTMENT To balance the screen use a drill driver at low torque setting and a 10mm socket.
- Page 14 ATTACH PLASTIC COVERS i. Fit item 11 to the front and rear of item 1. ii. Attach item 13 to the rear of item 3. SCREEN iii. Fit item 12 to the top of item 3. INSERT COLUMN STRIPS Insert item 14 into the front slots on item 3. Note: Item 14 will need to be cut to size.
- Page 15 CABLE MANAGEMENT Route cables through item 13 and out of the bottom of item 1. Allow enough slack on cable for the movement of the screen CABLE...
- Page 16 ADJUSTING THE HEIGHT OF THE DISPLAY Use both hands to gently move the screen up and down. Note: Downward height adjustment range: 400mm Move up and down with both hands Important: Allow enough slack on cable for the movement of the screen...
- Page 17 ROTATING THE DISPLAY Use both hands to gently rotate the screen. Rotate with both hands IMPORTANT : Ensure there is enough slack in any cables connected to the screen to move with the adjustment...
- Page 18 PLEASE KEEP THIS FOR FUTURE REFERENCE 600mm 400mm FRONT VIEW 300mm 8.2mm 8.5mm 122mm HEIGHT OPTIONS Minimum Height Maximum Height THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
- Page 19 181.9mm 572mm 81.5mm 30mm 111.2mm 481.9mm 269.9mm TOP VIEW TILT 869.2mm 0 - 4.5° 64.5mm 98.2mm 1074.4mm THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
- Page 20 ©2019 B-Tech International Design & Manufacturing Ltd. All rights reserved. B-Tech AV Mounts is a division of B-Tech International Design & Manufacturing Ltd. B-Tech AV Mounts and the B-Tech logo are registered trade marks. All other brands and product names are trademarks of their respective owners.
