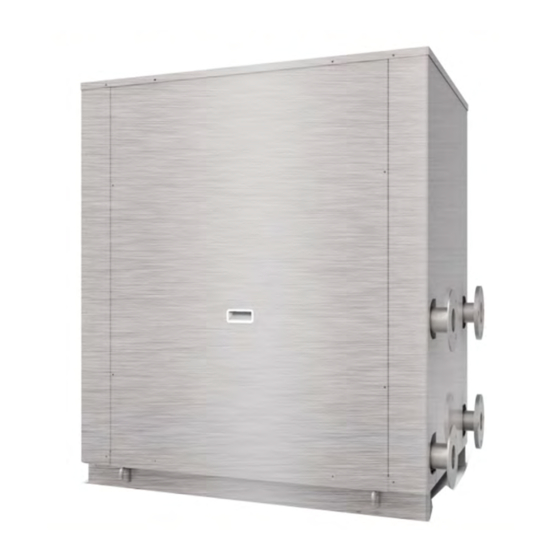

Summary of Contents for evoheat EVO ULTRA 32
-
Page 2: Table Of Contents
Evo Ultra Manual Contents 1. Introduction _________________________________________________________________________________ 2 2. Unit Specifications ____________________________________________________________________________ 3 2.1 Dimensions _______________________________________________________________________________ 3 2.2 Operational Principle _______________________________________________________________________ 4 2.3 Technical Data ____________________________________________________________________________ 5 3. Safety Instructions ____________________________________________________________________________ 6 4. Installation __________________________________________________________________________________ 7 4.1 Installation Notes __________________________________________________________________________ 7 4.2 Transit __________________________________________________________________________________ 7 4.3 Water Pipeline Connection __________________________________________________________________ 7 4.4 Power Supply Connection ___________________________________________________________________ 8... -
Page 3: Introduction
Evo Ultra Manual 1. Introduction This manual contains all the necessary information in regard to the installation, troubleshooting, operation and maintenance of this unit. Ensure instructions in this manual are adhered to at all times. Failing to comply with these recommendations will invalidate the warranty. -
Page 4: Unit Specifications
Evo Ultra Manual 2. Unit Specifications 2.1 Dimensions EVO ULTRA 32 EVO ULTRA 64... -
Page 5: Operational Principle
Evo Ultra Manual EVO ULTRA 129 2.2 Operational Principle According to Reverse Carnot Cycle theory and the same process as normal water source heat pump units, The Evo Ultra absorbs heat from soil and transfers the heat to water as the soil temperature is generally stable, i.e., the heat source is stable, the units work capability will not change with the ambient temperature. -
Page 6: Technical Data
Evo Ultra Manual 2.3 Technical Data Model Evo Ultra Heating Heating Capacity 32.3 kcal/h 27810 55900 111000 Cooling Capacity 19.8 kcal/h 17048 34400 68000 Input Power Input Current 18.2 35.2 Power 380V/3N~/50Hz 380V/3N~/50Hz 380V/3N~/50Hz Supply Compressor Type EVI Scroll EVI Scroll EVI Scroll Quantity Heat Source... -
Page 7: Safety Instructions
Evo Ultra Manual 3. Safety Instructions • Installation, repair or relocations must be done by a fully qualified person and not by the customer. If done incorrectly it may cause fire, electric shock, water leakage and other hazards. • Maintenance and operation must be carried out according to the recommended time and frequencies, as stated in this manual. -
Page 8: Installation
Evo Ultra Manual 4. Installation 4.1 Installation Notes • Choose the right product model according to climate, architecture and insulation situation. • Read the product user guide before installation and clearly understand what each label means. Please install, test and maintain the units according to the user guide. •... -
Page 9: Power Supply Connection
Evo Ultra Manual Drain out the water in the pipeline when you will not use the units for a long time in case of freezing. Do not change the set return water temperature and water tank insulation temperature. Thermometer and water pressure gauge should be equipped at the units water inlet and outlet port for checking. User side water should be tap water and the hardness should be less than 20. -
Page 10: Operation
Evo Ultra Manual 5. Operation 5.1 Main Controller Interface Button Name Function Press this button to start up/shut off the unit, cancel current operation or go back to ON/OFF previous interface. HELP Press this button to check button function of system state. MODE Press this button to change the current mode, page up or confirm current operation. -
Page 11: Switching Modes
Evo Ultra Manual 5.2.3 Switching Modes At the main interface, you can switch between the modes of cooling, economic heating, heating & rapid heating by pressing . Example: Switch from Cooling mode to Economic Heating Note: The operation of mode is invalid if the unit you purchase is heating only or cooling only. 5.2.4 System State Checking At any interface you can enter the system working state by pressing TWICE, then using the UP and Down arrow... -
Page 12: Timer Settings
Evo Ultra Manual 5.2.7 Timer Settings Four timer periods can be set according to your needs. From the main interface, press to enter the timer setting, press DOWN to select Timer, then press to enter the timer setting interface. The process is much the same as adjusting the Clock settings. To cancel and return to the previous menu, press the ON/OFF button. -
Page 13: Keyboard Lock
Evo Ultra Manual 5.2.7.2 Daily Timer The Daily Timer allows you to apply your timers to particular days of the week. • OFF means that the unit will not run on that day. • ON means the system will be running for a whole day. •... -
Page 14: Troubleshooting
Evo Ultra Manual 6. Troubleshooting 6.1 Fault Table Malfunction Display Reason Resolution Power On Normal Working Inlet temp. sensor The temp. sensor is short Check or change the temp failure circuit or broken sensor Outlet temp. sensor The temp. sensor is short Check or change the temp failure circuit or broken... -
Page 15: Bhb10 Fault Table
Evo Ultra Manual 6.2 BHB10 Fault Table Malfunction Display Cause Solution System 1 exhaust temp. failure P181 The sensor is open or short Check or change the sensor circuited System 2 exhaust temp. failure P281 The sensor is open or short Check or change the sensor circuited Ambient temp. -
Page 16: Possible Failures & Solutions
Evo Ultra Manual 6.3 Possible Failures & Solutions Failure Possible Causes for the Failure Solutions Heat pump cannot be Wrong power supply Shut off the power and check power supply started Power supply cable loose Check power cable and make right connection Circuit breaker open Check for the cause and replace the fuse or... -
Page 17: Appendix
Evo Ultra Manual 7. Appendix 7.1 Parameter List Meaning Default Remarks Set-point of cooling target temp. Adjustable Set-point of heating target temp. 60°C Adjustable Set-point of auto mode target temp. 27°C Adjustable 7.2 Cable Specifications Single Phase Unit Nameplate max. Phase Line GND Line Breaker... -
Page 18: Pcb Connection
Evo Ultra Manual 7.3 PCB Connection Meaning Meaning AC-L Live line 22 DI 08 Electric heater overload protection input AN-N Null line 23 DI 09 COMP 1 overload protection switch input RO 01 Compressor 1 output (220VAC) 24 DI 10 COMP 2 overload protection switch input RO 02 Compressor 2 output (220VAC) - Page 19 Evo Ultra Manual Symbol Meaning RO01 System 1 magnetic valve outlet (220-230VAC) RO02 System 2 magnetic valve outlet (220-230VAC) RO03 System 1 alert outlet (220-230VAC) RO04 System 2 alert outlet (220-230VAC) CC01 System 1 magnetic valve inlet (220-230VAC) CC02 System 2 magnetic valve inlet (220-230VAC) CC03 System 1 alert inlet (220-230VAC) CC04...
-
Page 20: Automatic Water Filling Valve
Evo Ultra Manual 7.4 Automatic Water Filling Valve When the automatic filled-water valve is installed, the arrowhead orientation of inlet water must accord with the orientation of the valve. Automatic filled-water has been adjusted in advance to 1.5ba. If readjusting the pressure of inlet water, operate as follows: •... -
Page 21: Maintenance
If you want to start the unit again, fill water to the system and conduct a complete inspection before start-up. If you are not using the unit continuously, please do not turn off the power in case of spare parts freezing. EvoHeat will not take any responsibility if any damage occurs because of this mis-operation. -
Page 22: Warranty
Warranty Registration EvoHeat highly recommend customers to complete their warranty details online to ensure efficient warranty claim processing. To register your warranty, scan our QR Code or head to our website and fill in the Warranty Registration Form: https://evoheat.com.au/warranty-registration/...
