EvoHeat Advanced DHP-R Manual Contents 1. Introduction _________________________________________________________________________________________ 2 2. Unit Dimensions ______________________________________________________________________________________ 3 3. Quick Start Guide _____________________________________________________________________________________ 4 4. Safety Instructions ____________________________________________________________________________________ 6 5. Installation __________________________________________________________________________________________ 6 5.1 Installation Introduction _____________________________________________________________________________ 6 5.2 Heater Condition __________________________________________________________________________________ 7 5.3 Location Recommendations __________________________________________________________________________ 7 5.4 Airflow Clearances _________________________________________________________________________________ 8... -
Page 3: Introduction

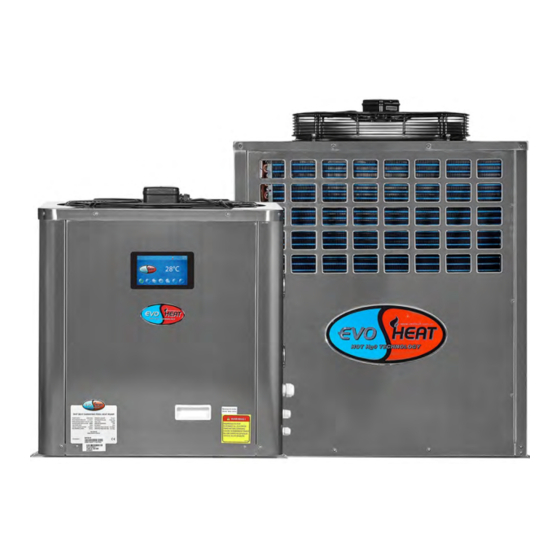

EvoHeat Advanced DHP-R Manual 1. Introduction This manual contains all the necessary information in regard to the installation, troubleshooting, operation and maintenance of this unit. Ensure instructions in this manual are adhered to at all times. Failing to comply with these recommendations will invalidate the warranty. -
Page 4: Unit Dimensions
EvoHeat Advanced DHP-R Manual 2. Unit Dimensions DHP-20R, DHP-30R, DHP-40R & DHP-50R Size (mm) DHP-20R & DHP-30R Φ40 DHP-40R & DHP-50R Φ40 DHP-603R... -
Page 5: Quick Start Guide
EvoHeat Advanced DHP-R Manual 3. Quick Start Guide IMPORTANT THINGS TO NOTE • Ensure you meet the minimum clearances and recommended installation locations as outlined in the manual. • All heat pump accessories are contained in a plastic bag inside the packaging of your heat pump unit. - Page 6 1. Turn on your water filter pump. 2. Check for water leaks and verify flow to and from the pool. 3. Turn on the electrical power supply to the EvoHeat unit. 4. Press the ON/OFF button of the controller to be green for on (off is white), it will start within 60 seconds 5.
-
Page 7: Safety Instructions
EvoHeat Advanced DHP-R Manual 4. Safety Instructions • Installation, repair or relocations must be done by a fully qualified person and not by the customer. If done incorrectly it may cause fire, electric shock, water leakage and other hazards. •... -
Page 8: Heater Condition
The Evo pool heat pump should be installed with a minimum clearance of at least 3.5m to the water’s edge. Furthermore, EvoHeat recommend installing the heat pump no greater than 7.5 meters away from the water’s edge due to heat loss from the piping. -
Page 9: Airflow Clearances
It is CRITICAL that there is sufficient water flow to the unit. Incorrect water flow can cause a loss of efficiency and possible damage to the unit. Optimal water flow rates are listed in the EvoHeat manual. It is imperative that water flow is kept as close as possible to these flow rates. -
Page 10: Rubber Feet
5.6 Rubber Feet All EvoHeat units are provided with rubber feet which EvoHeat highly recommend being installed. The rubber feet help reduce vibration of the unit and help provide a space below the heat pump to install the drainage barbs. -
Page 11: Electrical Connection
Correct phase connection is important with 3 phase heaters. NOTE: if 2 lights are showing on the 3 PHASE relay monitor this means the EvoHeat heat pump has been wired correctly (one orange light and one green light). If only one light is showing, the phases are out of rotation and need to be rotated to get the correct phase rotation. -
Page 12: Operation
EvoHeat Advanced DHP-R Manual 6. Operation 6.1 Main Controller Interface Number Name Button Function ON/OFF Press to turn the unit on or off. Parameter Press to view the unit state and the parameter. Press to set the clock, the timer on or off. When the timer is in use, the CLOCK button will be green. -
Page 13: Clock Settings
EvoHeat Advanced DHP-R Manual 6.2.3 Clock Settings After clicking the Clock button, a menu will appear where you can choose to adjust either Time or Timer settings. Setting the Date & Time Click the value you wish to change to set the time directly. Press confirm to save the settings. -
Page 14: Fault History
EvoHeat Advanced DHP-R Manual DHP-40R & 50-R ONLY: Pressing the alarm clock symbol will display the screen shown above on the right. Name Colour Function Timing silent off Used: Red Click to use or unused timing off function Unused: Grey... -
Page 15: Troubleshooting
7. Troubleshooting EvoHeat have developed a YouTube Channel where you will find useful videos - from setting up your timers to setting up the EvoHeat app. View it to see resolutions to some of our most asked, yet easily solved questions: https://www.youtube.com/playlist?list=PLBPkftdZuJSomS6azITYhDJS_manmjpTs... -
Page 16: Frequency Conversion Board Fault Table
EvoHeat Advanced DHP-R Manual 7.1.2 Frequency Conversion Board Fault Table Protection/fault Fault Reason Elimination Methods Display Drv1 MOP alarm MOP drive alarm Recovery after the 150S Inverter offline Frequency conversion board and main board Check the communication connection communication failure... -
Page 17: Parameter List
EvoHeat Advanced DHP-R Manual 7.1.3 Parameter List Meaning Default Remarks Refrigeration target temperature set point 27°C Adjustable Heating the target temperature set point 27°C Adjustable Automatic target temperature set point 27°C Adjustable 7.2 Interface Drawing 7.2.1 Wire Control Interface Diagram and Definition... -
Page 18: Appendix
EvoHeat Advanced DHP-R Manual 8. Appendix 8.1 Controller Interface Diagram & Definition Sign Meaning OUT1 Compressor (output 220-230VAC) OUT2 Water pump (output 220-230VAC) OUT3 4-way valve (output 220-230VAC) OUT4 High speed of fan (output 220-230VAC) OUT5 Low speed of fan (output 220-230VAC) -
Page 19: Pcb Description
EvoHeat Advanced DHP-R Manual 8.2 PCB Description... -
Page 20: Cable Specifications
EvoHeat Advanced DHP-R Manual 8.3 Cable Specifications Single Phase Unit Nameplate maximum Phase line Earth line Creepage Protector Signal Line current No more than 10A 2 x 1.5mm 1.5mm 30mA less than 0.1 sec 10~16A 2 x 2.5mm 2.5mm 30mA less than 0.1 sec... -
Page 21: Maintenance
Do I need to get my unit serviced? It is recommended that you get your EvoHeat unit serviced once a year by your local certified air conditioning or refrigeration technician. If your unit is located in a coastal area, more frequent maintenance may be necessary. -
Page 22: Warranty
10.1 Warranty Registration EvoHeat highly recommend customers to complete their warranty details online to ensure efficient warranty claim processing. To register your warranty, scan our QR Code or head to our website and fill in the Warranty Registration Form: https://evoheat.com.au/warranty-registration/...
