Instructions
for Use
Sterling Range
03-1002-IFU-EN | ISSUE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sterling Series and is the answer not in the manual?

Questions and answers

Related Manuals for Seers Medical Sterling Series

Summary of Contents for Seers Medical Sterling Series

  • Page 1 Instructions for Use Sterling Range 03-1002-IFU-EN | ISSUE 1...
  • Page 2 WARNING To avoid injury, always read this Instructions for Use and accompanied documents before using the product. Mandatory to read the Instructions for Use...

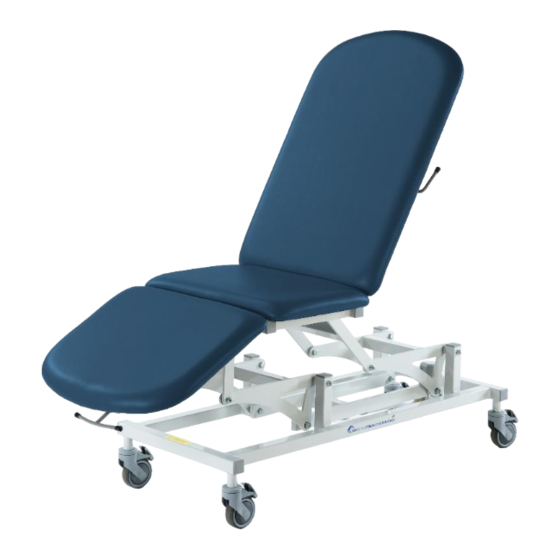

  • Page 3 This Instructions for Use document applies to the following products: Sterling Changing Table SX1047, SX1057 Sterling 2 Section Couch SX2007 Sterling 3 Section Couch SX3008...
  • Page 4 INDEX 1. General Information – Intended Use, Warnings & Cautions 2. How to Use a) Wheel System - Independently Braking Castors b) Adjusting the Height of the Couch c) Adjusting the backrest & footrest d) Side Supports & Rails Paper Roll Holder 3.

  • Page 5: Intended Use

    CONGRATULATIONS on the purchase of your new SEERS MEDICAL product. If these operating instructions are adhered to, the product will provide many years of safe use. If these operating instructions are not followed, your warranty could be invalid! Always keep these Instructions for Use available for reference.
  • Page 6 WARNINGS! Warnings identify potential hazards which if not followed correctly, could result in serious injury, or possibly death! • Ensure electric couches are not used in the presence of flammable gasses such as an anaesthetic agent. • DO NOT EXCEED the Maximum Safe Working Load of the product. •...
  • Page 7 How To Use Wheel System - Independently Braking Castors Castor Unlocked Castor Locked WARNING! This Couch is not designed for patient transportation. Ensure wheels are retracted prior to patient transfer or treatment. Disconnect the electric lead prior to re-locating the couch, ensuring the lead is not trapped in the mechanism.
  • Page 8 Adjusting the Height of the Couch Electric Elevation (-1WH or -1WF) Hand Switch Foot Switch Raising the Couch • To elevate the couch, push the UP button on the hand or foot switch. • Once the desired height is achieved, release the button. •...
  • Page 9 Adjusting the backrest & footrest Gas Assisted Sections (SX2007 & SX3008) To raise the backrest, simply grasp the release lever towards the upholstery and adjust the backrest to the angle desired. Releasing the lever automatically locks the section at that angle. To lower, grasp the lever again, and lower the backrest to the required angle.
  • Page 10 d. Side Supports & Rails WARNING! Children must not play with the couch at any time. Adequately supervise children in the proximity of the couch. Ensure the Side Support Rails are Fully Engaged into Socket, prior to use. To Raise the side support rail, simply lift and rotate 180 degrees, and then engage fully into socket.

  • Page 11: Paper Roll Holder

    e. Paper Roll Holder To fit and change the paper towel, simply spring the frame outwards, and remove the tube. Place the towel roll onto the tube and refit into paper towel holder, by springing frame out gently. Releasing the frame once the tube is in place.

  • Page 12: Cleaning Instructions

    3. Cleaning Instructions WARNING! Disconnect the couch from the mains power supply prior to carrying out any cleaning or decontaminating. DO NOT SATURATE PRODUCT! IF THE PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. General Cleaning To get rid of any dust or marks on the surface the Faux Leather MUST be wiped DAILY with a moist soft cotton cloth.
  • Page 13 Stain Removal Blot excess liquid as quickly as possible with a clean 100% cotton white absorbent cloth or sponge. If necessary use clean warm water. Clean the entire area where the spot occurred on the cushion, arm etc. Water may dissolve dirt particles and make cleaning easier.
  • Page 14 Frequency of routine couch cleaning will depend on exact application. 1. Ensure the couch is in a suitable area for cleaning. 2. The couch must be OFF the wheels. 3. Disconnect from mains power supply if electric model. 4. Control handsets can be wiped over using an alcohol wipe. 5.

  • Page 15: Maintenance

    4. Maintenance WARNING! Disconnect the couch from the mains power supply prior to carrying out any maintenance. All electrical maintenance should be performed by a suitably qualified person. BLUE or BROWN wires must not be connected to any earth terminal. Actions to be done by clinician Daily Weekly...
  • Page 16 Actions to be done by qualified personnel Once a year • Carry out a full test of all electrical couch positioning functions (backrest, height, etc.) • Check operation of the backrest/footrest. Check gas struts operate smoothly and correctly throughout all ranges of movement.
  • Page 17 5. Warranty and Product Lifetime SEERS MEDICAL Limited standard terms and conditions apply to this device. A copy of this is available upon request. This contains full details of warranty terms and does not affect your statutory rights. For any further information on this product, regarding spares, warranty,...

  • Page 18: Troubleshooting

    6. Troubleshooting Fault Possible Cause Solution Electrical functions Mains cable has become Locate control box and see whether not working disconnected, either from the power light is illuminated and correctly the wall socket or the that the lead is connected at both control box ends.
  • Page 19 Mechanical faults Squeaking or An over tight pivot point Locate the noisy pivot point, then grinding noise either a bolt or pin is not slacken the securing nut by ¼ turn rotating freely. and lubricate until noise reduces. Wheels will not Couch is not on level floor Level couch by adjusting the raise or lower...
  • Page 20 Technical Data - Sterling 3 Section Couch Index / Model SX3008 Configuration Elevation Control Electric Backrest & Footrest Gas Assisted Wheel System Independently Braking Castors Min. Height 46cm Max. Height 99cm Length 194cm Head Length 60cm Mid Length Foot Length 91cm Width 63cm...
  • Page 21 Technical Data - Sterling Changing Table Index SX1047 SX1057 Configuration Elevation Control Electric Overall Length 152cm 184cm Width 63cm Minimum Height 46cm Maximum Height 99cm Safe Working Load & 200Kg Lifting Capacity Upholstery covering Mundial vinyl: 88% PVC, 12% cotton...

  • Page 22: Electrical Technical Data

    Electrical Technical Data Linak Ti-Motion Control Box 100 - 240V, 50/60Hz 100 - 240VAC, 50/60Hz, 2500mA Output 120W 32V, 128VA, Standby power 0.5W Duty Cycle 10% max, 2 min ON / 18 min OFF Mains Plug Fuse Rt 5.0A x 1- (UK) IP RATING IPX 6 washable...
  • Page 23 Symbols Safe working load Double Insulated (Class II) Alternating current (a.c.) Manufacturer Total weight of the Manufacturing date equipment including its safe working load Complies with the European Caution/Warning Regulatory affair Serial number Refer to instructions For Use Type B applied part. Model number Waste Electrical and Electronic Equipment...
  • Page 24 UNITED KINGDOM t: +44 (0)1728 861590 f: +44 (0)1728 861868 e: info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2023 Advena Limited. Tower Business Centre, 2 Flr. Tower Street, Swatar, BKR 4013 Malta. mark on this product demonstrates conformity with MDR...
