■ Active — Signal must go from INACTIVE then ACTIVE for the system to recog-
nize the input and respond accordingly.EX: OPEN > STOP > CLOSE > STOP >
OPEN >...

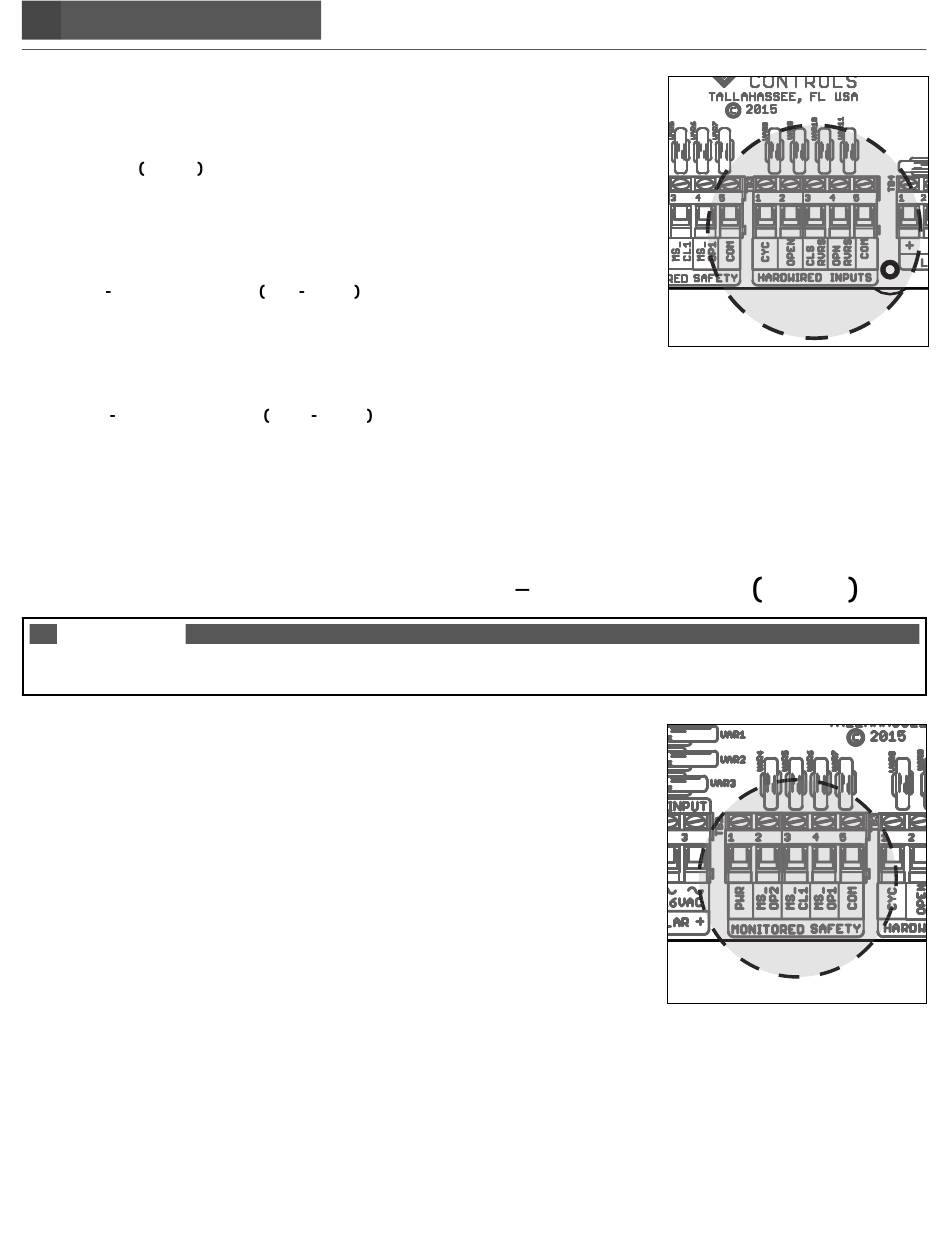

OPEN INPUT OPEN : Use this terminal for Ghost Controls Vehicle Detector
(AXXV).
Active — OPENS gate to full open limit and prevents it from closing,
if it remains active.
CLOSING REVERSE INPUT CLS RVRS : Use this terminal with photo eye
beams or safety edge.
■ Active — Prevents gate from CLOSING or reversing to open limit if it was
CLOSING.
OPENING REVERSE INPUT OPN RVRS : Use this terminal with photo eye beams or safety edge.
■ Active — Prevents gate from OPENING or reversing to close limit if it was OPENING.
MONITORED SAFETY DEVICES PHOTO EYES AXPE
NOTE
Please refer to manufacturers manual or website for more detailed instructions on how to connect and use accessories with
your gate opener.
TERMINALS TO USE FOR REVERSE OPENING:
■ PWR = Switched 12 Volts (+)
■ MS–OP1 = Photos beam's output for 1st arm open-direction protection
■ MS-OP2 = Photos beam's output for 2nd arm open-direction protection
■ COM = Battery
IF THE BEAM IS BLOCKED OR DEVICE IS DISCONNECTED
■ Gate can not be open if idle
■ Gate will reverse direction and run to the closed position if it was opening
TERMINALS TO USE FOR REVERSE CLOSING:
■ PWR = Switched 12 Volts (+)
■ MS-CL1 = Photos beam's output for close-direction protection
■ COM = BATTERY NEGATIVE
IF THE BEAM IS BLOCKED OR DEVICE IS DISCONNECTED
■ Gate can not be closed if idle
■ Gate will reverse direction and run to the open position if it was closing
