CONNECTING OPTIONAL
HARDWIRED ACCESSORIES
CONNECTING TO CONTROL BOARD
NOTE
Please refer to the manufacturers manual or website for more detailed instructions on how to connect and use accessories
from other manufacturers with your Ghost Controls

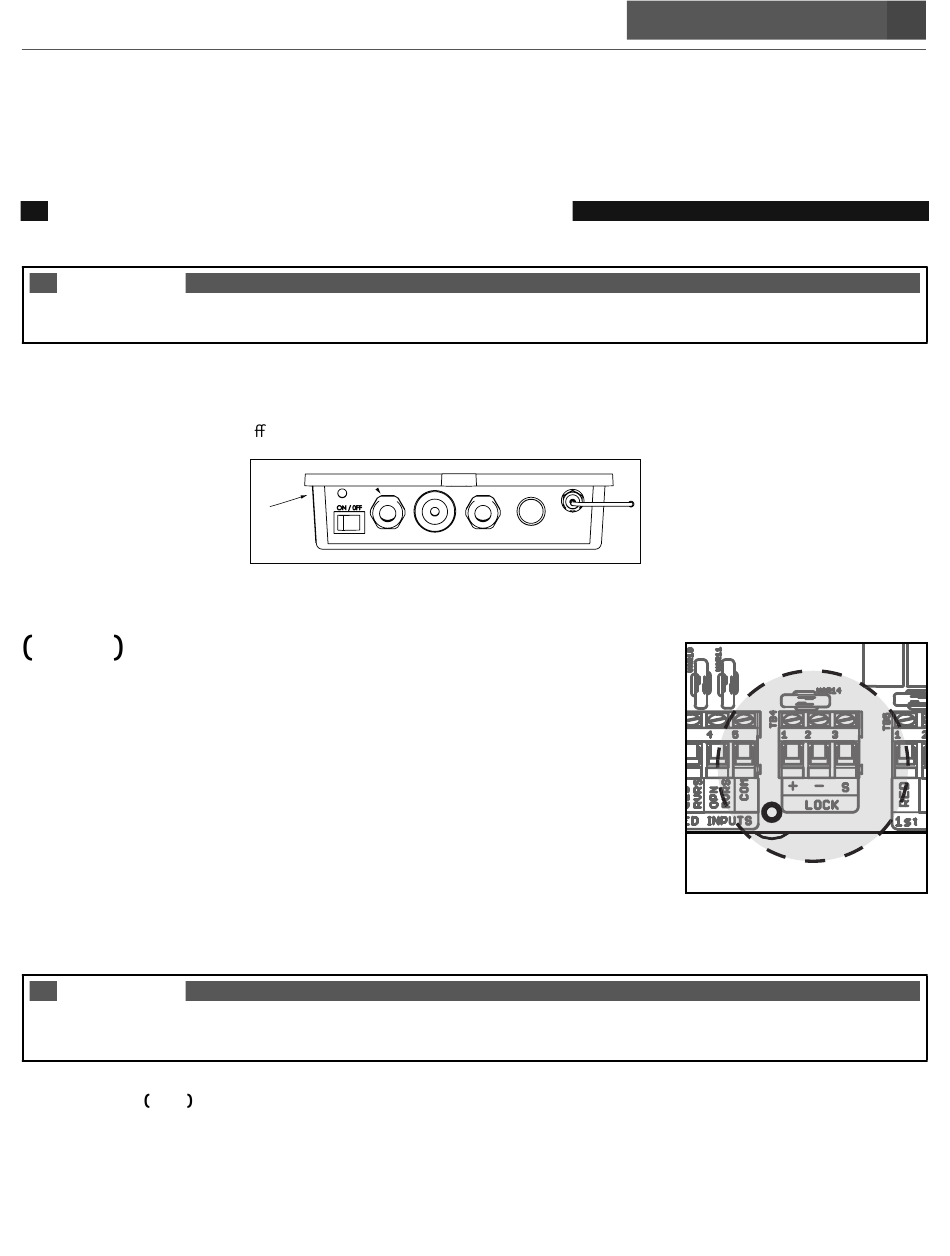

PREPARING CONTROL BOX FOR ACCESSORY WIRING
Make sure the power is turned o which is located on bottom of the control board before wiring.
CONNECTING GHOST CONTROLS ZOMBIE GATE LOCK
AXZL
■ ONLY ACCEPTS patented GHOST CONTROLS
feedback system.
■ Controller will automatically detect lock present and respond accordingly.
■ Lock (if present) will be pulled (unlocked) for the first few seconds while opening. If
lock is not completely pulled the gate will not open to prevent damaging to the gate
and lock.
■ Lock will also be pulled (unlocked) near the closed limit position as it is closing
to ensure a smooth and "soft" operation.
CONNECTING HARDWIRED DEVICES
Accepts " " input signals as control input.
DRY CONTACT
switches from short circuit to open circuit.
NOTE
INACTIVE — Opens circuit or has no connection.
ACTIVE — Input is shorted to COM or BATTERY NEGATIVE.
CYCLE INPUT CYC : Use this terminal for Ghost Controls Push Button (AXPB).
gate opener.
®
CLOSE-UP VIEW
OF BOTTOM OF
CONTROL BOX
AXZL Zombie Gate Lock with
®
DRY CONTACT
H A R D W I R E D A C C .
is passive (no power) such as a simple push button that
