CONNECTING THE AC TRANSFORMER
NOTE
DO NOT USE THE AC TRANSFORMER AND SOLAR POWER AT THE SAME TIME!
NOTE
TO COMPLETE STEP 21 YOU WILL NEED 16 GAUGE STRANDED, 2 CONDUCTOR LOW VOLTAGE WIRE.
STEP 21. Turn the system o . Route the AC transformer cable into the control box.
(See note above)

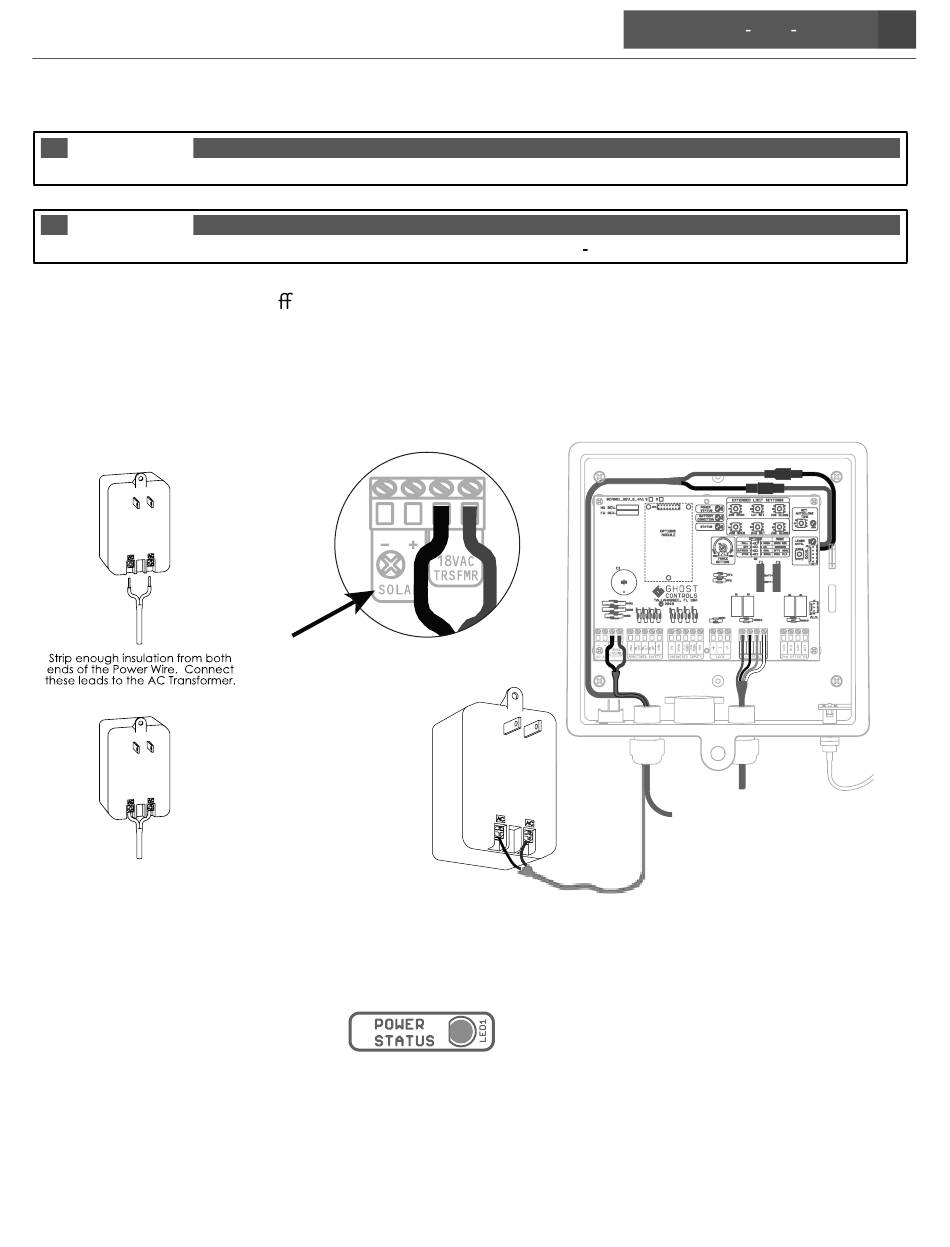

A . When wiring the AC Transformer you will need to insert the AC wires into the 18VAC TRSFMR SCREW
TERMINALS which are located on the PWR INPUT section of the main control board. Once inserted then
tighten each screw so that the wires do not come loose and fall out. The transformer is not polarity sensitive
so either wire can go to either transformer terminal. Do not plug in the transformer during this step.
DO NOT PLUG IN THE AC
TRANSFORMER DURING THIS STEP.
B. Plug in the AC Transformer to outdoor outlet. Make sure you connect AC Transformer wires to control board
prior to plugging in AC Transformer into weatherproof outdoor outlet.
C. Turn the system on. Check that green LED (Power status) on top center of control board is on. This indicates
that the battery is being charged.
Black
DO NOT USE this terminal
if using AC Transformer
Red
P U S H T O O P E N
Operator Arm
Battery Harness
