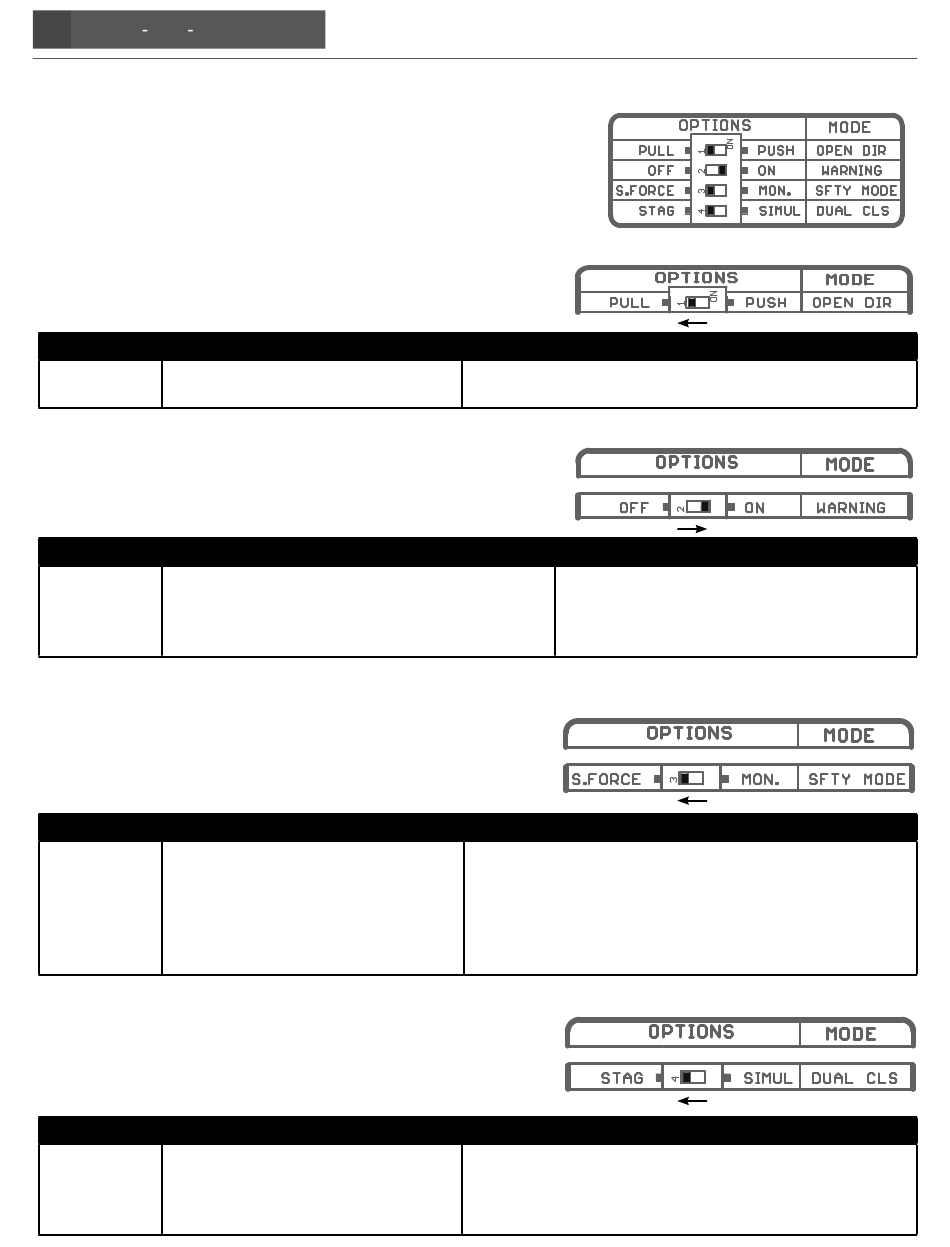

DIP SWITCH OPTION SETTINGS. There are four DIP Switches located on the main control board (shown) that must be
positioned properly for your particular installation
A . DIP #1 OPEN DIRECTION. The opening direction of the gate operator is determined by DIP#1.
DIP Switch # OFF Position
1 Pull-To-Open (Factory Default): Gate
is pulled to open into your property.
B. DIP #2 ALARM WARNING. The warning alarm is determined by DIP#2.
DIP Switch # OFF Position
2 Warning Disabled: AUTOCLOSE and initial gate
movement alarm warning is disabled. This does not
disable the alarm warning for consecutive obstruction
as required by UL325 safety standard.
C. DIP #3 MONITORED SAFETY DEVICES. Keep Switch To The Left (Factory Setting) Unless Using
Monitored External Safety Devices Then Switch To The Right.
YOUR SYSTEM WILL NOT WORK IF SAFTEY MODE IS ON
AND YOU DO NOT HAVE MONITORED EXTERNAL
SAFETY DEVICES CONNECTED.
DIP Switch # OFF Position (FACTORY SETTING) ON Position
3 Patent-pending SafeForce® Mode
(Factory Default): Force output is
limited to ensure safe operation as
specified by Type C in UL325
requirement.
D. DIP #4 DOES NOT APPLY TO SINGLE GATES.
DUAL (BI-PARTING) GATE OPENING SEQUENCE.
The gate opening sequence for dual gate opener systems
only is determined by DIP#4. The SECOND arm will
always CLOSE first before the FIRST arm.
DIP Switch # OFF Position (FACTORY SETTING)
4 Delay Open (Factory Default): FIRST
arm will open before the SECOND arm.
ON Position
Push-To-Open Installation: Gate is pushed to open away from
your property.
ON Position
Warning Enabled (Factory Default):
AUTOCLOSE and initial gate movement
warning is enabled.
Monitored Safety Mode: Monitored safety devices required /
Compatible GHOST CONTROLS
Monitored safety devices must be present and operate prop-
erly as specified by Type B1 or B2 in UL325 requirement. See
monitored safety device connection in the monitored photo
eye instructions manual for more details.
ON Position
Simultaneous Open: Both the FIRST arm and the SECOND
arm will simultaneously OPEN. If Gate Lock is installed,
the system will ignore this DIP switch setting and default to
delay open on the SECOND arm.
safety devices only.
®
